The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. We are the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

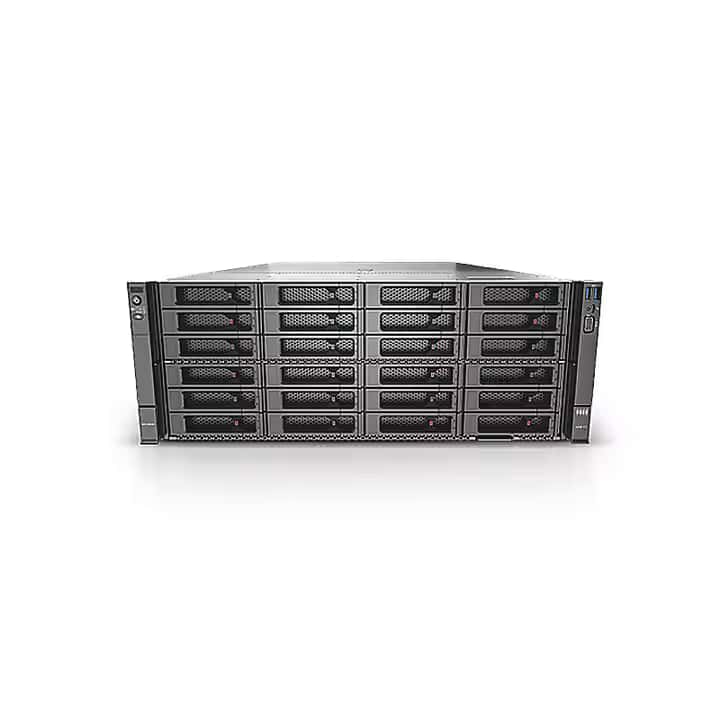

| Model | FusionServer 5288 V7 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 4U rack server |
| Processor | 1/2 fourth/fifth generation Intel ® xeon ® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors |
| Chipset | Emmitsburg PCH |
| Memory | 32 DDR5 memory slots available for flexible selection, up to 5600MT/s |

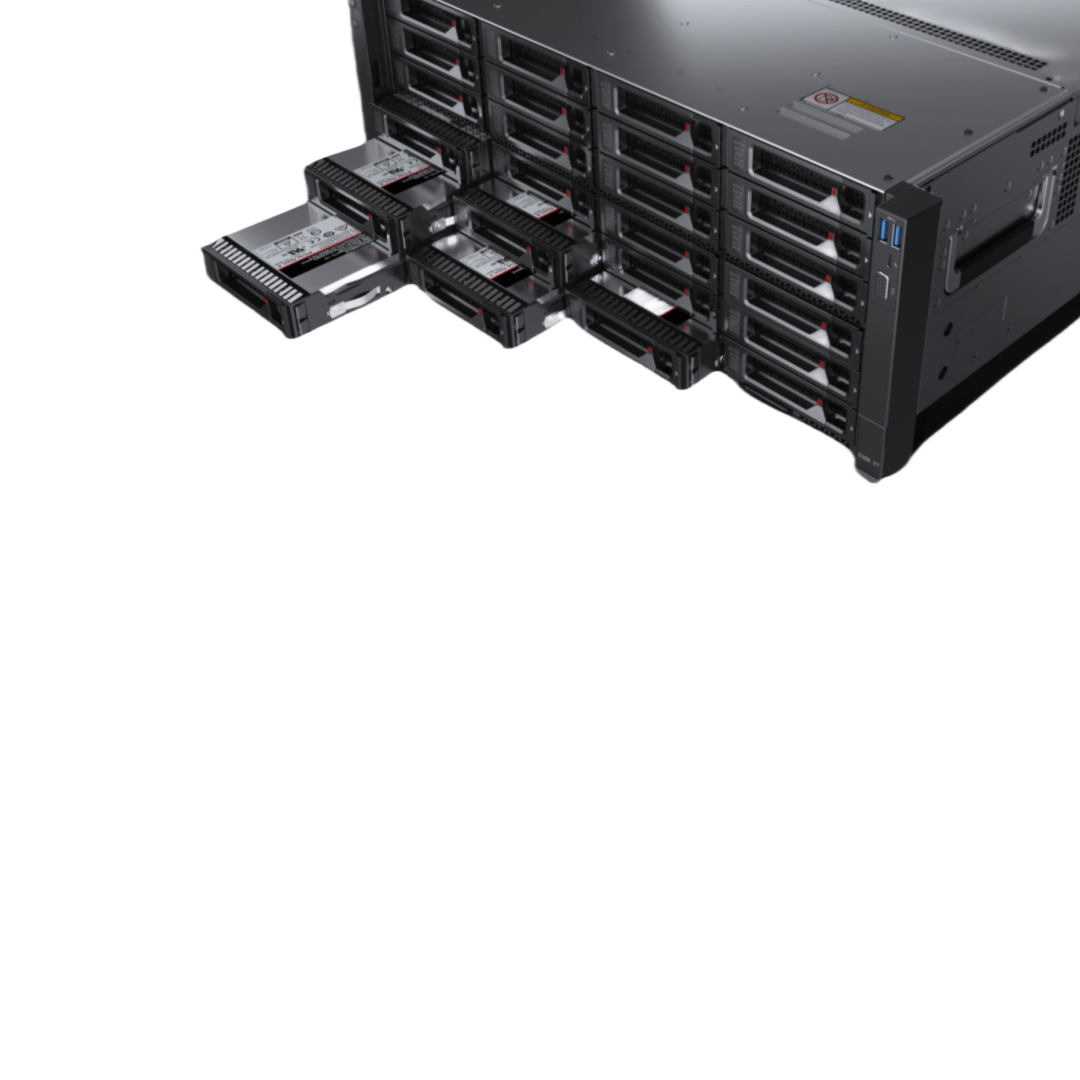

| Local Storage | Supports multiple different hard drive configurations, and the hard drive supports hot swapping: Can be configured with 4 2.5-inch SAS/SATA/SSD hard drives; 24 to 44 3.5-inch SAS/SATA hard drives can be configured; 4 NVMe SSD disks can be configured; Support Flash storage: Dual M.2 SSDs |
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking | Support multiple network expansion capabilities. Support OCP 3.0 network cards - 2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0 |
| PCIe | Up to 10 PCIe expansion slots, 2 OCP3.0 dedicated FLEX IO expansion slots, 10 standard PCIe expansion slots, supporting PCIe 5.0 |
| GPU | 8 single width GPU acceleration cards |

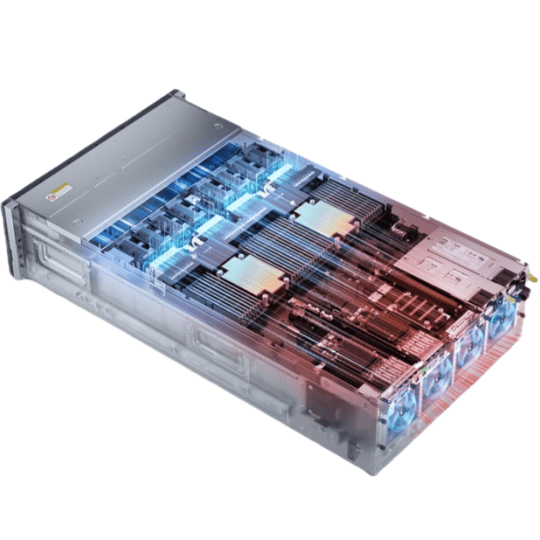

| Fan | 6/8 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power | Optional 900W/1200W/1500W/2000W/3000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy |

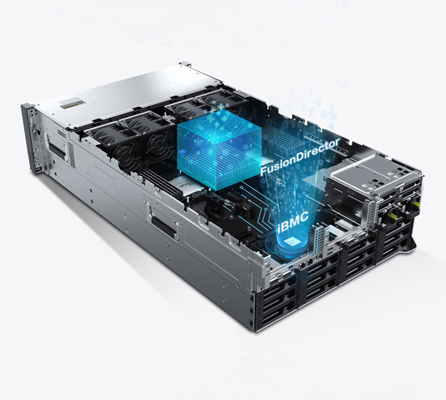

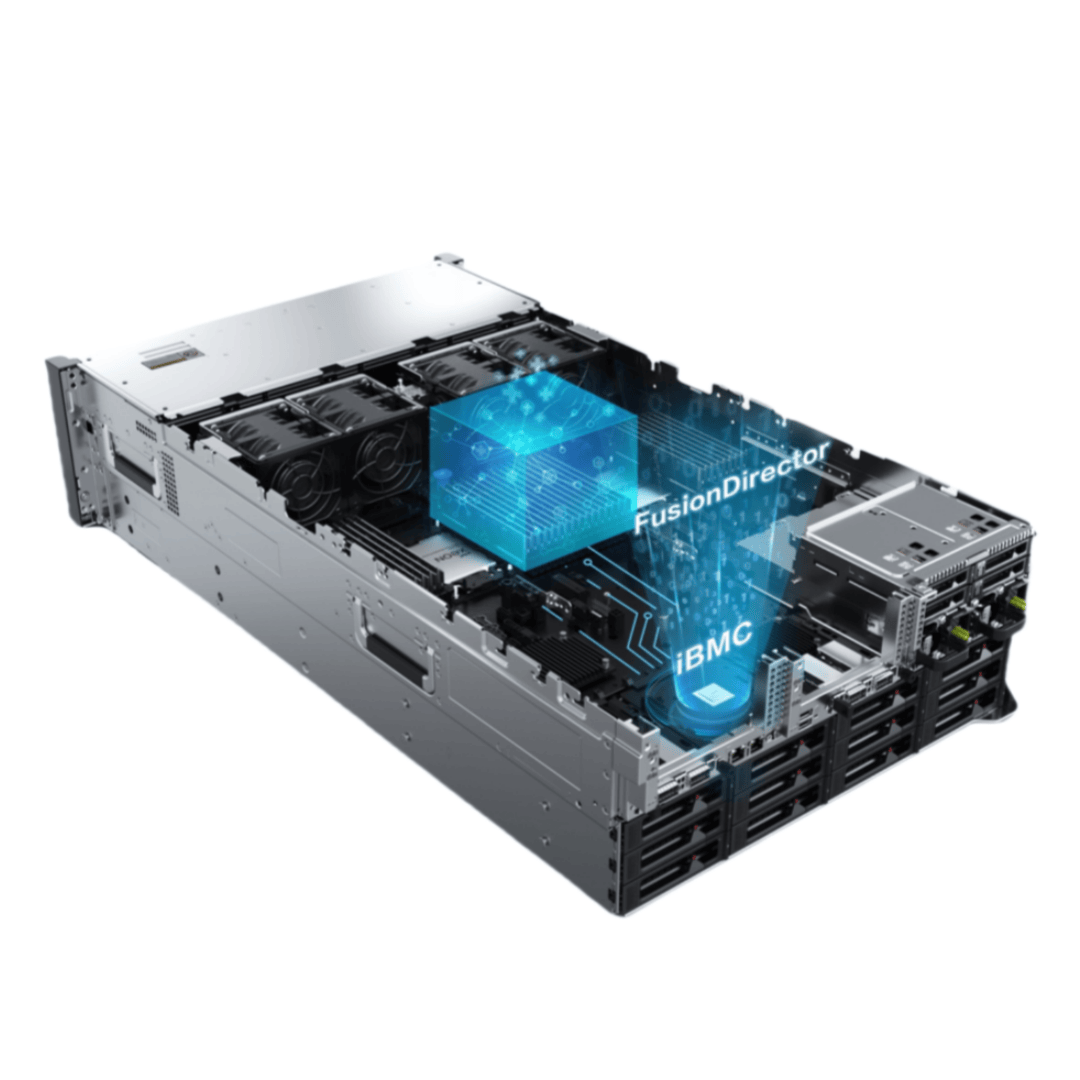

| Manage | iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. iBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM. FusionDirector management software is optional. |
| Operating system | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, etc. |
| Security features | Support power on password, administrator password TPM 2.0, safety panel, safety start, and lid opening detection |

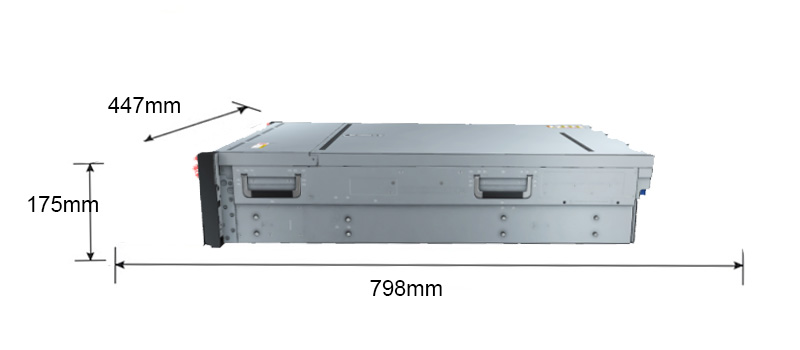

| Size | 175mm×447mm×798mm |

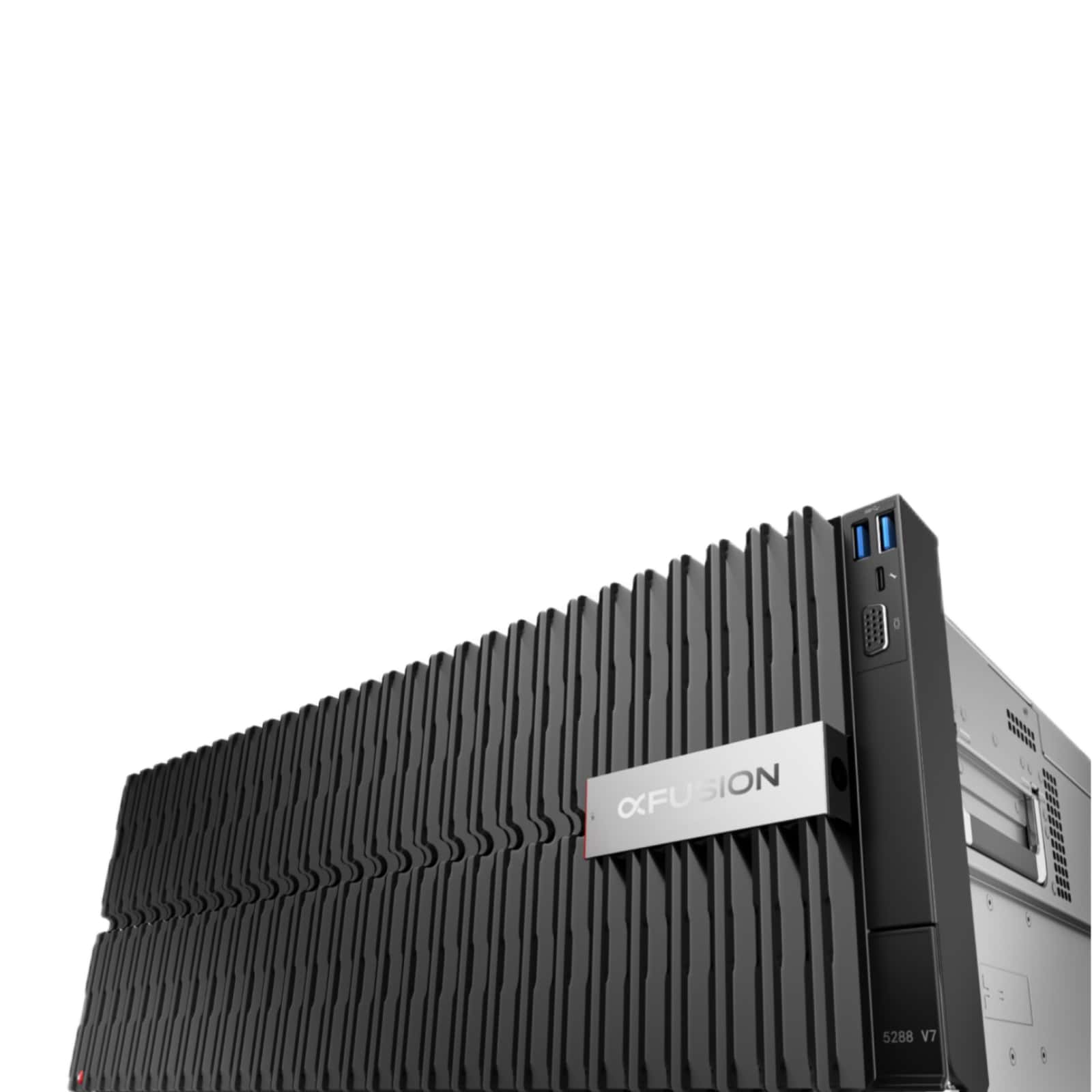

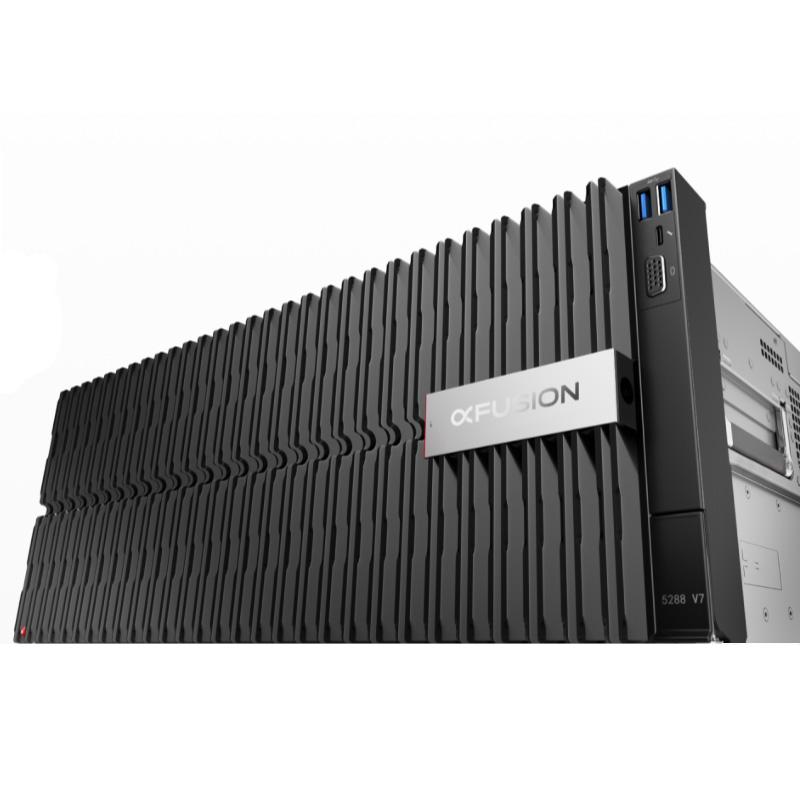

FusionServer 5288 V7 is designed for the Internet IDC (Internet Data Center). The new generation of 4U2 rack servers with wide applications has been launched to meet the needs of cloud computing, enterprise markets, and telecommunications business applications.

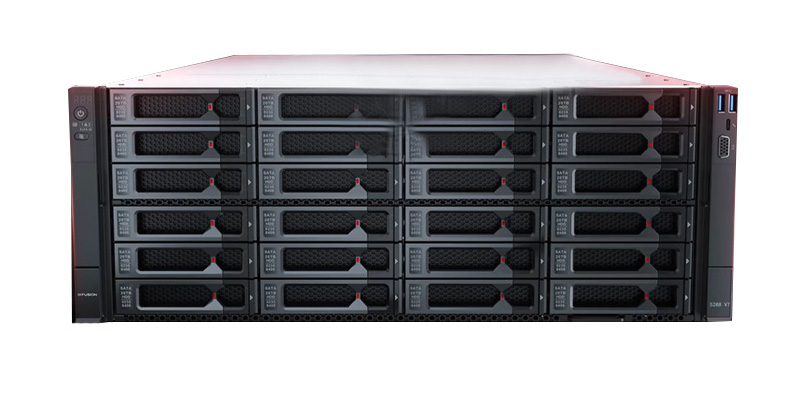

5288H V7
5288 V7 is suitable for IT core business, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecommunications business applications. It has the advantages of low energy consumption, strong scalability, high reliability, and easy management.
Upgrade Efficiency
Version automatic push, contactless upgrade
Deployment Efficiency
75% toolization, pipeline deployment
Inventory Accuracy
Automatically identify asset locations and track real-time trajectories
