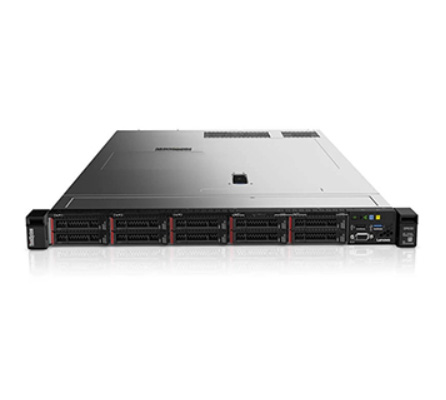

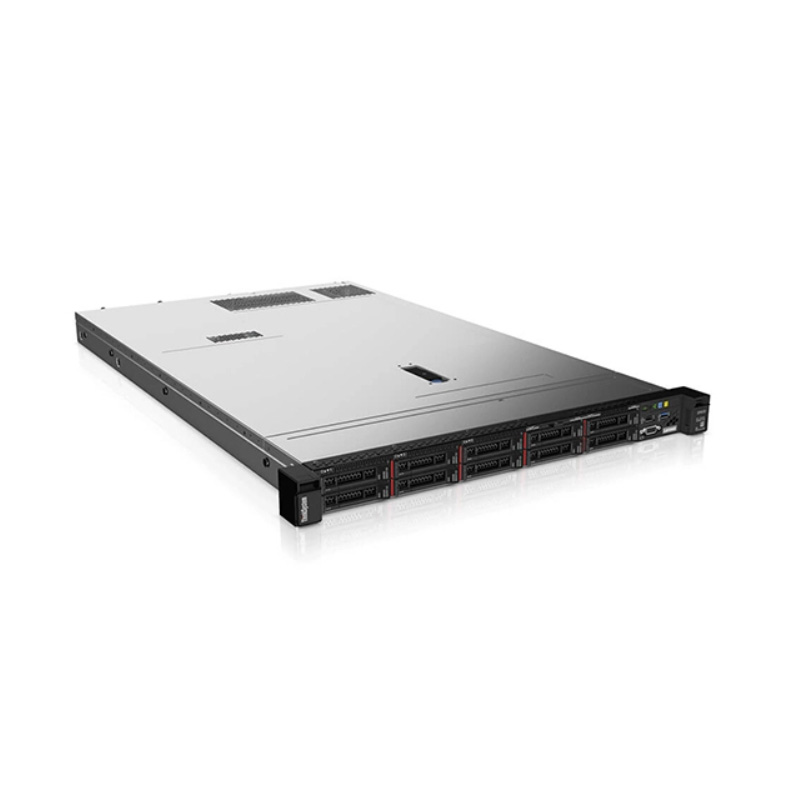

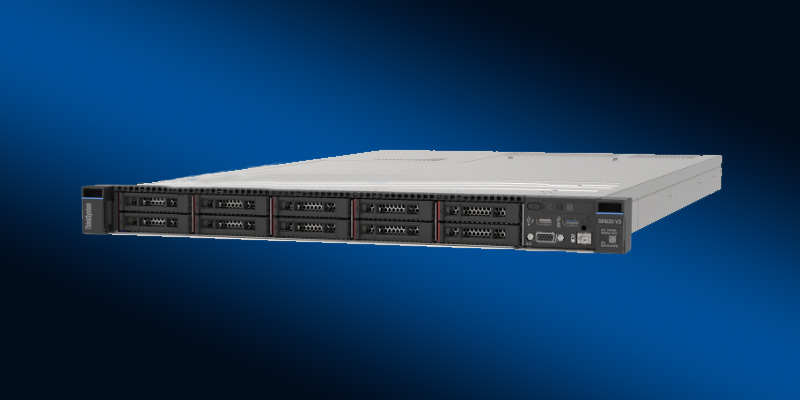

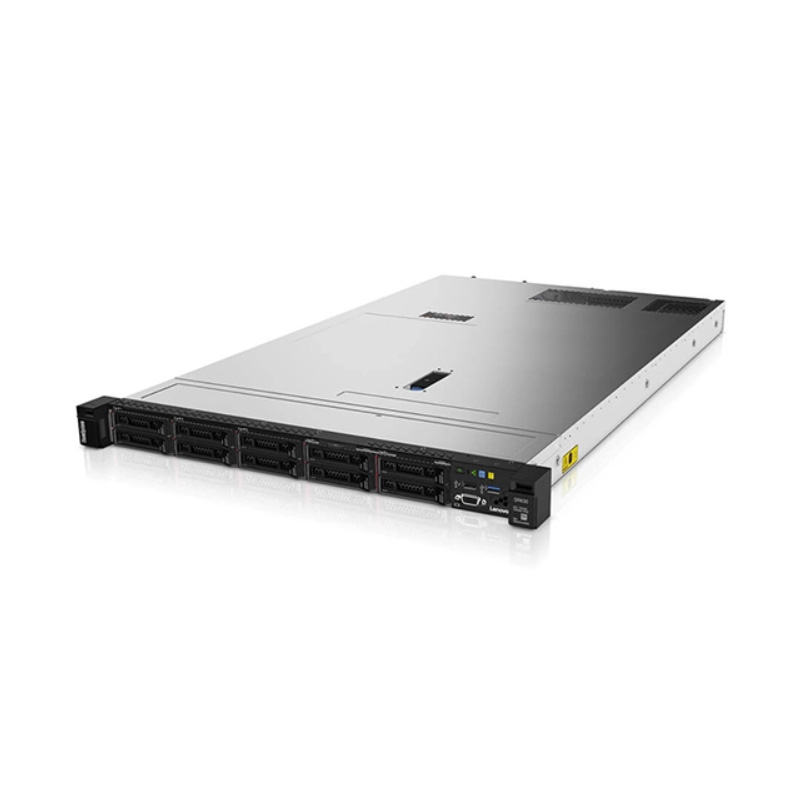

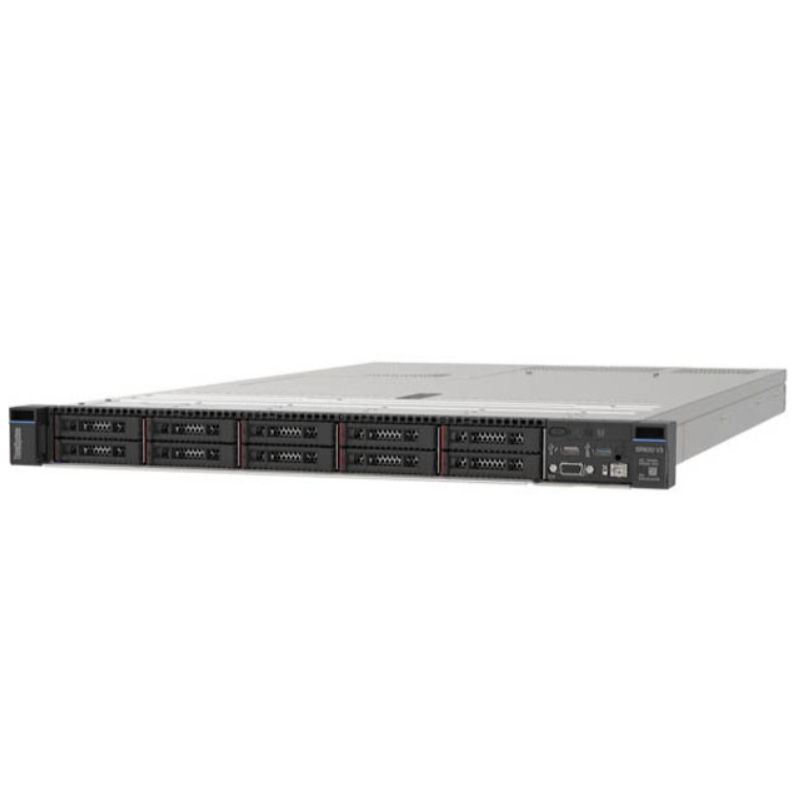

| Model | Thinksystem SR630 V3 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 1U rack server |
| Processor | One or two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"), or one or two 4th Gen Intel Xeon Scalable processors (formerly codenamed "Sapphire Rapids"). Supports processors up to 64 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 385 W. |
| Chipset | Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream" |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9x4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4800 MHz at 2 DPC. |
| Persistent memory | No support. |
| Memory maximum | Up to 8TB by using 32x 256GB 3DS RDIMMs |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring. |

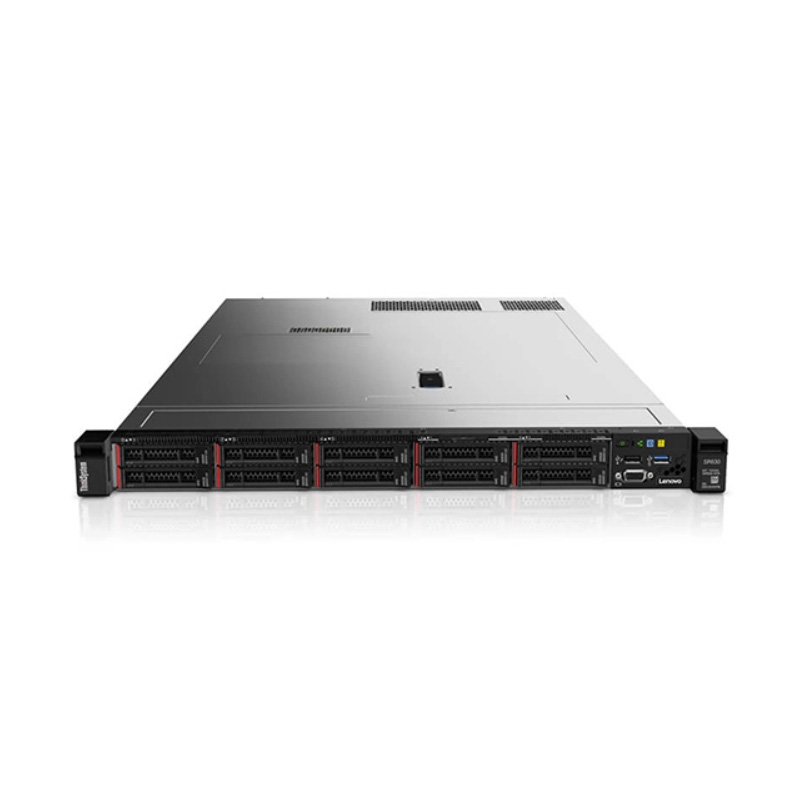

| Disk drive bays | Up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays: * Front bays can be one of the following: * 10x 2.5-inch hot-swap: All AnyBay * 10x 2.5-inch hot-swap: All NVMe * 10x 2.5-inch hot-swap: 6x SAS/SATA + 4x AnyBay * 10x 2.5-inch hot-swap: 6x SAS/SATA + 4x NVMe * 10x 2.5-inch hot-swap: 6x SAS/SATA + 2x AnyBay + 2x NVMe * 8x 2.5-inch hot-swap SAS/SATA * 16x EDSFF E1.S form factor hot-swap drives * 4x 3.5-inch hot-swap SAS/SATA * 4x 3.5-inch hot-swap AnyBay * Rear can be one of the following: * 2x 2.5-inch hot-swap SAS/SATA bays * 2x 2.5-inch hot-swap NVMe bays * 2x 7mm 2.5-inch hot-swap SATA bays * 2x 7mm 2.5-inch hot-swap NVMe bays * Internal M.2 module supporting up to two M.2 drives, for OS boot and drive storage support See Supported drive bay combinations for details. AnyBay bays support SAS, SATA or NVMe drives. NVMe bays only support NVMe drives. Rear drive bays can be used in conjunction with 2.5-inch front drive bays. The server supports up to 12x NVMe drives all with direct connections (no oversubscription). |
| Maximum internal storage | * 2.5-inch drives: * 368.64TB using 12x 30.72TB 2.5-inch SAS/SATA SSDs * 737.28TB using 12x 61.44TB 2.5-inch NVMe SSDs * 28.8TB using 12x 2.4TB 2.5-inch HDDs * 15.36TB using 2x 7.68TB 7mm SSDs * EDSFF drives * 122.88TB using 16x 7.68TB E1.S EDSFF NVMe SSDs * 3.5-inch drives: * 96TB using 4x 24TB 3.5-inch HDDs * 61.44TB using 4x 15.36TB 3.5-inch SAS/SATA SSDs * 51.2TB using 4x 12.8TB 3.5-inch NVMe SSDs |
| Storage controller | * 12x Onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID) * Up to 16x Onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs) * NVMe Retimer Adapter (supports Intel VROC NVMe RAID) * 12 Gb SAS/SATA RAID adapters * 8, 16 or 32 ports * Up to 8GB flash-backed cache * PCIe 4.0 or PCIe 3.0 host interface * 12 Gb SAS/SATA HBA (non-RAID) * 8-port and 16-port * PCIe 4.0 or PCIe 3.0 host interface |
| Optical drive bays | No internal optical drive |
| Tape drive bays | No internal backup drive |
| Network interfaces | Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |
| PCIe slots | Up to 5x slots, 3x at the rear and 2x at the front, plus 1 OCP 3.0 slot. Rear: Up to 3x PCIe slots (2x PCIe 5.0, 1x PCIe 4.0), all with rear access, plus a slot dedicated to the OCP adapter. Slot availability is based on riser selection and rear drive bay selection. Slot 3 requires two processors. Four choices for rear-access slots: * 3x PCIe x16 low-profile slots * 1x PCIe x16 full-height half-length slot + 1x PCIe x16 low-profile slot * 1x PCIe x16 low-profile slot (also supports 2x rear 2.5-inch drive bays) * 2x PCIe x16 low-profile slot (also supports 2x rear 7mm 2.5-inch drive bays) For 2.5-inch front drive configurations, the server supports the installation of a CFF RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots. Front: The server also supports slots at the front of the server: * 1x PCIe x16 or x8 full-height half-length slot * 1x PCIe x8 low-profile slot * 1x OCP 3.0 slot (mutually exclusive with the OCP slot at the rear) Note: Not all slots are available in a 1-processor configuration. See the I/O expansion for details. |
| GPU support | Supports up to 3x single-wide GPUs |

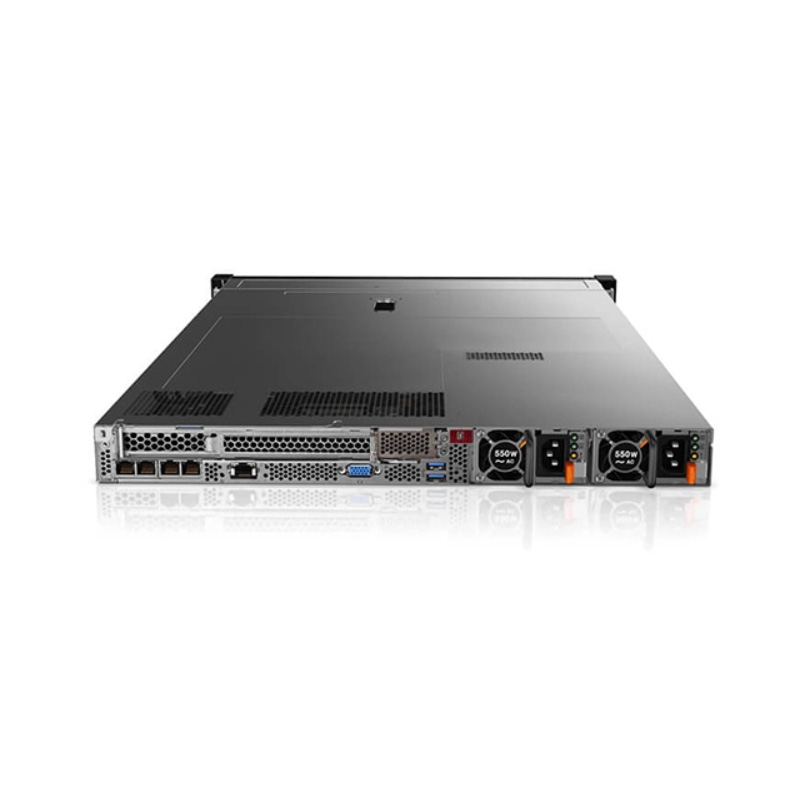

| Ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). Optional second RJ-45 1GbE systems management port for XCC remote management (installed in OCP adapter slot). Internal: 1x USB 3.2 G1 connector for operating system or license key purposes |
| Cooling | Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans, configuration dependent. One fan integrated in each power supply. For high-performance CPUs, the SR630 V3 also offers a closed-loop liquid-cooled heatsink design to more effectively remove heat from the processors. For customers with water infrastructure in their data center, the SR630 V3 also offers open-loop water cooling for efficient heat removal. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input. |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Models with 8x 2.5-inch front drive bays can optionally support an Integrated Diagnostics Panel. XClarity Controller 2 (XCC2) embedded management based on the ASPEED AST2600 baseboard management controller (BMC), XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC Platinum to enable remote control functions and other features. |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel. |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. See the Operating system support section for specifics. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
| Weight | Maximum: 20.8 kg (45.9 lb) |

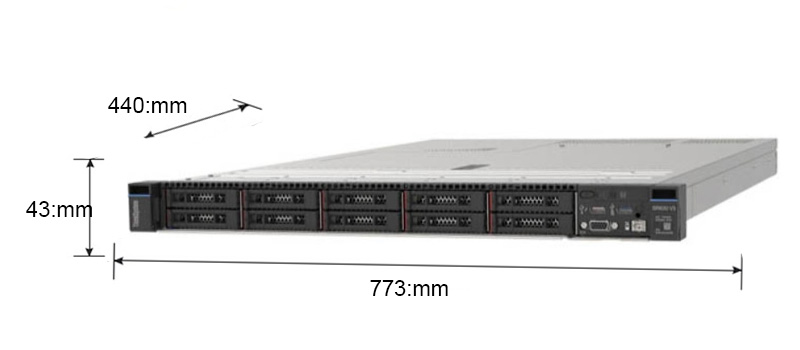

| Size | 43mm×440mm×773mm |
