🌐 The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of major global brands. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | Thinksystem SR650 V3 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | One or two 5th Gen Intel Xeon Scalable processors (Emerald Rapids), or one or two 4th Gen Intel Xeon Scalable processors (Sapphire Rapids). Supports up to 64 cores, speeds up to 3.9 GHz, and TDP up to 385 W. |
| Chipset | Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream" |
| Memory | 32 DIMM slots with two processors. Supports RDIMMs, 9x4 RDIMMs, and 3DS RDIMMs. Operates up to 5600 MHz at 1 DPC. |
| Memory maximum | Up to 8TB by using 32x 256GB 3DS RDIMMs |
| Memory protection | ECC, SDDC, ADDDC, and memory mirroring. |
| Disk drive bays | Up to 20x 3.5-inch or 40x 2.5-inch hot-swap drive bays. Combinations of SAS/SATA, NVMe, or AnyBay are available. Supports 7mm drives and M.2 module. |
| Maximum internal storage | Up to 2211.84TB using 36x 61.44TB 2.5-inch NVMe SSDs; 3.5-inch drives support up to 480TB. |
| Storage controller | Onboard SATA/NVMe ports, NVMe Retimer Adapter, 12 Gb SAS/SATA RAID adapters with up to 8GB cache. |
| Network interfaces | Dedicated OCP 3.0 SFF slot (PCIe 5.0 x16). Supports 1, 10, 25 or 100 GbE network connectivity. |
| PCIe slots | Up to 12x PCIe slots (PCIe 5.0 or 4.0 depending on riser selection). |
| GPU support | Supports up to 8x single-wide GPUs or up to 3x double-wide GPUs |
| Power supply | Hot-swap redundant AC power supplies (80 PLUS Platinum/Titanium). Options from 750W to 2600W. |
| Systems management | XClarity Controller 2 (XCC2) embedded management, XClarity Administrator, Energy Manager. |
| Operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE, VMware ESXi, Ubuntu Server. |

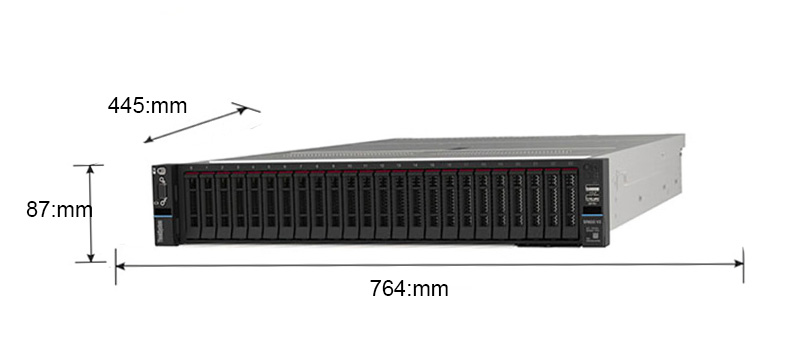

| Size | 87mm × 445mm × 766mm |

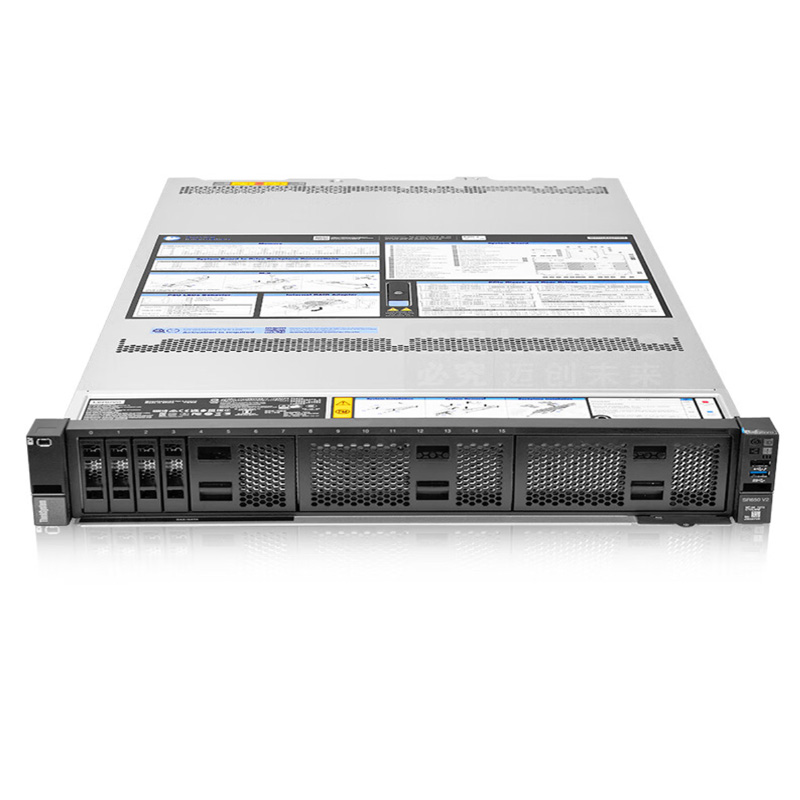

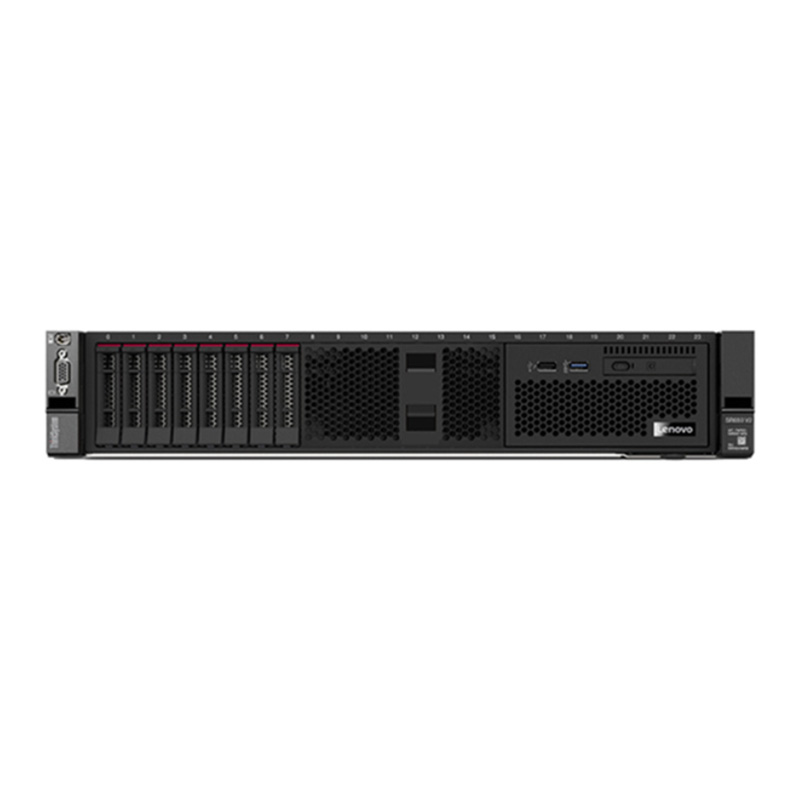

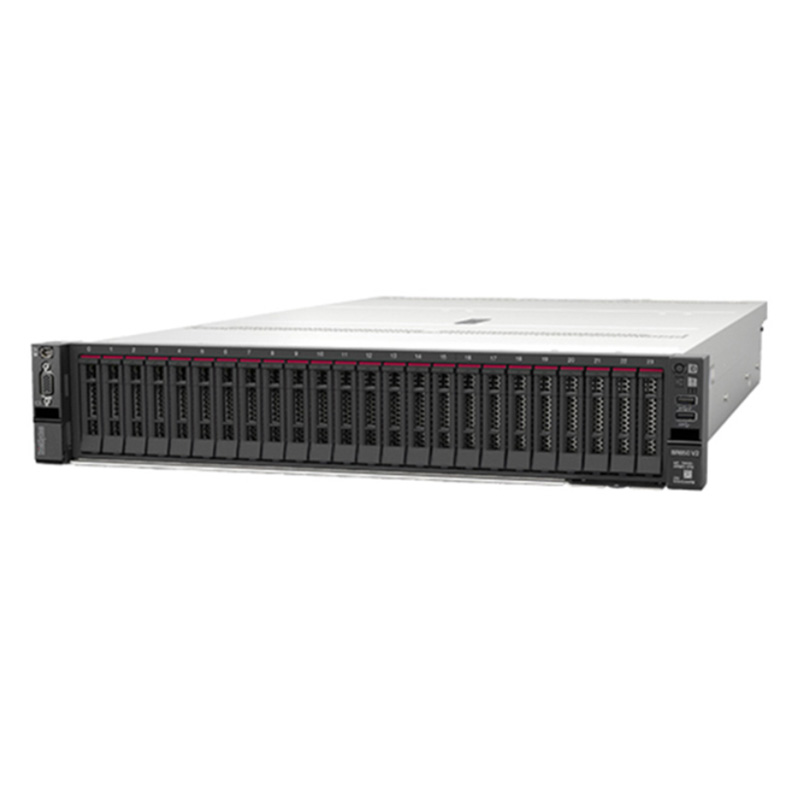

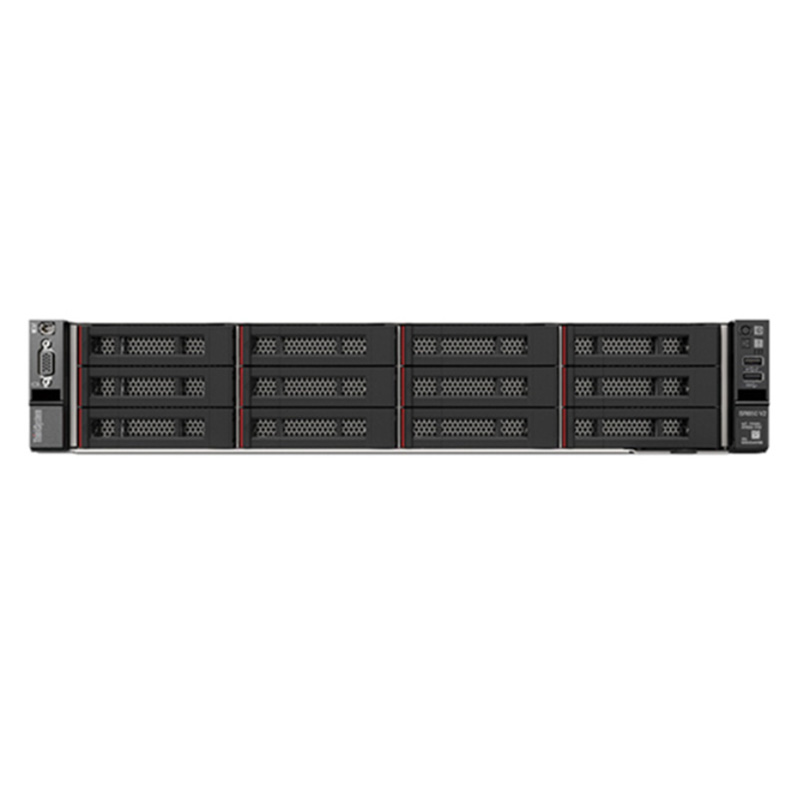

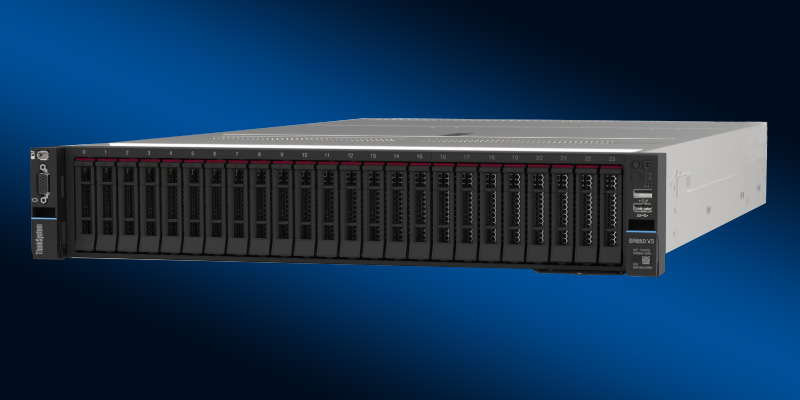

ThinkSystem SR650 V3
The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security. It maximizes performance and flexibility for future growth, handling workloads like databases, virtualization, cloud computing, and HPC.
This server is designed to take advantage of the 5th generation Intel Xeon Scalable processors, supporting 385W 64-core processors and PCIe Gen 5.0. With more than 30 different drive bay configurations, it ensures flexibility to meet any workload demand.
Our company is specialized in computer hardware sales and network platform construction and maintenance. We provide a sound sales network system, stable commodity supply channels, and an excellent technical support team. We have become a number of well-known enterprises and institutions' excellent server system integrator and solution provider. We adhere to the "Customer first, honest and pragmatic, service first" business philosophy to win trust in society.
We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories. Customized According to Your Needs. Welcome to Inquire!
