The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | Thinksystem SR650 V3 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | One or two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"), or one or two 4th Gen Intel Xeon Scalable processors (formerly codenamed "Sapphire Rapids"). Supports processors up to 64 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 385 W. |
| Chipset | Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream" |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9x4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4800MHz at 2 DPC. |
| Persistent memory | No support. |
| Memory maximum | Up to 8TB by using 32x 256GB 3DS RDIMMs |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring. |

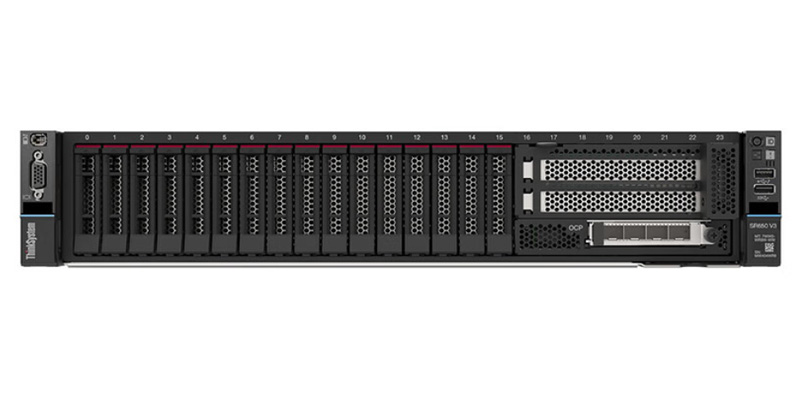

| Disk drive bays | Up to 20x 3.5-inch or 40x 2.5-inch hot-swap drive bays: * Front bays can be 3.5-inch (8 or 12 bays) or 2.5-inch (8, 16 or 24 bays) * Middle bays can be 3.5-inch (4 bays) or 2.5-inch (8 bays) simple-swap * Rear bays can be 3.5-inch (2 or 4 bays) or 2.5-inch (4 or 8 bays) * Combinations of SAS/SATA, NVMe, or AnyBay (supporting SAS, SATA or NVMe) are available The server also supports these drives for OS boot or drive storage: * Two 7mm drives at the rear of the server (in addition to any 2.5-inch or 3.5-inch drive bays) * Internal M.2 module supporting up to two M.2 drives |
| Maximum internal storage | * 2.5-inch drives: * 1228.8TB using 40x 30.72TB 2.5-inch SAS/SATA SSDs * 2211.84TB using 36x 61.44TB 2.5-inch NVMe SSDs * 96TB using 40x 2.4TB 2.5-inch HDDs * 3.5-inch drives: * 480TB using 20x 24TB 3.5-inch HDDs * 307.2TB using 20x 15.36TB 3.5-inch SAS/SATA SSDs * 153.6TB using 12x 12.8TB 3.5-inch NVMe SSDs |
| Storage controller | * 14x Onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID) * Up to 20x Onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs) * NVMe Retimer Adapter (supports Intel VROC NVMe RAID) * 12 Gb SAS/SATA RAID adapters * 8, 16 or 32 ports * Up to 8GB flash-backed cache * PCIe 4.0 or PCIe 3.0 host interface * 12 Gb SAS/SATA HBA (non-RAID) * 8-port and 16-port * PCIe 4.0 or PCIe 3.0 host interface |
| Optical drive bays | No internal optical drive |
| Tape drive bays | No internal backup drive |
| Network interfaces | Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 or 100 GbE network connectivity. One port can optionally be shared with the XClarity Controller 2 (XCC2) management processor for Wake-on-LAN and NC-SI support. |
| PCIe slots | Up to 12x PCIe slots (10x rear, 2x front), plus a slot dedicated to an OCP 3.0 adapter. 2.5-inch drive configurations also support an additional internal bay for a cabled RAID adapter or HBA. Rear: Up to 10x PCIe slots, plus a slot dedicated to the OCP adapter. Slots are either PCIe 5.0 or 4.0 depending on riser selection and rear drive bay selection. The use of some slots requires two processors. Slots are configured using three riser cards. Riser 1 (slots 1-3) and Riser 2 (slots 4-6) are installed in slots in the system board, Riser 3 (slots 7-8) and Riser 4 (9-10) are cabled to ports on the system board. A variety of riser cards are available. Front: The server also supports slots at the front of the server (configurations with up to 16 drive bays): 2x PCIe x16 full-height half-length slots, plus 1x OCP 3.0 slot Internal: For 2.5-inch front drive configurations, the server supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots. |
| GPU support | Supports up to 8x single-wide GPUs or up to 3x double-wide GPUs |
| Ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). Internal: 1x USB 3.2 G1 (5 Gb/s) connector for operating system or license key purposes |
| Cooling | 6x (with two processors installed) or 5x (with one processor installed) single-rotor or dual-rotor hot swap 60 mm fans, configuration dependent. Fans are N+1 redundant, tolerating a single-rotor failure. One fan integrated in each power supply. For customers with water infrastructure in their data center, the SR650 V3 also supports open-loop water cooling for efficient heat removal. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W, 1800 W, 2400 W and 2600W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input. |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Models with 8x or 16x 2.5-inch front drive bays can optionally support an Integrated Diagnostics Panel. XClarity Controller 2 (XCC2) embedded management controller, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Platinum to enable remote control and other functions. |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel. |
| Operating systems supported | Microsoft Windows Server, Microsoft Windows 10 & 11, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
| Weight | Maximum: 38.8 kg (85.5 lb) |
| Size | 87mm × 445mm × 766mm |

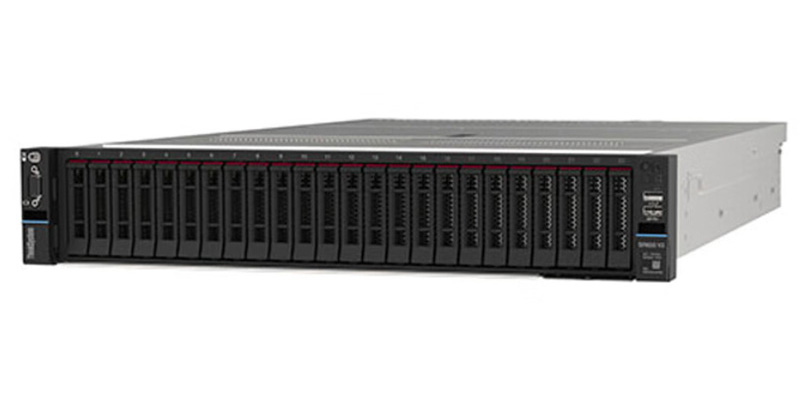

ThinkSystem SR650 V3: The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
SR650 V3 Product Guide: This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V3 and consider its use in IT solutions.
The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is based on the new 5th generation Intel Xeon Scalable processor family (formerly codenamed "Emerald Rapids").
The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
The SR650 V3 server has been designed to take advantage of the features of the 5th generation Intel Xeon Scalable processors, such as the full performance of 385W 64-core processors, support for 5600 MHz memory and PCIe Gen 5.0 support. The SR650 V3 is a very configuration-rich offering, supporting more than 30 different drive bay configurations in the front, middle and rear of the server and 5 different slot configurations at the rear of the server. This level of flexibility ensures that you can configure the server to meet the needs of your workload.
Combining performance and flexibility, the SR650 V3 server is a great choice for enterprises of all sizes. The server offers a broad selection of drive and slot configurations and offers numerous high performance features. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs. Scalability and performance.
