We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. We are the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | ThinkSystem SR665 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |

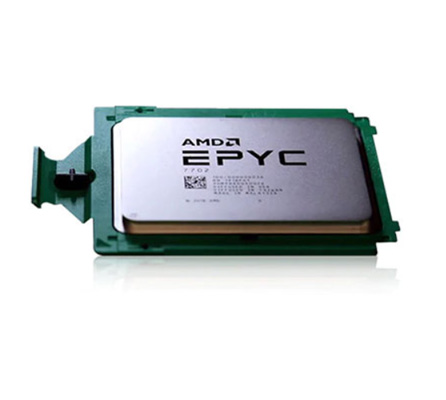

| Processor | One or two AMD EPYC 7002 Series processors (formerly codenamed "Rome") or AMD EPYC 7003 Series processors (formerly codenamed "Milan"). Supports processors up to 64 cores, core speeds of up to 4.1 GHz, and TDP ratings of up to 280W. |
| Chipset | Not applicable (platform controller hub functions are integrated into the processor) |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR4 RDIMMs and 3DS RDIMMs are supported: * Performance+ RDIMMs: 1 DPC at 3200 MHz, 2 DPC at 3200 MHz * RDIMMs: 1 DPC at 3200 MHz, 2 DPC at 2933 MHz * 3DS RDIMMs: 1 DPC at 2933 MHz, 2 DPC at 2666 MHz |
| Memory maximum | Up to 8TB with 32x 256GB 3DS RDIMMs |
| Persistent memory | Not supported. |
| Memory protection | ECC, SDDC, Patrol/Demand Scrubbing, DRAM Address Command Parity with Replay, DRAM Uncorrected ECC Error Retry, Post Package Repair |
| Disk drive bays | Up to 20x 3.5-inch or 40x 2.5-inch hot-swap drive bays: * Front bays can be 3.5-inch (8 or 12 bays) or 2.5-inch (8, 16 or 24 bays) * Middle bays can be 3.5-inch (4 bays) or 2.5-inch (8 bays) * Rear bays can be 3.5-inch (2 or 4 bays) or 2.5-inch (4 or 8 bays) * Combinations of SAS/SATA, NVMe, or AnyBay (supporting SAS, SATA or NVMe) are available The server also supports these drives for OS boot or drive storage: * Two 7mm drives at the rear of the server (in addition to any 2.5-inch or 3.5-inch drive bays) * Internal M.2 module supporting up to two M.2 drives |
| Maximum internal storage | * 2.5-inch drives: * 1228.8TB using 40x 30.72TB 2.5-inch SAS/SATA SSDs * 1966.08TB using 32x 61.44TB 2.5-inch NVMe SSDs * 96TB using 40x 2.4TB 2.5-inch HDDs * 3.5-inch drives: * 440TB using 20x 22TB 3.5-inch HDDs * 307.2TB using 20x 15.36TB 3.5-inch SAS/SATA SSDs * 153.6TB using 12x 12.8TB 3.5-inch NVMe SSDs |
| Storage controller | * Onboard NVMe and NVMe Switch Adapters (no RAID) * Onboard SATA (no RAID) * 12 Gb SAS/SATA RAID adapters: * RAID 530i-8i (cacheless) supports RAID 0, 1, 10, 5, 50 * RAID 530i-16i (cacheless) supports RAID 0, 1, 10 * RAID 930-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 * RAID 930-16i with 4GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 * RAID 940-8i with 4GB or 8GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 * RAID 940-16i with 4GB or 8GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 * RAID 940-32i with 8GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 * 12 Gb SAS/SATA non-RAID: * 430-8i or 440-8i HBAs * 430-16i or 440-16i HBAs |
| Optical drive bays | No internal optical drive. |
| Tape drive bays | No internal backup drive. |
| Network interfaces | Dedicated OCP 3.0 SFF slot with PCIe 4.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1GbE, 10GbE and 25GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |
| PCIe Expansion slots | Up to 8x PCIe 4.0 slots, all full height slots and with rear access, plus a slot dedicated to the OCP adapter. Slot availability is based on riser selection and rear drive bay selection. Slots 4-8 require two processors. Slots are configured using three riser cards. Riser 1 (slots 1-3) and Riser 2 (slots 4-6) are installed in slots in the system board, Riser 3 (slots 7-8) is cabled to ports on the system board. A variety of riser cards are available. For 2.5-inch front drive configurations, the server supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots. |
| Ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). Internal: 1x USB 3.2 G1 connector for operating system or license key purposes |
| Cooling | Up to 6x N+1 redundant hot swap 60 mm fans, configuration dependent. One fan integrated in each power supply. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 500 W, 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 500 W, 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input. |
| Video | G200 graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Models with 8x or 16x 2.5-inch front drive bays can optionally support an Integrated Diagnostics Panel. XClarity Controller (XCC) embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced and Enterprise to enable remote control functions. |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 2.0. Servers with EPYC 7002 processors also support TPM 1.2. In China only, optional Nationz TPM 2.0. Optional lockable front security bezel. |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
| Weight | Maximum: 38.8 kg (85.5 lb) |

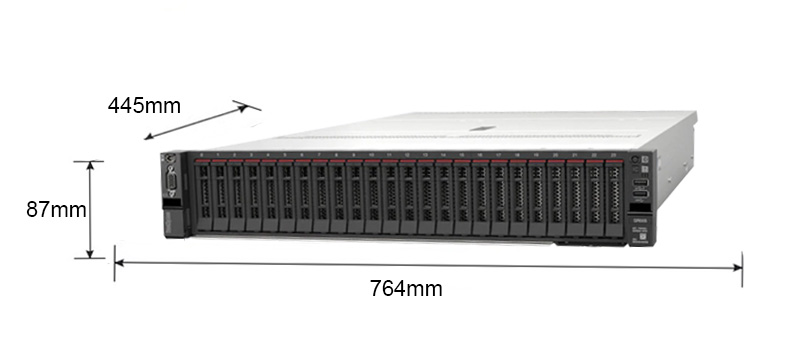

| Size | Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 764 mm (30.1 in.). |

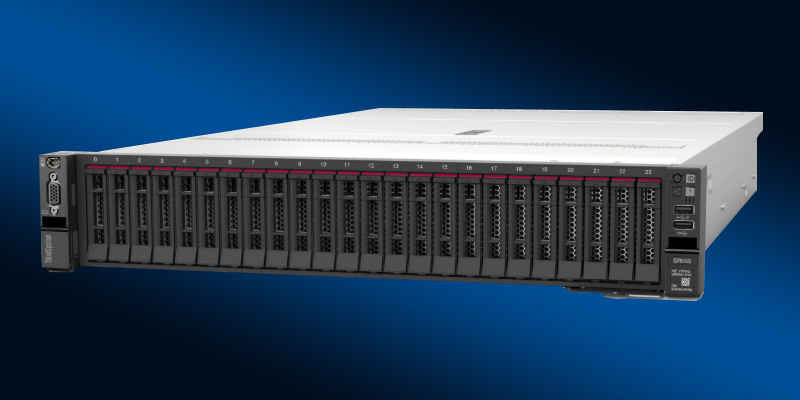

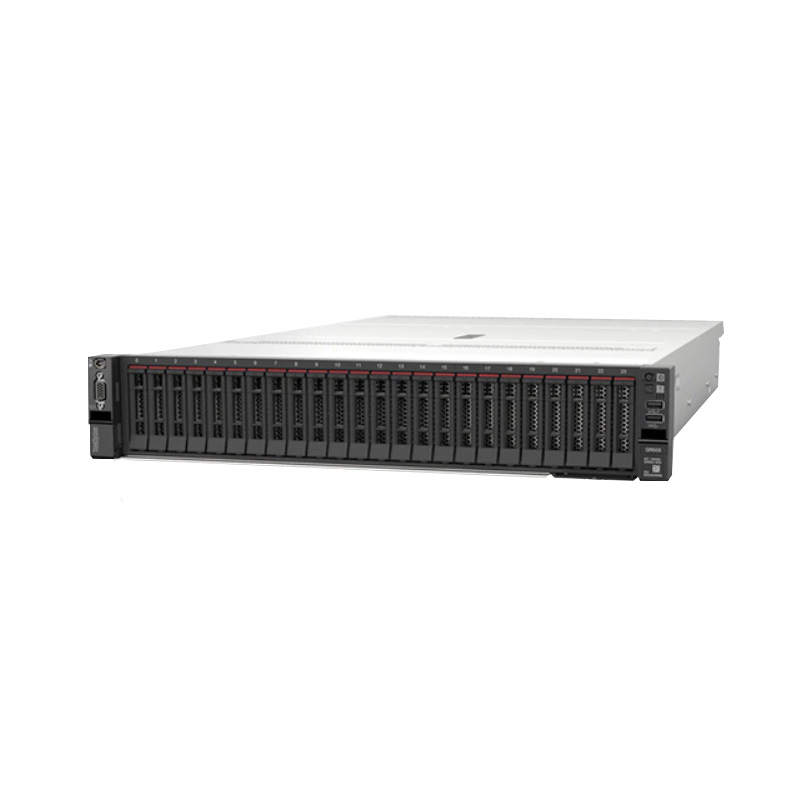

The Lenovo ThinkSystem SR665 is a 2-socket 2U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With up to 64 cores per processor and support for the new PCIe 4.0 standard for I/O, the SR665 offers the ultimate in two-socket server performance in a 2U form factor. The server is ideal for dense workloads that can take advantage of GPU processing and high-performance NVMe drives.

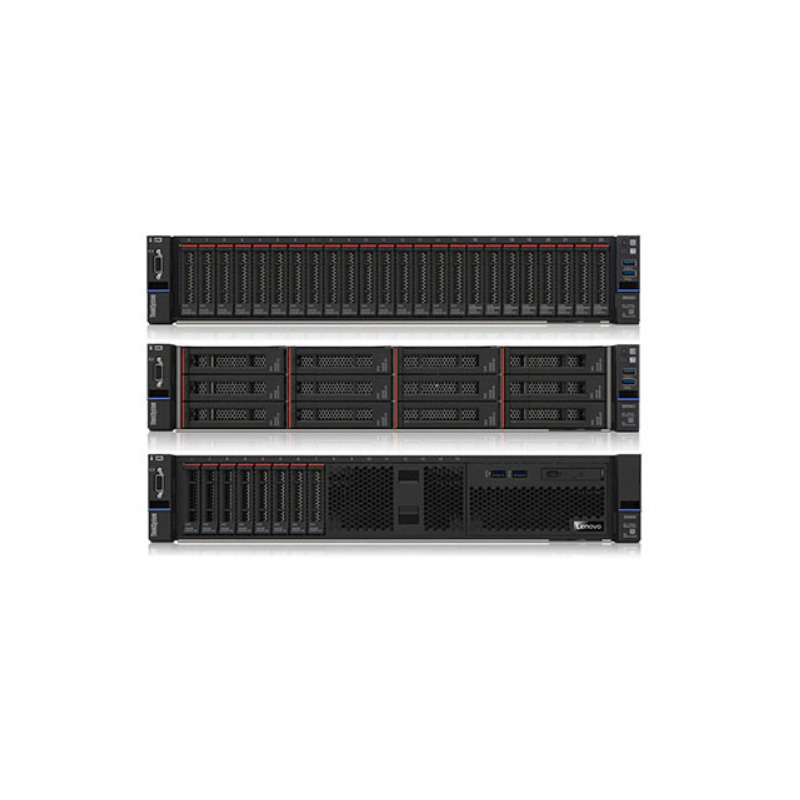

The SR665 server is a very configuration-rich offering, supporting 28 different drive bay configurations in the front, middle and rear of the server and 5 different slot configurations at the rear of the server. This level of flexibility ensures that you can configure the server exactly the way your workload requires.
The server has been designed to take advantage of the features of the EPYC 7002 and EPYC 7003 processors, such as the full performance of 280W 64-core processors, support for 3200 MHz memory and PCIe Gen 4.0 support. Competitive servers that are based on the older EPYC 7001 "Naples" designs may not be able to offer these performance features.
Combining performance and flexibility, the SR665 server is a great choice for enterprises of all sizes. The server offers a broad selection of drive and slot configurations and offers high performance features that industries such as finance, healthcare and telco need. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment can help save operational costs.
In the SR665, processors either have a standard 1U heatsink, standard 2U heatsink, or a performance heatsink attached depending on the TDP of the processor and configuration of the server. Performance heatsinks include a large 2U-high copper radiator that connects to the main heatsink via heat pipes.
We are specialized in computer hardware sales and network platform construction and maintenance of IT enterprises. Our main products are Dell, HP, IBM, Lenovo, Huawei, convinced, Youyou mail and other products. We have a sound sales network system, stable commodity supply channels, excellent technical support team. Based on this advantage, our business has expanded rapidly, and now has become a number of well-known enterprises and institutions at home and abroad excellent server system integrator and solution provider. Since inception, we have established a good customer relationship maintenance system and support system. Committed to the real price of genuine market competition, active open cooperation, and establish a strong supplier partnership for war preparedness. In the competitive market environment, we are in line with the "Customer first, honest and pragmatic, service first" business philosophy; to strengthen the quality of products and thoughtful service to win trust in society. We wish our professional quality and first-class service can be accepted and introduced by you and your enterprise.
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.

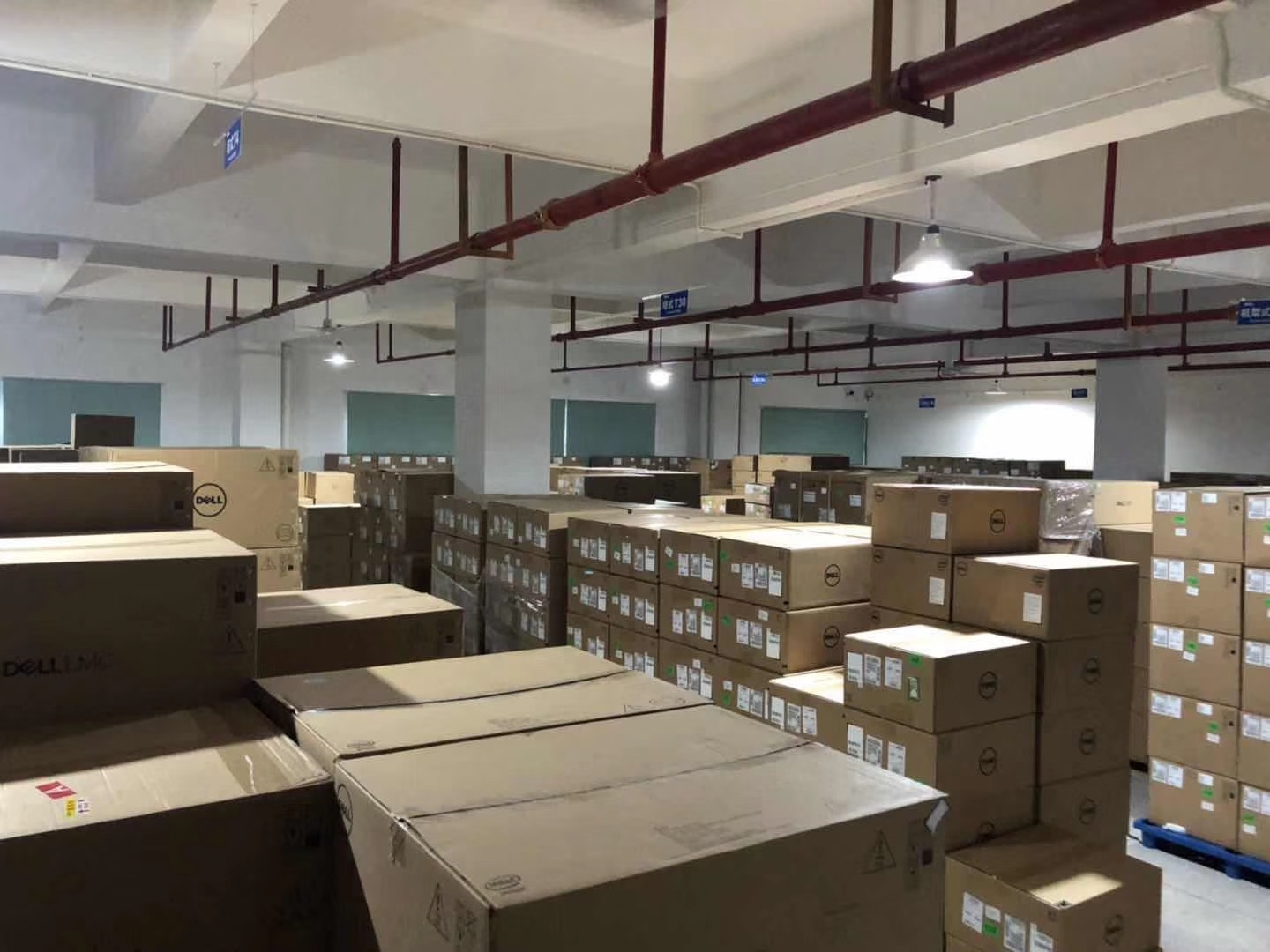

We have a warehouse, and you are always welcome to visit and inspect the goods.
As the senior agent of this brand, our discount is very advantageous. As long as you have a large amount, we can give you the best discount.
1-3 working days after your payment.
Our different products have different warranty, if necessary, we can extend the warranty to five years.
We accept orders from 1 set, please feel free to inquire.
