We have 10 years of distribution experience, integrating system integration, IT consulting, and professional IT services. As business partners of major brands including Huawei, Lenovo, Dell, and IBM, we look forward to cooperating with you. Custom configuration solutions are available to match your specific needs.
| Model | Thinksystem SR630 V3 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 1U rack server |
| Processor | One or two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"), or one or two 4th Gen Intel Xeon Scalable processors (formerly codenamed "Sapphire Rapids"). Supports processors up to 64 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 385 W. |
| Chipset | Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream" |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9x4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4800 MHz at 2 DPC. |
| Persistent memory | No support. |
| Memory maximum | Up to 8TB by using 32x 256GB 3DS RDIMMs |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring. |
| Disk drive bays | Up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays: * Front bays can be one of the following: 10x 2.5-inch hot-swap (All AnyBay / All NVMe / 6x SAS/SATA + 4x AnyBay / 6x SAS/SATA + 4x NVMe / 6x SAS/SATA + 2x AnyBay + 2x NVMe), 8x 2.5-inch hot-swap SAS/SATA, 16x EDSFF E1.S form factor hot-swap drives, or 4x 3.5-inch hot-swap SAS/SATA or AnyBay. * Rear can be one of the following: 2x 2.5-inch hot-swap SAS/SATA or NVMe bays, 2x 7mm 2.5-inch hot-swap SATA or NVMe bays. * Internal M.2 module supporting up to two M.2 drives, for OS boot and drive storage support. |
| Maximum internal storage | * 2.5-inch drives: 368.64TB using 12x 30.72TB SAS/SATA SSDs; 737.28TB using 12x 61.44TB NVMe SSDs; 28.8TB using 12x 2.4TB HDDs; 15.36TB using 2x 7.68TB 7mm SSDs. * EDSFF drives: 122.88TB using 16x 7.68TB E1.S EDSFF NVMe SSDs. * 3.5-inch drives: 96TB using 4x 24TB HDDs; 61.44TB using 4x 15.36TB SAS/SATA SSDs; 51.2TB using 4x 12.8TB NVMe SSDs. |
| Storage controller | * 12x Onboard SATA ports (Intel VROC SATA RAID) * Up to 16x Onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs) * NVMe Retimer Adapter (supports Intel VROC NVMe RAID) * 12 Gb SAS/SATA RAID adapters (8, 16 or 32 ports, up to 8GB flash-backed cache, PCIe 4.0 or PCIe 3.0 host interface) * 12 Gb SAS/SATA HBA (non-RAID, 8-port and 16-port, PCIe 4.0 or PCIe 3.0 host interface) |
| Optical drive bays | No internal optical drive |
| Tape drive bays | No internal backup drive |
| Network interfaces | Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor. |
| PCIe slots | Up to 5x slots, 3x at the rear and 2x at the front, plus 1 OCP 3.0 slot. Rear: Up to 3x PCIe slots (2x PCIe 5.0, 1x PCIe 4.0), all with rear access. Front: Supports slots at the front of the server: 1x PCIe x16 or x8 full-height half-length slot, 1x PCIe x8 low-profile slot, and 1x OCP 3.0 slot (mutually exclusive with rear OCP slot). |
| GPU support | Supports up to 3x single-wide GPUs |
| Ports | Front: 1x USB 3.2 G1 port, 1x USB 2.0 port (for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1 ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port. Optional second RJ-45 1GbE systems management port. Internal: 1x USB 3.2 G1 connector for operating system or license key purposes. |
| Cooling | Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans. One fan integrated in each power supply. Offers a closed-loop liquid-cooled heatsink design for high-performance CPUs and open-loop water cooling for efficient heat removal. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or Titanium certification. 750 W, 1100 W and 1800 W AC options. |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. XClarity Controller 2 (XCC2) embedded management based on the ASPEED AST2600 baseboard management controller (BMC). |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional service upgrades: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension. |
| Weight | Maximum: 20.8 kg (45.9 lb) |
| Size | 43mm × 440mm × 773mm |

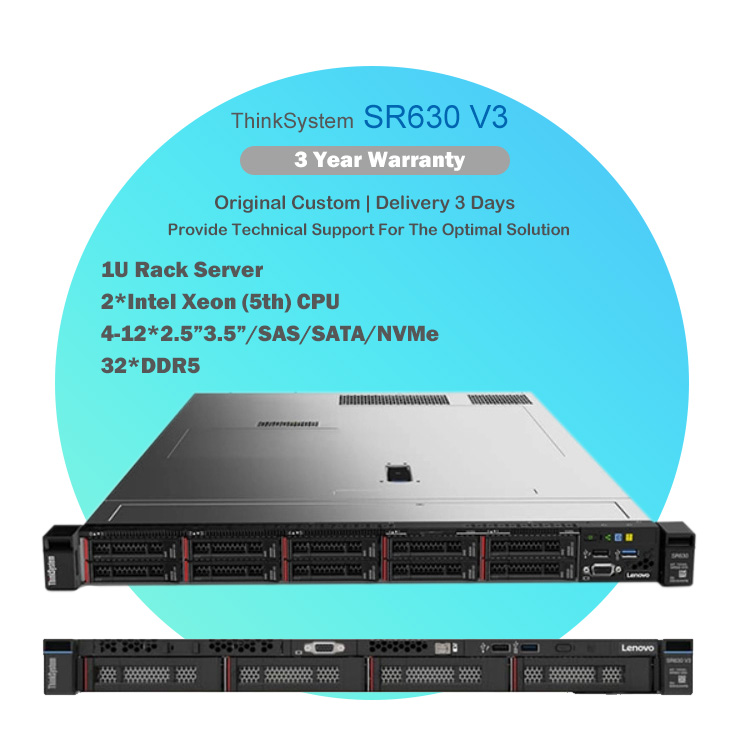

The ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth.
It is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V3 server, its key features, specifications, components, and configuration guidelines.
It is designed for technical specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V3 and integrate it into their IT solutions.
The ThinkSystem SR630 V3 is based on the new 5th generation Intel Xeon Scalable processor family (formerly codenamed "Emerald Rapids").
It handles demanding workloads including databases, virtualization, infrastructure security, systems management, enterprise applications, and cloud computing.
Designed to take full advantage of 5th generation Intel Xeon Scalable processors, supporting up to 385W 64-core processors, 5600 MHz memory, and PCIe Gen 5.0. Onboard NVMe PCIe ports allow direct connections to 16x NVMe SSDs for exceptionally fast data storage and access.
Combining performance and flexibility, the server offers outstanding reliability, availability, and serviceability (RAS) features alongside a high-efficiency design to help reduce overall operational costs.
Yes, all our products are brand new from the original factory, unless second-hand options are specifically requested.
Yes, we maintain a fully stocked warehouse. Customers are always welcome to visit and inspect the inventory.
As an established distributor, we offer highly competitive pricing. We can provide additional optimized discounts for volume orders.
Orders are processed quickly and generally dispatched within 1-3 working days following payment verification.
Warranty terms vary by product. Upon request, we can coordinate extensions to provide coverage up to five years.
Our minimum order quantity starts from 1 set. Feel free to submit inquiries for any quantity needed.
