Vertex AI Server
1 / 5
With 10 years of distribution experience, we are a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. As a core agent and business partner of Huawei, Lenovo, Dell, and IBM, we look forward to cooperating with you. We can customize configurations freely according to your specific needs!
| Model | ThinkSystem SR630 V3 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 1U rack server |
| Processor | One or two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"), or one or two 4th Gen Intel Xeon Scalable processors (formerly codenamed "Sapphire Rapids"). Supports processors up to 64 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 385 W. |
| Chipset | Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream" |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9x4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4800 MHz at 2 DPC. |
| Persistent memory | No support. |
| Memory maximum | Up to 8TB by using 32x 256GB 3DS RDIMMs |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring. |
| Disk drive bays | Up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays: * Front bays can be one of the following: - 10x 2.5-inch hot-swap: All AnyBay - 10x 2.5-inch hot-swap: All NVMe - 10x 2.5-inch hot-swap: 6x SAS/SATA + 4x AnyBay - 10x 2.5-inch hot-swap: 6x SAS/SATA + 4x NVMe - 10x 2.5-inch hot-swap: 6x SAS/SATA + 2x AnyBay + 2x NVMe - 8x 2.5-inch hot-swap SAS/SATA - 16x EDSFF E1.S form factor hot-swap drives - 4x 3.5-inch hot-swap SAS/SATA - 4x 3.5-inch hot-swap AnyBay * Rear can be one of the following: - 2x 2.5-inch hot-swap SAS/SATA bays - 2x 2.5-inch hot-swap NVMe bays - 2x 7mm 2.5-inch hot-swap SATA bays - 2x 7mm 2.5-inch hot-swap NVMe bays * Internal M.2 module supporting up to two M.2 drives, for OS boot and drive storage support AnyBay bays support SAS, SATA or NVMe drives. NVMe bays only support NVMe drives. Rear drive bays can be used in conjunction with 2.5-inch front drive bays. The server supports up to 12x NVMe drives all with direct connections (no oversubscription). |
| Maximum internal storage | * 2.5-inch drives: - 368.64TB using 12x 30.72TB 2.5-inch SAS/SATA SSDs - 737.28TB using 12x 61.44TB 2.5-inch NVMe SSDs - 28.8TB using 12x 2.4TB 2.5-inch HDDs - 15.36TB using 2x 7.68TB 7mm SSDs * EDSFF drives: - 122.88TB using 16x 7.68TB E1.S EDSFF NVMe SSDs * 3.5-inch drives: - 96TB using 4x 24TB 3.5-inch HDDs - 61.44TB using 4x 15.36TB 3.5-inch SAS/SATA SSDs - 51.2TB using 4x 12.8TB 3.5-inch NVMe SSDs |
| Storage controller | * 12x Onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID) * Up to 16x Onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs) * NVMe Retimer Adapter (supports Intel VROC NVMe RAID) * 12 Gb SAS/SATA RAID adapters: - 8, 16 or 32 ports, Up to 8GB flash-backed cache, PCIe 4.0 or PCIe 3.0 host interface * 12 Gb SAS/SATA HBA (non-RAID): - 8-port and 16-port, PCIe 4.0 or PCIe 3.0 host interface |
| Optical drive bays | No internal optical drive |
| Tape drive bays | No internal backup drive |
| Network interfaces | Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |
| PCIe slots | Up to 5x slots, 3x at the rear and 2x at the front, plus 1 OCP 3.0 slot. Rear: Up to 3x PCIe slots (2x PCIe 5.0, 1x PCIe 4.0), all with rear access, plus a slot dedicated to the OCP adapter. Slot availability is based on riser selection and rear drive bay selection. Slot 3 requires two processors. Four choices for rear-access slots: * 3x PCIe x16 low-profile slots * 1x PCIe x16 full-height half-length slot + 1x PCIe x16 low-profile slot * 1x PCIe x16 low-profile slot (also supports 2x rear 2.5-inch drive bays) * 2x PCIe x16 low-profile slot (also supports 2x rear 7mm 2.5-inch drive bays) For 2.5-inch front drive configurations, the server supports the installation of a CFF RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots. Front: The server also supports slots at the front of the server: * 1x PCIe x16 or x8 full-height half-length slot, 1x PCIe x8 low-profile slot, 1x OCP 3.0 slot (mutually exclusive with the OCP slot at the rear) |
| GPU support | Supports up to 3x single-wide GPUs |
| Ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port. Optional second RJ-45 1GbE systems management port. Internal: 1x USB 3.2 G1 connector for operating system or license key purposes. |
| Cooling | Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans, configuration dependent. One fan integrated in each power supply. Closed-loop liquid-cooled heatsink design or open-loop water cooling option. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W and 1800 W AC options. 1100W power supply with a -48V DC input option. |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. XClarity Controller 2 (XCC2) embedded management, XClarity Administrator, XClarity Integrator plugins, and XClarity Energy Manager. |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel. |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional service upgrades are available through services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension. |
| Weight | Maximum: 20.8 kg (45.9 lb) |
| Size | 43mm × 440mm × 773mm |

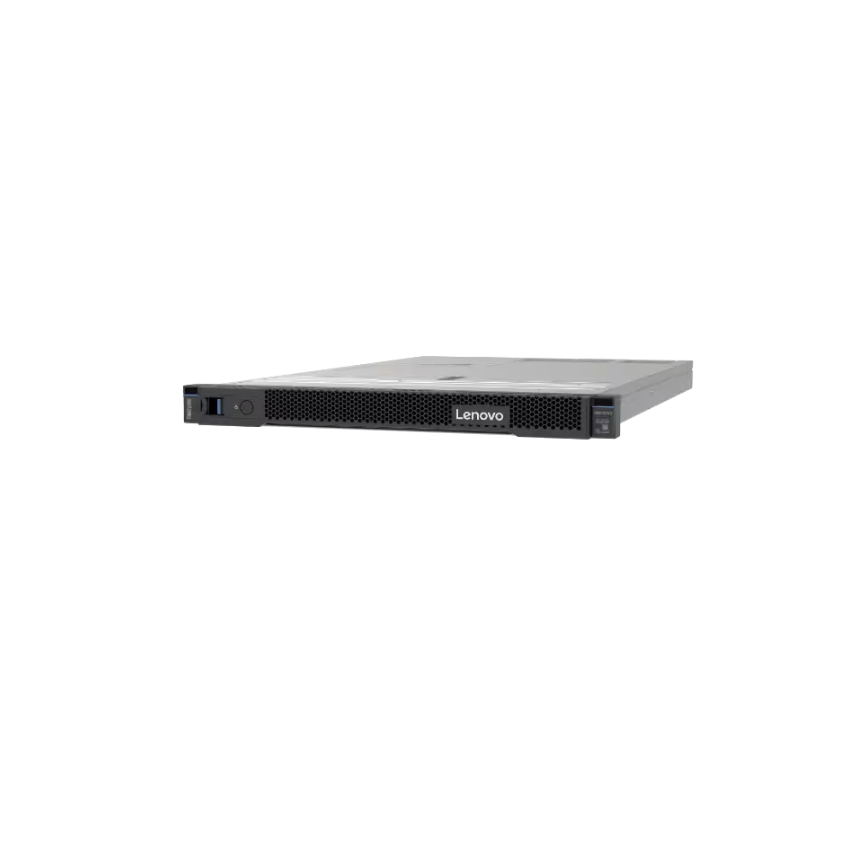

The ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V3 and consider its use in IT solutions.
The ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is based on the new 5th generation Intel Xeon Scalable processor family (formerly codenamed "Emerald Rapids").
The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
The SR630 V3 server has been designed to take advantage of the features of the 5th generation Intel Xeon Scalable processors, such as the full performance of 385W 64-core processors, support for 5600 MHz memory and PCIe Gen 5.0 support. The server also offers onboard NVMe PCIe ports that allow direct connections to 16x NVMe SSDs, which results in faster access to store and access data.
Combining performance and flexibility, the SR630 V3 server is a great choice for enterprises of all sizes. The server offers a broad selection of drive and slot configurations and offers numerous high performance features. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.
We specialize in computer hardware sales, network platform construction, and IT infrastructure maintenance. Our core offerings include servers, storage solutions, and accessories from leading brands like Dell, HP, IBM, Lenovo, and Huawei. Backed by a robust supply chain and a highly qualified technical support team, we deliver comprehensive integration solutions and reliable pre-sales and post-sales support. Under our business philosophy of "Customer First, Honest and Pragmatic, Service First," we aim to enhance your IT operational efficiency with genuine products and dedicated service.
Yes, all our products are 100% brand new and direct from the original factory, unless you specifically request refurbished or second-hand products.

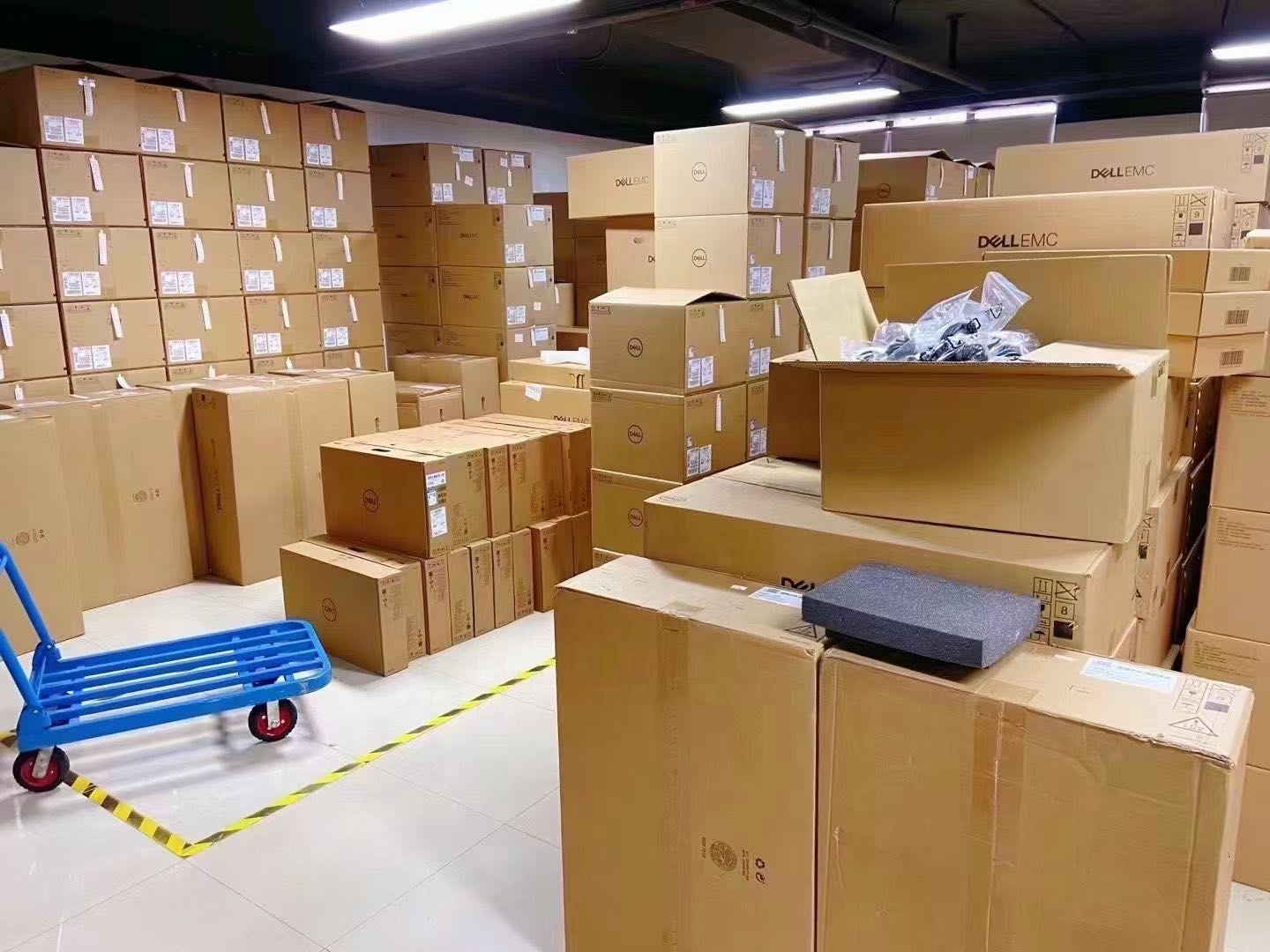

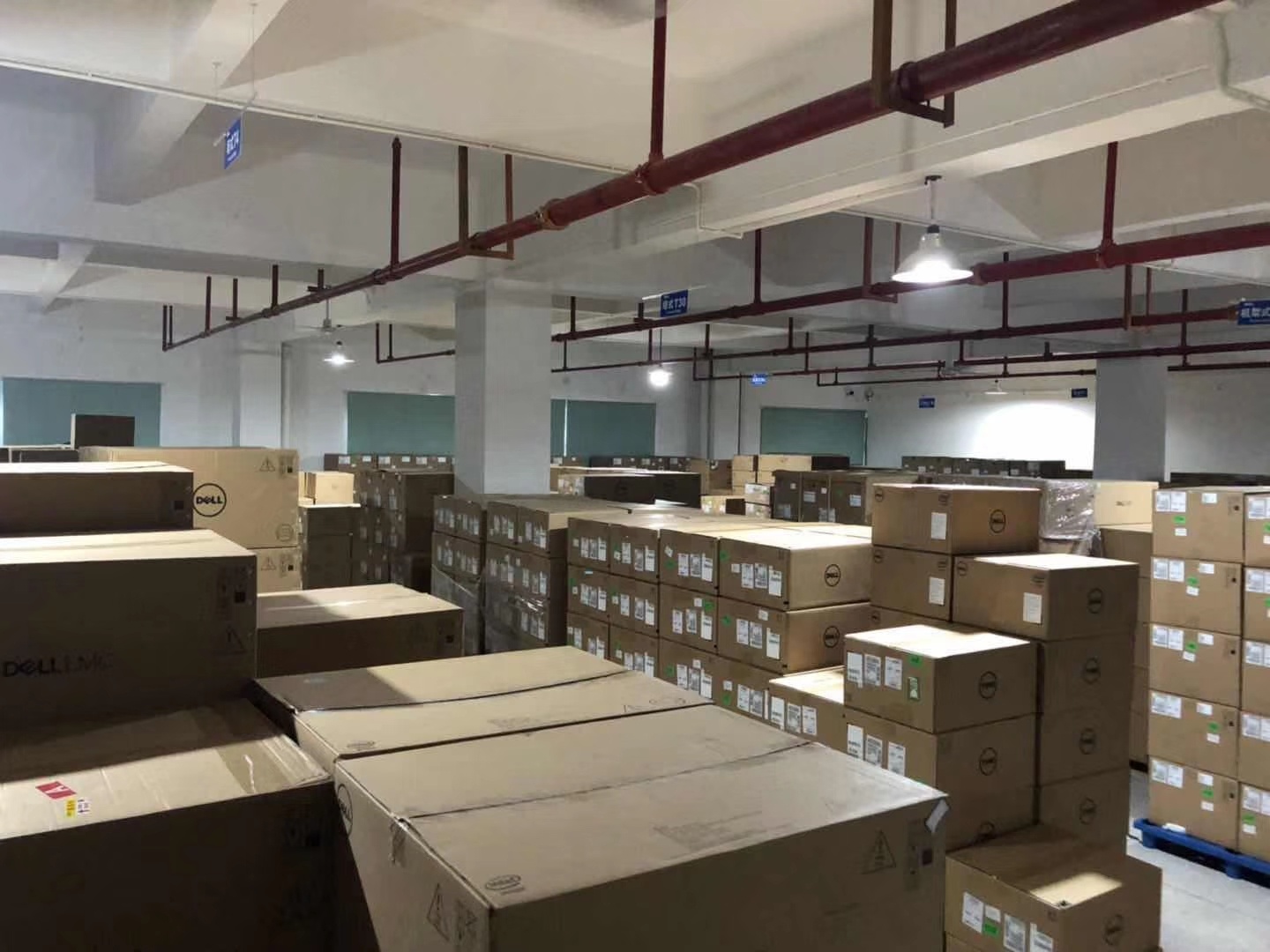

We maintain a large inventory in our warehouse. You are always welcome to coordinate a visit to inspect the goods.
As an established senior agent for leading IT brands, we offer highly competitive pricing. For large volume or bulk orders, we can secure the best possible discounts for you.
Typically, orders are processed and shipped within 1 to 3 working days after payment verification.
Our products come with original factory warranties. If needed, we can also offer customized warranty extensions up to five years.
We accept flexible orders starting from just 1 set. Please feel free to reach out with your requirements.
