Our team has 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. We are the core agent and business partner of major industry brands including Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize solutions freely according to your specific needs!

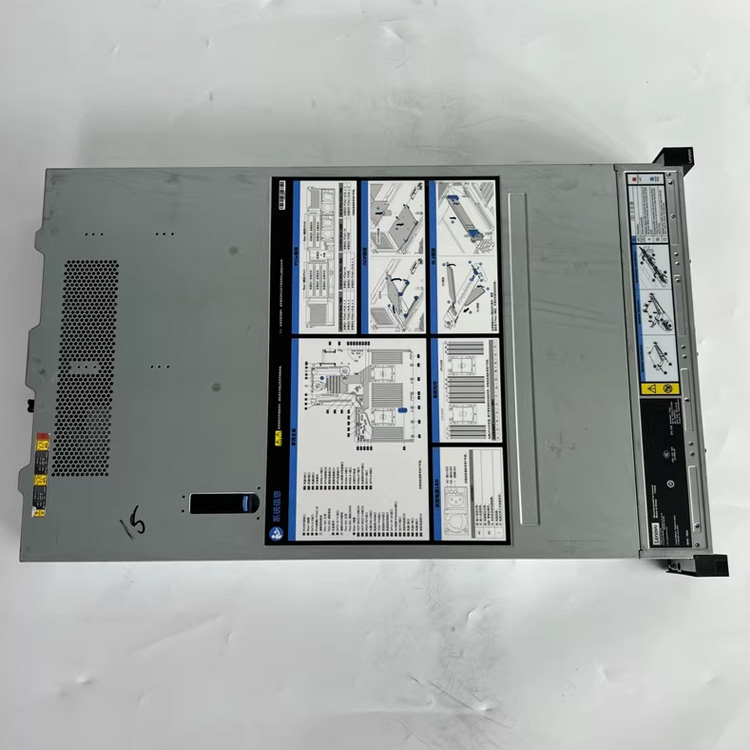

| Model | ThinkSystem SR650 V2 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | One or two third-generation Intel Xeon Scalable processor (formerly codenamed "Ice Lake"). Supports processors up to 40 cores, core speeds of up to 3.6 GHz, and TDP ratings of up to 270W. |
| Chipset | Intel C621A "Lewisburg" chipset, part of the platform codenamed "Whitley" |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR4 RDIMMs and 3DS RDIMMs are supported. DIMM slots are shared between standard system memory and persistent memory. DIMMs operate at up to 3200 MHz at 2 DPC. |
| Persistent memory | Supports up to 16x Intel Optane Persistent Memory 200 Series modules (8 per processor) installed in the DIMM slots. Persistent memory (Pmem) is installed in combination with system memory DIMMs. |
| Memory maximum | With RDIMMs: Up to 8TB by using 32x 256GB 3DS RDIMMs With Persistent Memory: Up to 12TB by using 16x 256GB 3DS RDIMMs and 16x 512GB Pmem modules |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Platinum or Gold processors), and memory mirroring. |

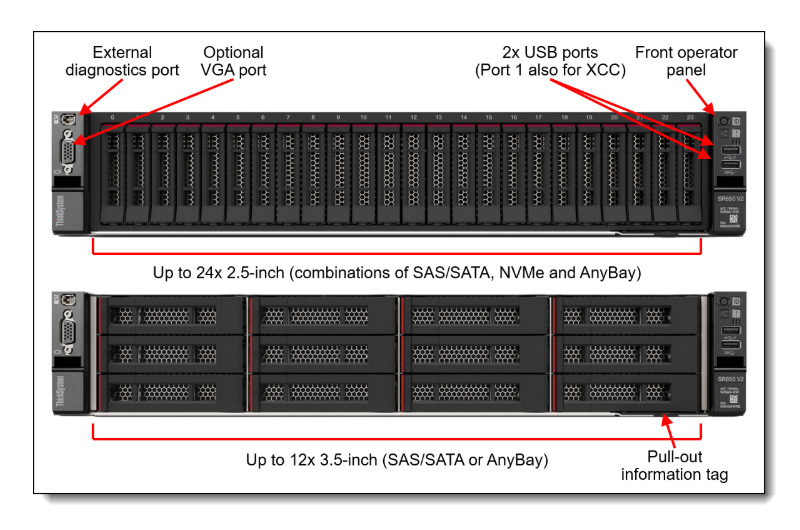

| Disk drive bays | Up to 20x 3.5-inch or 40x 2.5-inch hot-swap drive bays: * Front bays can be 3.5-inch (8 or 12 bays) or 2.5-inch (8, 16 or 24 bays) * Middle bays can be 3.5-inch (4 bays) or 2.5-inch (8 bays) * Rear bays can be 3.5-inch (2 or 4 bays) or 2.5-inch (4 or 8 bays) * Combinations of SAS/SATA, NVMe, or AnyBay (supporting SAS, SATA or NVMe) are available The server also supports these drives for OS boot or drive storage: * Two 7mm drives at the rear of the server (in addition to any 2.5-inch or 3.5-inch drive bays) * Internal M.2 module supporting up to two M.2 drives |
| Maximum internal storage | * 2.5-inch drives: * 1228.8TB using 40x 30.72TB 2.5-inch SAS/SATA SSDs * 1966.08TB using 32x 61.44TB 2.5-inch NVMe SSDs * 96TB using 40x 2.4TB 2.5-inch HDDs * 3.5-inch drives: * 440TB using 20x 22TB 3.5-inch HDDs * 307.2TB using 20x 15.36TB 3.5-inch SAS/SATA SSDs * 153.6TB using 12x 12.8TB 3.5-inch NVMe SSDs |
| Storage controller | * 12x Onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID) * Up to 12x Onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs) * NVMe Retimer Adapter (supports Intel VROC NVMe RAID) * 12 Gb SAS/SATA RAID adapters: 8, 16 or 32 ports * Up to 8GB flash-backed cache * PCIe 4.0 or PCIe 3.0 host interface * 12 Gb SAS/SATA HBA (non-RAID): 8-port and 16-port * PCIe 4.0 or PCIe 3.0 host interface |
| Optical drive bays | No internal optical drive |
| Tape drive bays | No internal backup drive |
| Network interfaces | Dedicated OCP 3.0 SFF slot with PCIe 4.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1GbE, 10GbE and 25GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |
| PCIe slots | Up to 8x PCIe 4.0 slots, all full height slots and with rear access, plus a slot dedicated to the OCP adapter. Slot availability is based on riser selection and rear drive bay selection. Slots 4, 5, and 6 (riser 2) require two processors. Slots are configured using three riser cards. Riser 1 (slots 1-3) and Riser 2 (slots 4-6) are installed in slots in the system board, Riser 3 (slots 7-8) is cabled to ports on the system board. A variety of riser cards are available. See the I/O expansion for details. For 2.5-inch front drive configurations, the server supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots. |
| GPU support | Supports up to 8x single-wide GPUs or up to 3x double-wide GPUs |
| Ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). Internal: 1x USB 3.2 G1 connector for operating system or license key purposes |
| Cooling | 6x (with two processors installed) or 5x (with one processor installed) single-rotor or dual-rotor hot swap 60 mm fans, configuration dependent. Fans are N+1 redundant, tolerating a single-rotor failure. One fan integrated in each power supply. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 500 W, 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 500 W, 750 W and 1100 W options also support 110V input supply. All power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input. |
| Video | G200 graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Models with 8x or 16x 2.5-inch front drive bays can optionally support an Integrated Diagnostics Panel. XClarity Controller (XCC) embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced and Enterprise to enable remote control functions. |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 2.0. Optional lockable front security bezel. |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional service upgrades are available through manufacturer services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for hardware and some third-party applications. |
| Weight | Maximum: 38.8 kg (85.5 lb) |

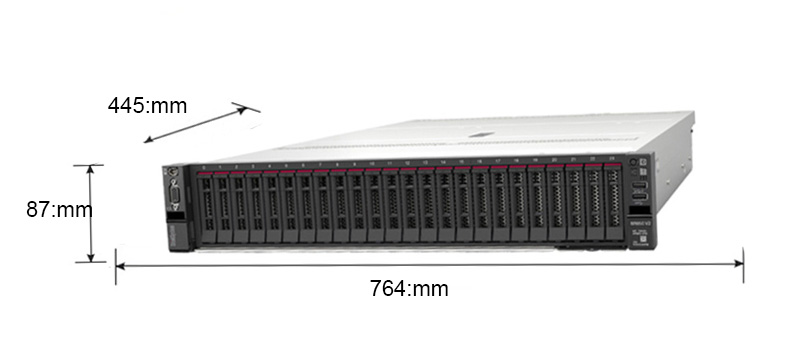

| Size | 87mm × 445mm × 764mm |
The ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V2 and consider its use in IT solutions.
The SR650 V2 server has been designed to take advantage of the features of the 3rd generation Intel Xeon Scalable processors, such as the full performance of 270W 40-core processors, support for 3200 MHz memory and PCIe Gen 4.0 support. The SR650 V2 is a very configuration-rich offering, supporting 28 different drive bay configurations in the front, middle and rear of the server and 5 different slot configurations at the rear of the server. This level of flexibility ensures that you can configure the server to meet the needs of your workload.
Combining performance and flexibility, the SR650 V2 server is a great choice for enterprises of all sizes. The server offers a broad selection of drive and slot configurations and offers numerous high performance features. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.
We are specialized in computer hardware sales and network platform construction and maintenance of IT enterprises. Our main products include Dell, HP, IBM, Lenovo, Huawei, convinced, Youyou mail and other quality solutions. We have established a sound sales network system, stable commodity supply channels, and an excellent technical support team. Based on these advantages, our business has expanded rapidly, and we have become a premier server system integrator and solution provider for numerous enterprises and institutions.
Since our inception, we have established a strong customer relationship maintenance system and support network. We are committed to offering competitive market prices, active open cooperation, and have established robust partnerships in many regions to support our clients' logistics and hardware preparedness. In a highly competitive market, we adhere strictly to the philosophy of "Customer first, honest and pragmatic, service first," focusing on providing top-tier product quality and thoughtful services to earn trust. We welcome the opportunity to apply our professional standard of quality and first-class services to support your business requirements.
Yes, all our products are brand new from the original factory. We also support requests for specific refurbished or second-hand products if required.
Yes, we maintain a well-stocked warehouse, and clients are always welcome to visit and inspect the inventory.
As a senior agent for major hardware brands, our pricing structure is highly competitive. We are happy to offer optimized volume discounts on bulk orders.
Orders are typically processed and shipped within 1-3 working days following payment confirmation.
Different products carry different manufacturer warranties. Upon request, we can coordinate extensions to provide warranty coverage for up to five years.
We support and accept starting orders from just 1 set. Please feel free to contact us with your inquiries.
