Vertex AI Server
1 / 5
The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dells and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | FusionServer G5500 V6 |
| Form Factor | 4U rack server |
| Processor | 2 Intel ® xeon ® Scalable processor Ice Lake series, up to 270W per CPU |
| Chipset | Intel C621A |
| Memory | 32 DDR4 memory slots, up to 3200MT/s |
| Local Storage | Hard disk supports hot swapping: • Supports 24 2.5-inch/3.5-inch SAS/SATA hard drives, including up to 4 NVMe SSD drives • Supports Flash storage: Dual M.2 SSDs |
| RAID support | Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| GPU | Supports 10 full height, full length, and dual width GPU acceleration cards |
| Networking | Multiple network expansion capabilities Supports 3 OCP 3.0 network cards, optional as needed, and supports notification based hot plugging |
| PCLs | Up to 16 PCIe expansion slots, including 12 x16 PCIe 4.0 standard slots, 3 OCP slots, and 1 built-in RAID card slot |
| Fan | 6 or 8 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power | 4 hot swappable power modules can be configured, supporting N+N/N+M redundancy, with optional 2000W platinum/titanium power supply, 2600W platinum power supply, and 3000W titanium power supply |
| Manage | The iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. IBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle |
| Operating system | Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Ubuntu, openEuler, etc. |
| Security features | Support power on password, administrator password TPM 2.0. Safety features such as safety panel, safety start, and lid opening detection |
| Operation temperature | 5 ºC to 35 ºC (41 ℉ to 95 ℉) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CCC, etc |
| Installation package | Support L-shaped slide, extendable slide, and rail support |
| Size | 175mm×447mm×898mm |

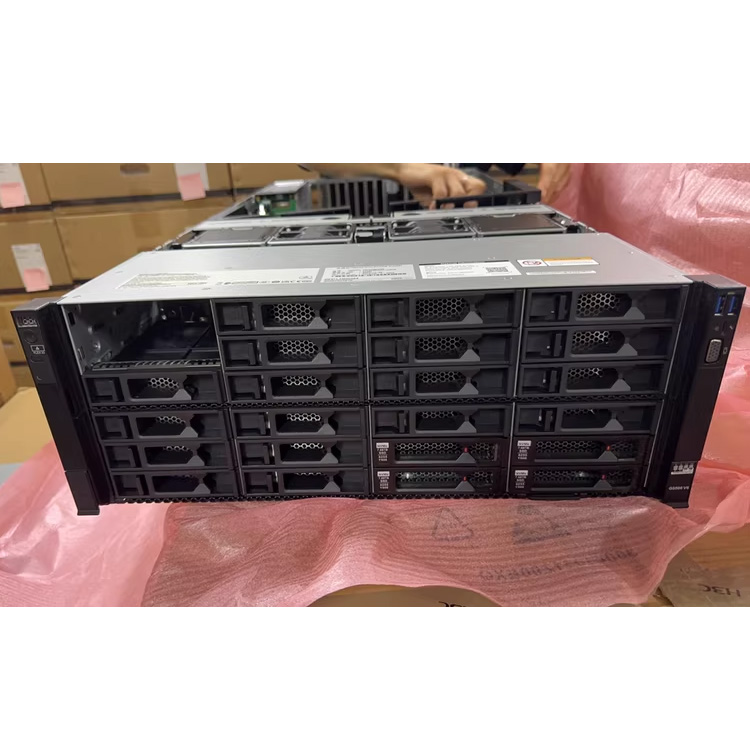

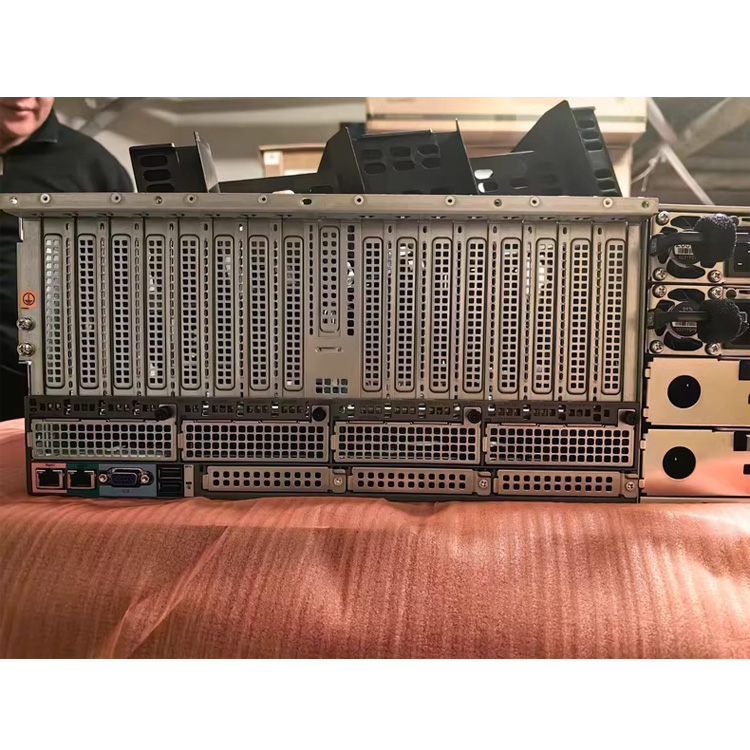

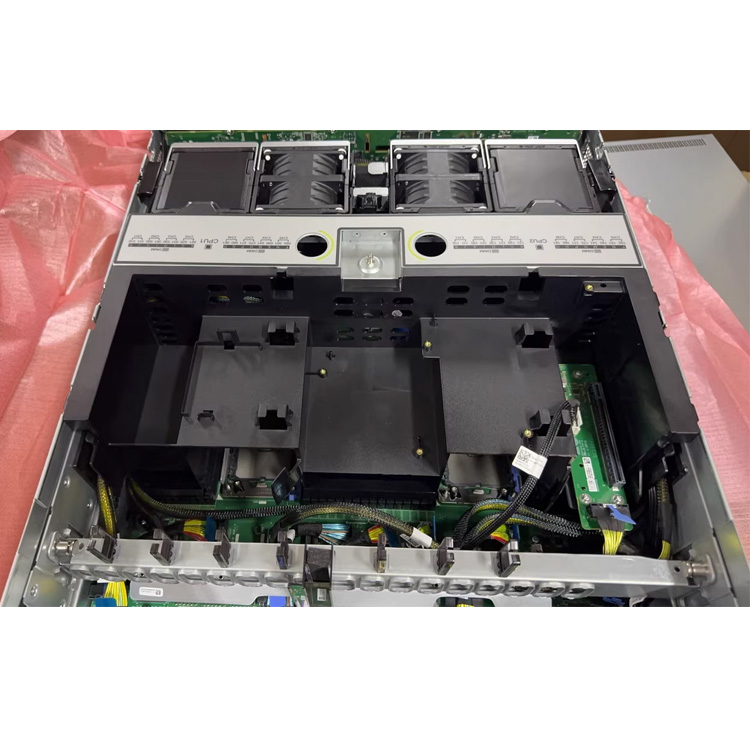

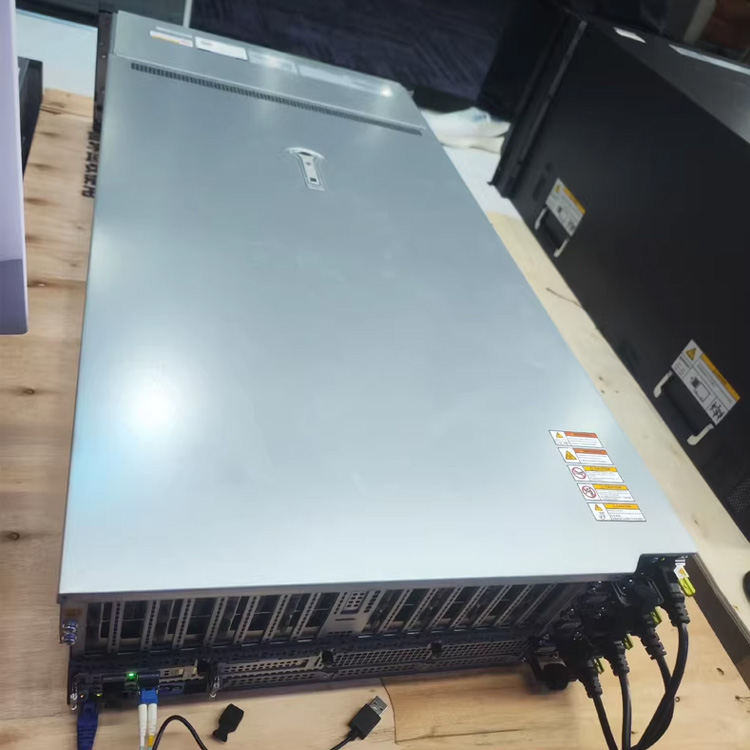

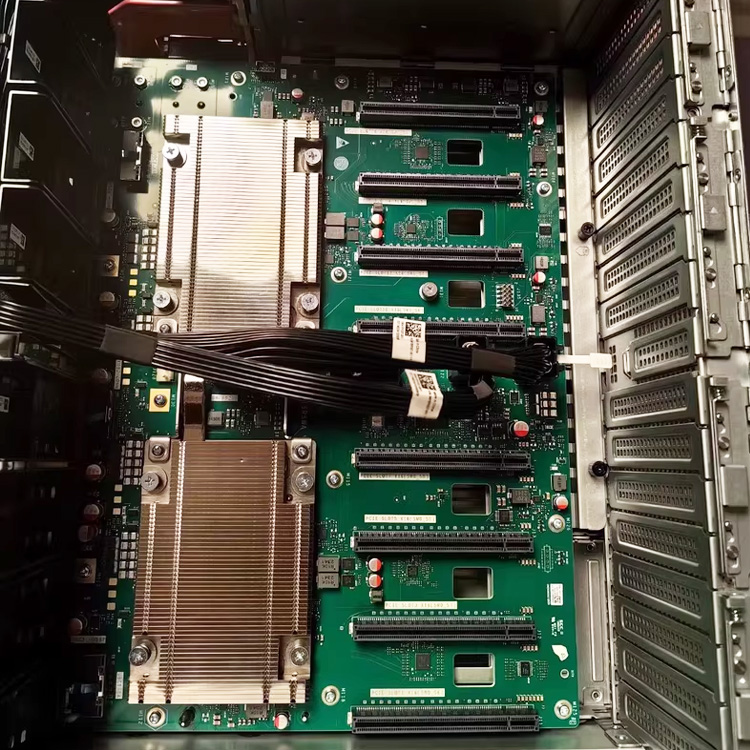

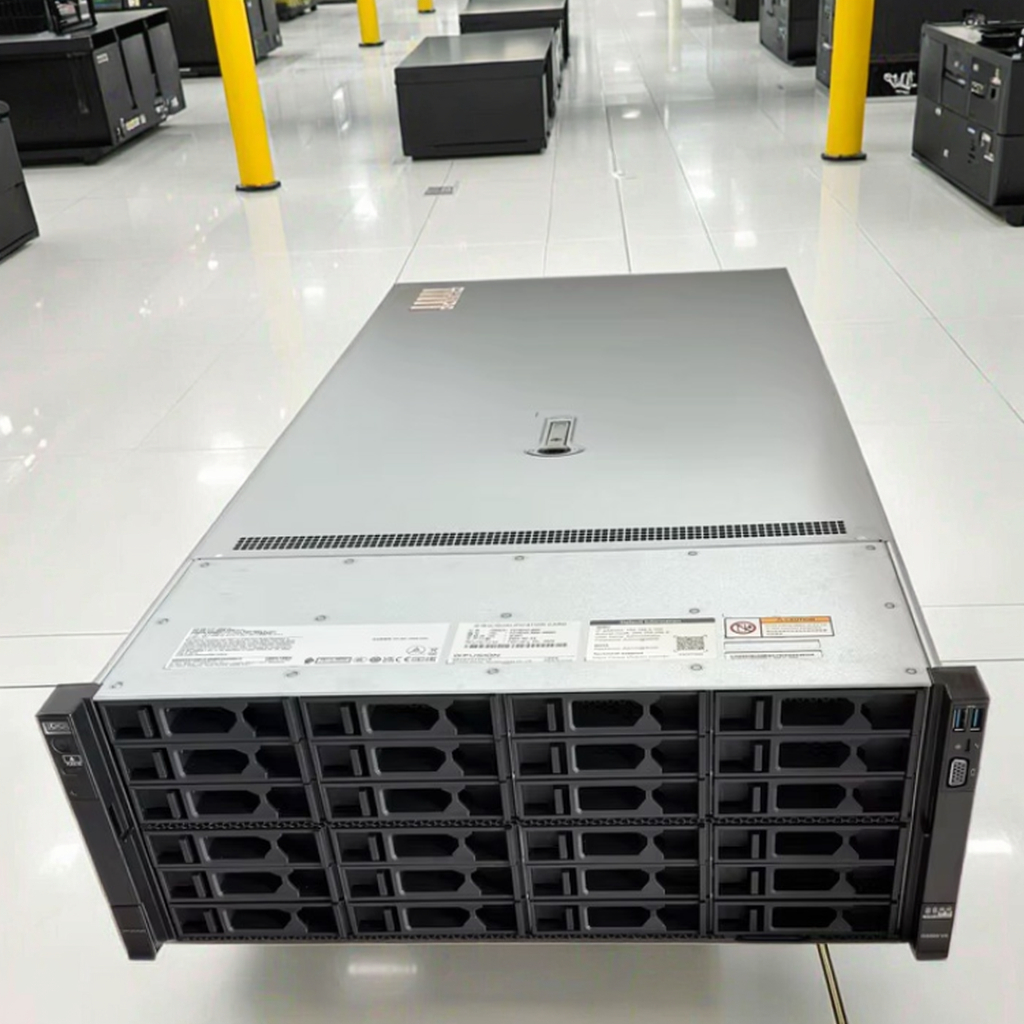

FusionServer G5500 V6 is a 4U2 AI server that supports multiple specifications of GPU cards. It has excellent computing performance, flexible and balanced configuration, efficient deployment and operation, and is suitable for AI inference, AI training HPC, Accelerated applications such as video analysis and databases, optimized for deep learning training, inference, and HPC business types, while supporting deployment in both enterprise and public clouds.
