Vertex AI Server
1 / 5
| Model | FusionServer G5200 V7 |
| Form Factor | 4U rack server |
| Processor | 1/2 fourth/fifth generation Intel ® xeon ® Scalable processor, with a maximum support of 350W per processor, capable of supporting Lanchijin processors |
| Chipset | Emmitsburg PCH |
| Memory | 32 DDR5 memory slots, up to 5600MT/s |
| Local Storage | Supports multiple different hard drive configurations, and the hard drive supports hot swapping Up to 28 3.5-inch SAS/SATA hard drives can be configured Up to 4 NVMe SSD disks can be configured Support Flash storage: • Dual M.2 SSDs |
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| GPU | Supports 4 dual width GPU acceleration cards or 10 single width GPU acceleration cards |
| Networking | Multiple network expansion capabilities Supports 2 OCP 3.0 network cards, optional as needed, supports notification hot swappable, supports PCIe 5.0 |
| PCLs | Supports up to 10 PCIe standard slots and PCIe 5.0 |
| Fan | 8 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power | 4 hot swappable power modules can be configured, PSU1 and PSU2 support 1+1 redundant backup, PSU3 and PSU4 support 1+1 redundant backup, optional 1500W platinum power supply, 2000W platinum/titanium power supply |

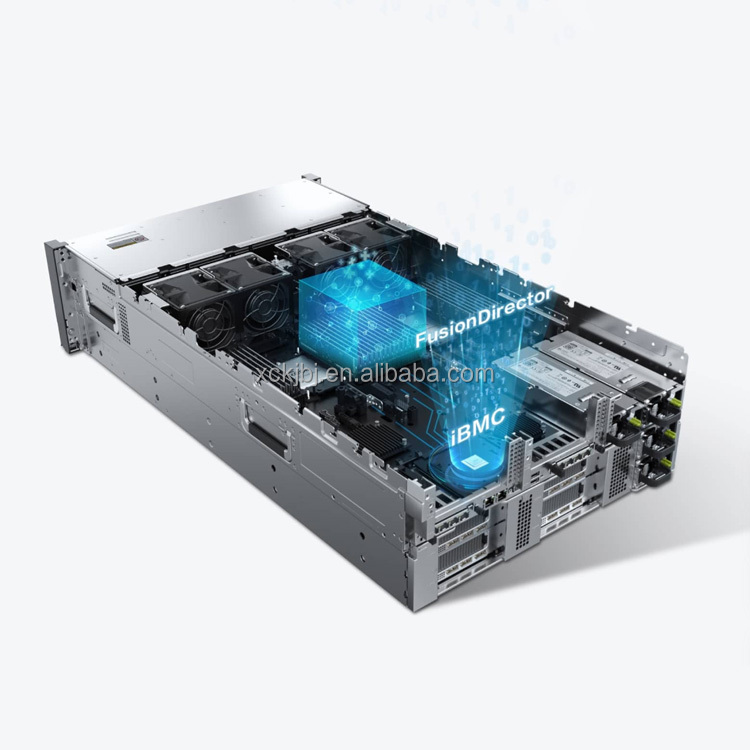

| Manage | The iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. IBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle |
| Operating system | Super Fusion Operating System FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler class |
| Security features | Support power on password, administrator password TPM 2.0, Safety features such as safety panel, safety start, and lid opening detection |
| Operation temperature | 5 º C to 35 º C (41 ℉ to 95 ℉) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Installation package | Support L-shaped slide, extendable slide, and rail support |
| Size | 175mm×447mm×798mm |
