We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. We are the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

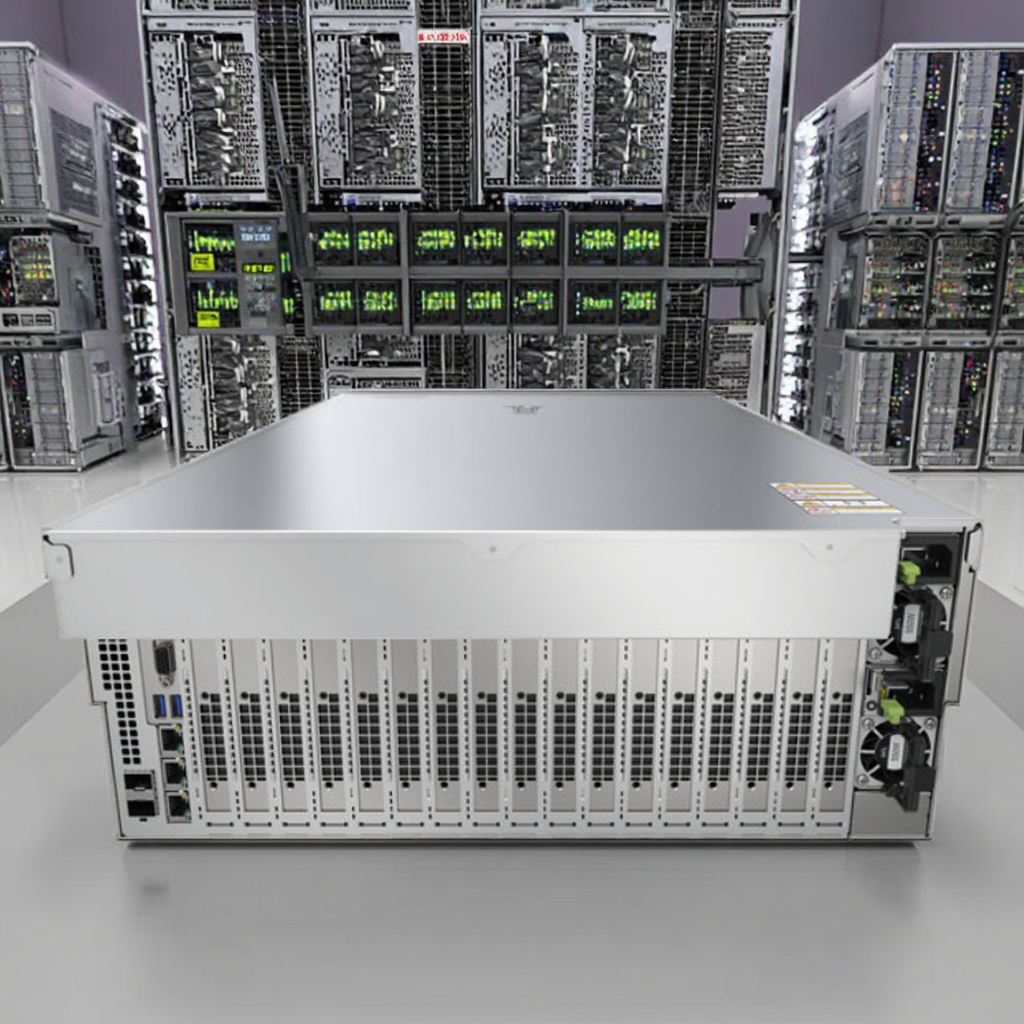

| Model | FusionServer CX5200 V5 |
| Form Factor | 4U AI server |
| Processor | 2 Intel® Xeon® Scalable processor Ice Lake series, up to 205W per CPU |
| Chipset | Emmitsburg PCH |
| Memory | 12 DDR4 memory slots, up to 2933MT/s |

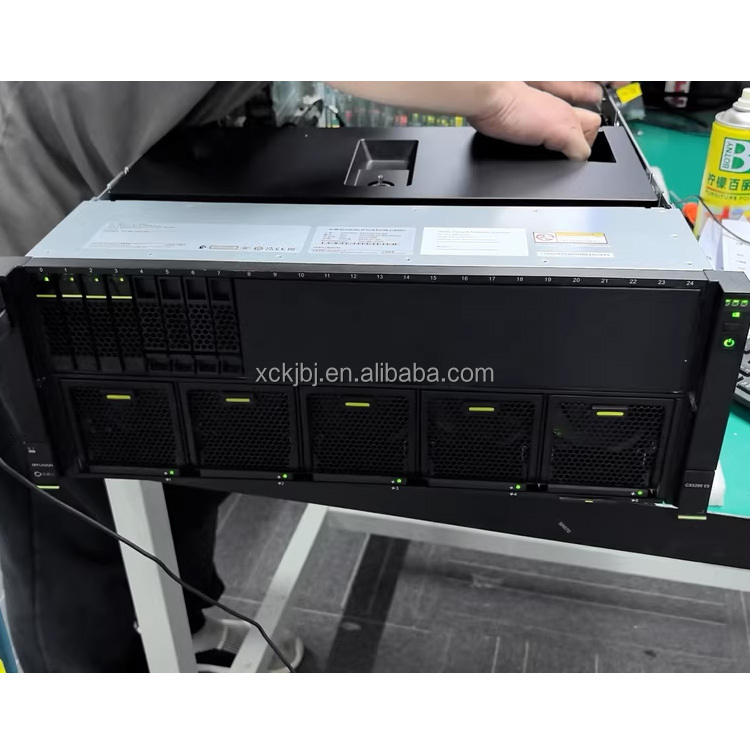

| Local Storage | Can be configured with 8 front mounted 2.5-inch SATA hard drives |
| RAID support | Supports hot swappable SATA SSD hard drives and RAID 0/1/10/5 |
| Networking | Onboard network card: 2 10GE interfaces and 2 GE interfaces |

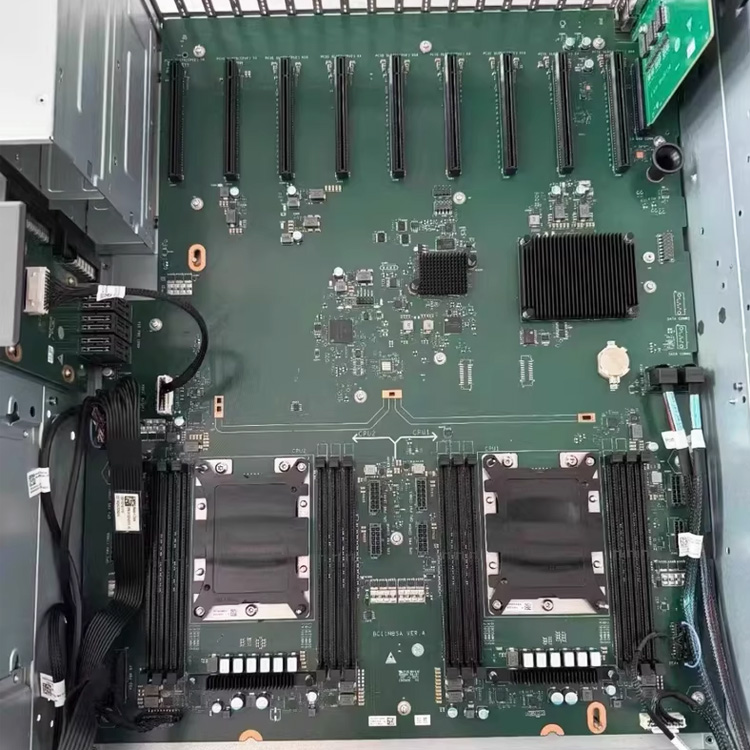

| PCIe | • Supports 9 PCIe expansion slots • Supports up to 8 dual width GPU cards |

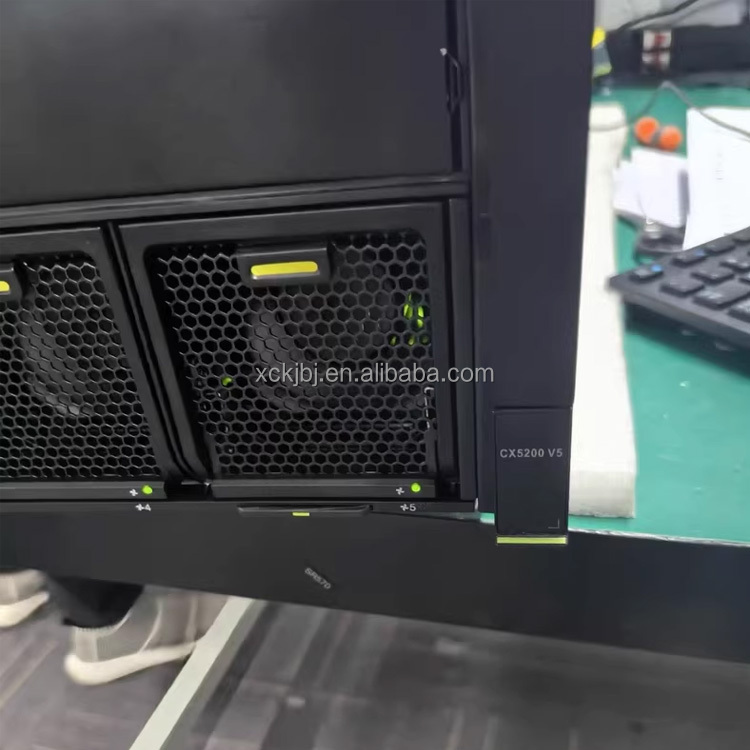

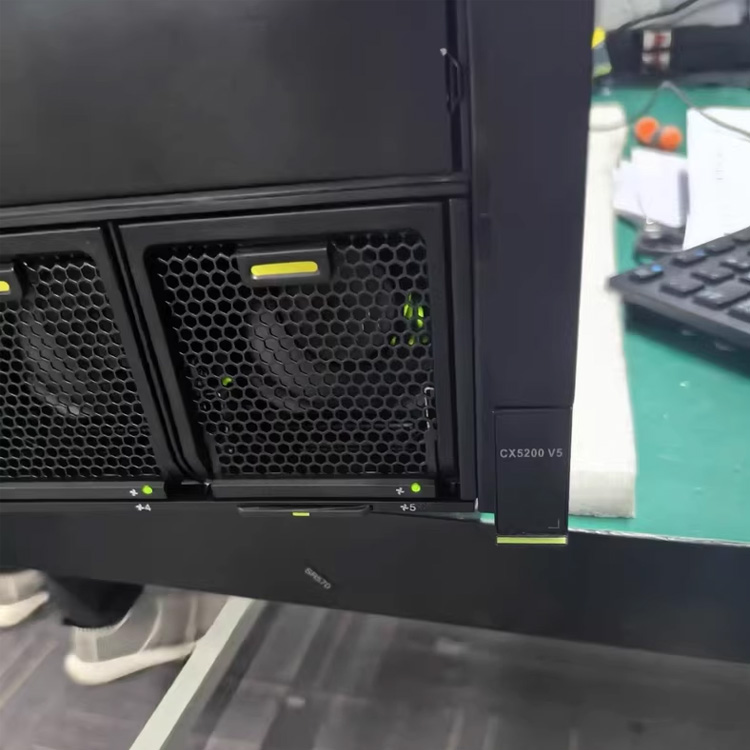

| Fan | 5 hot swappable fans, support N+1 redundancy, support unboxing free online maintenance |
| Power | Can be configured with 2 hot swappable power supplies, supporting 1+1 redundancy or 2+0 non redundancy mode 2000W AC Platinum Power Supply 2000W (Input: 220V AC~240V AC or 200V DC~288V DC) |
| Manage | The iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. iBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating system | Support Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu class |
| Security features | Support power on password, administrator password TPM 2.0, Security features such as security panels |
| Operation temperature | 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CCC |
| Installation package | Support retractable slide track |
| Size | 175mm×447mm×790mm |
CX5200 V5 is designed for artificial intelligence HPC. The AI server launched for business requirements such as cloud computing and big data processing can be applied to various application needs such as AI inference & training, HPC heterogeneous computing, graphics rendering, etc. The CX5200 V5 has excellent system performance, safety and reliability, easy operation and maintenance, and high efficiency and energy saving.
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
Yes, we maintain a comprehensive inventory at our main warehouse and welcome inspection visits.
1-3 working days after your payment is confirmed.
Different products have different warranties. If necessary, we can extend the warranty service up to five years.
We accept orders starting from 1 set. Please feel free to inquire for options.
Yes, we can coordinate and send the shipment to your domestic freight forwarder free of charge.
