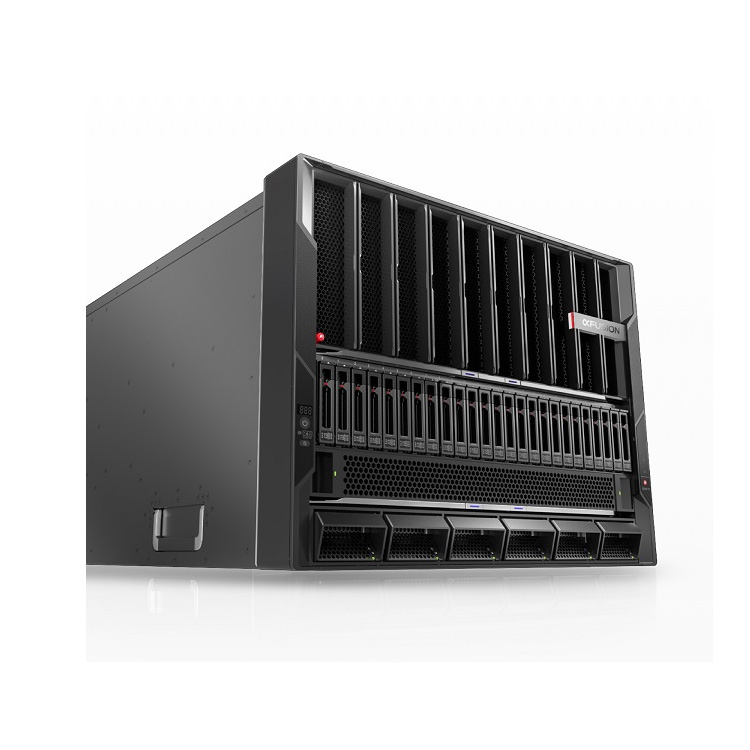

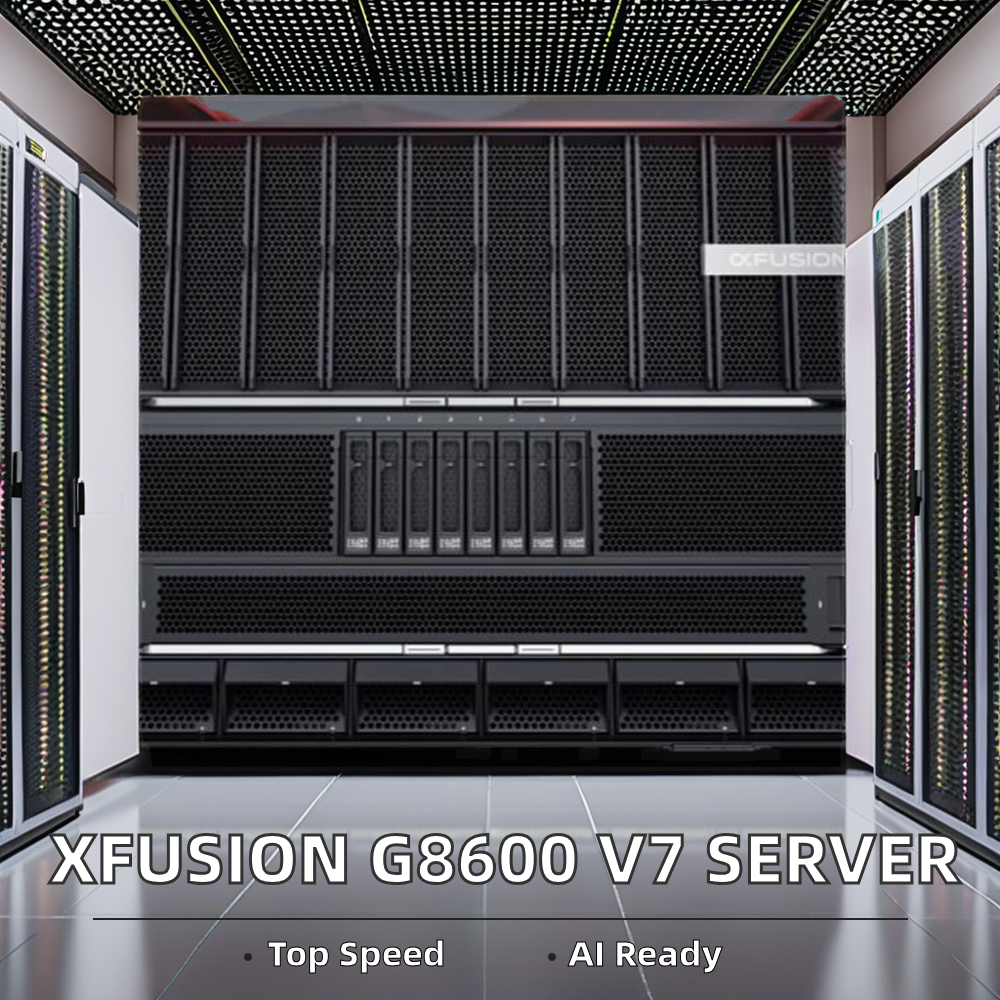

| Model | FusionServer G8600 V7 |
| Form Factor | 8U rack server |
| Processor | 2 fourth/fifth generation Intel ® xeon ® Scalable processor, supporting a maximum power of 385W per processor |
| Chipset | Emmitsburg PCH |
| Memory | 32 DDR5 memory slots, up to 5600MT/s, Maximum capacity 256GB |
| Local Storage | Support front 8 × 2.5-inch SAS/SATA hard drive + rear 8 × 2.5-inch NVMe SSD hard drive. Support Flash storage: Dual M.2 SSDs |
| RAID support | Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| GPU | Support 8GPU module |
| Networking | Multiple network expansion capabilities, supporting up to 1 OCP 3.0 network card, optional on demand, supporting notification based hot plugging |
| PCLs | Supports up to 13 PCIe expansion slots, 12 PCIe 5.0 x16 standard expansion slots, and 1 OCP 3.0 network card |
| Fan | GPU area: 10 54V fans, supporting N+1 redundancy; CPU area: 5 12V fans, supporting N+1 redundancy |
| Power | 54V power supply area: 6 hot swappable power modules can be configured, supporting cabinet level N+N redundant backup. 2+2, 3+1, 3+3, 4+2, 5+1 configurations can be selected according to the load, and a 3000W titanium power supply can be selected. 12V power supply area: Can configure 2 hot swappable power modules, support 1+1 redundancy, optional 3000W titanium power supply, 2000W titanium power supply, or 2000W platinum power supply |
| Manage | IBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features: IBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating system | Ubuntu, SUSE Linux Enterprise Server, Red Hat Enterprise Linux |
| Security features | Support power on password, administrator password TPM 2.0, Security features such as safe startup |
| Operation temperature | 5 ºC to 35 ºC (41 ºF to 95 ºF) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CQC, CE, RoHS |
| Installation package | Support L-shaped slide |
| Size | 352.8mm × 447mm × 925mm |
