Vertex AI Server
1 / 5
| Model | FusionServer G5500 V6 |
| Form Factor | 4U rack server |
| Processor | 2 Intel® Xeon® Scalable processors (Ice Lake series), up to 270W per CPU |
| Chipset | Intel C621A |
| Memory | 32 DDR4 memory slots, up to 3200MT/s |
| Local Storage | Hard disk supports hot swapping: Supports 24x 2.5-inch/3.5-inch SAS/SATA drives (including up to 4 NVMe SSD drives); Supports Flash storage: Dual M.2 SSDs |
| RAID Support | Optional configuration supports RAID 0, 1, 10, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web remote configuration. |
| GPU | Supports 10 full-height, full-length, and dual-width GPU acceleration cards |
| Networking | Multiple network expansion capabilities. Supports 3 OCP 3.0 network cards, optional as needed, and supports notification-based hot plugging. |
| PCIe Slots | Up to 16 PCIe expansion slots, including 12x x16 PCIe 4.0 standard slots, 3x OCP slots, and 1x built-in RAID card slot. |
| Fan | 6 or 8 hot-swappable counter-rotating fans, supporting N+1 redundancy. |

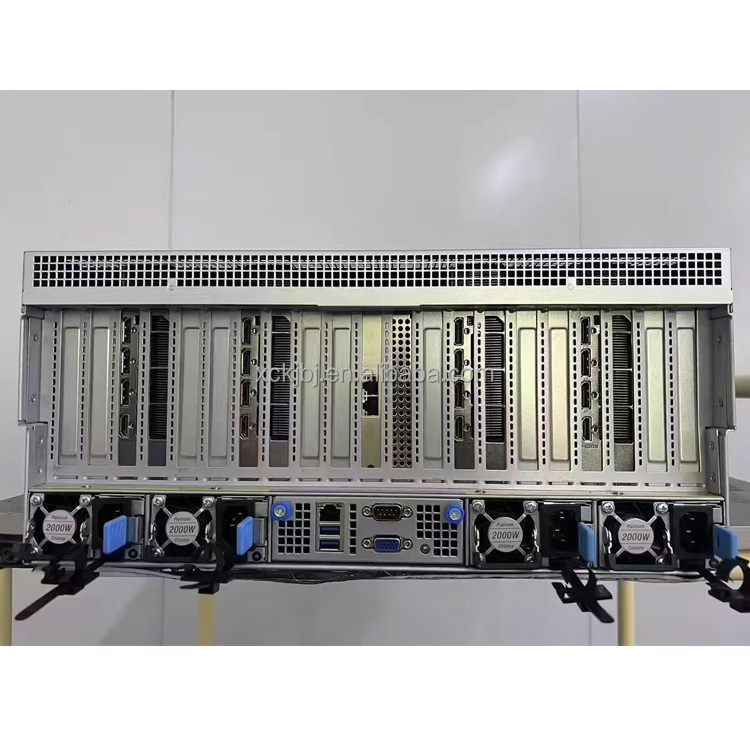

| Power | 4 hot-swappable power modules can be configured, supporting N+N/N+M redundancy, with optional 2000W platinum/titanium power supply, 2600W platinum power supply, or 3000W titanium power supply. |
| Management | The iBMC chip integrates a dedicated management GE network port, providing fault diagnosis, automated operation, maintenance, and hardware security reinforcement. iBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0; remote management via HTML5/VNC KVM; and Agentless out-of-band monitoring. FusionDirector management software is optional for advanced lifecycle automation. |
| Operating System | Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Ubuntu, openEuler, and other compatible systems. |
| Security Features | Power-on password, administrator password, TPM 2.0, security panel, secure boot, and chassis cover opening detection. |
| Operation Temp. | 5°C to 35°C (41°F to 95°F) (compliant with ASHRAE A3 and A4 standards) |
| Certification | CCC, etc. |
| Installation Kit | Supports L-shaped slide rails, extendable slide rails, and rail support. |
| Size | 175mm × 447mm × 898mm |

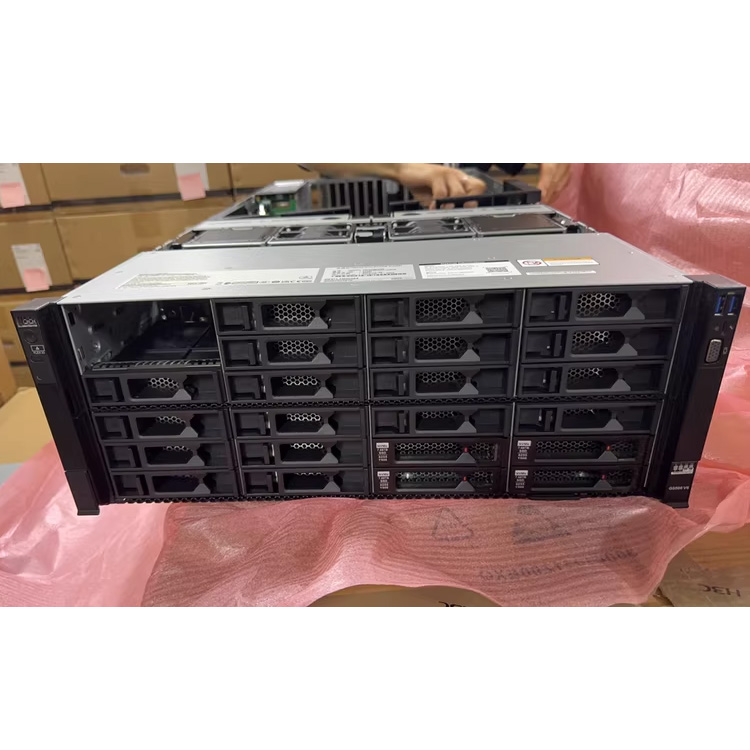

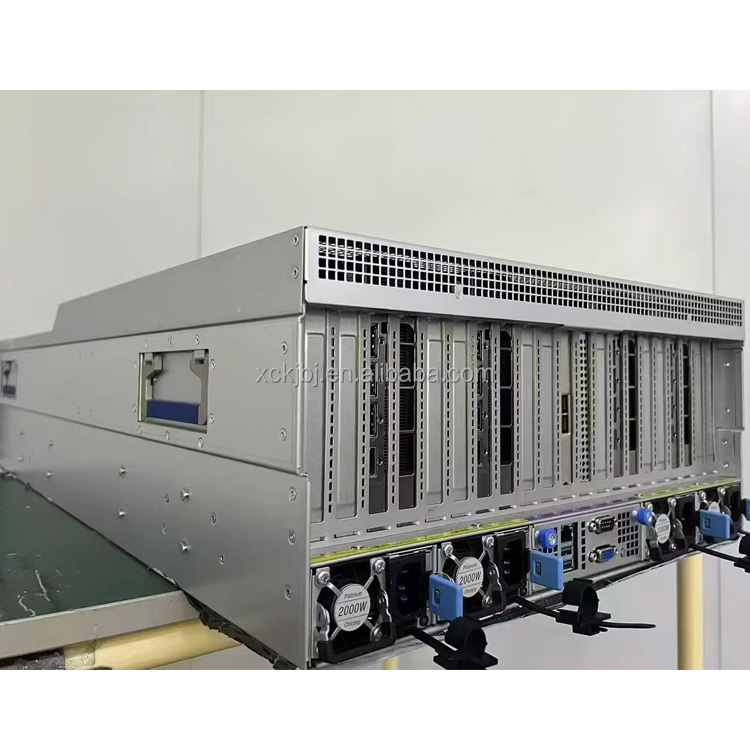

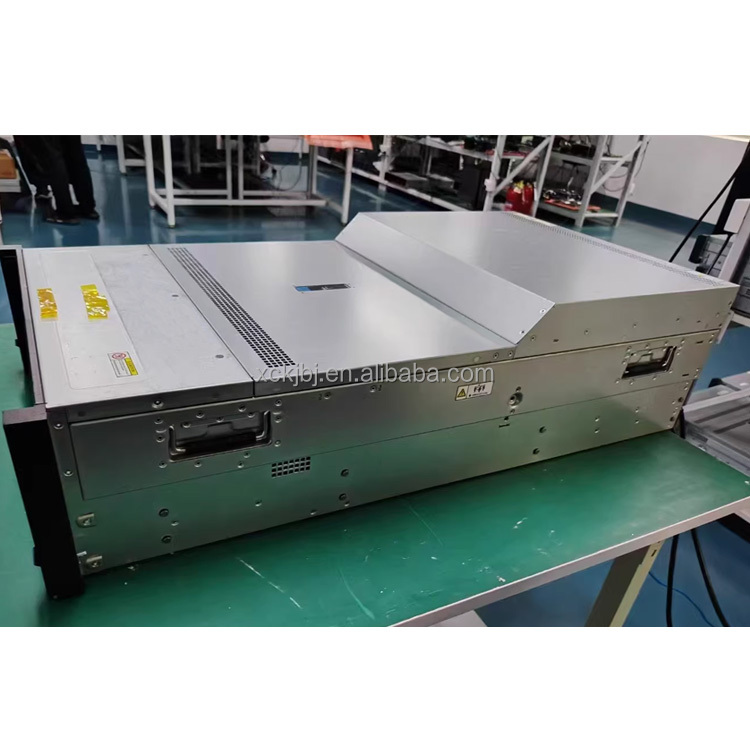

FusionServer G5500 V6 is a 4U AI server supporting multiple GPU card specifications. It delivers outstanding computing performance, flexible configurations, and highly efficient deployment. Optimized for AI inference, AI training, HPC, video analytics, and database acceleration, it is ideal for both enterprise data centers and public cloud environments.
We specialize in multiple brands of Rack Servers, Storage Systems, and various system accessories. All designs can be customized specifically according to your technical requirements. We welcome your inquiries!
