Vertex AI Server
1 / 5

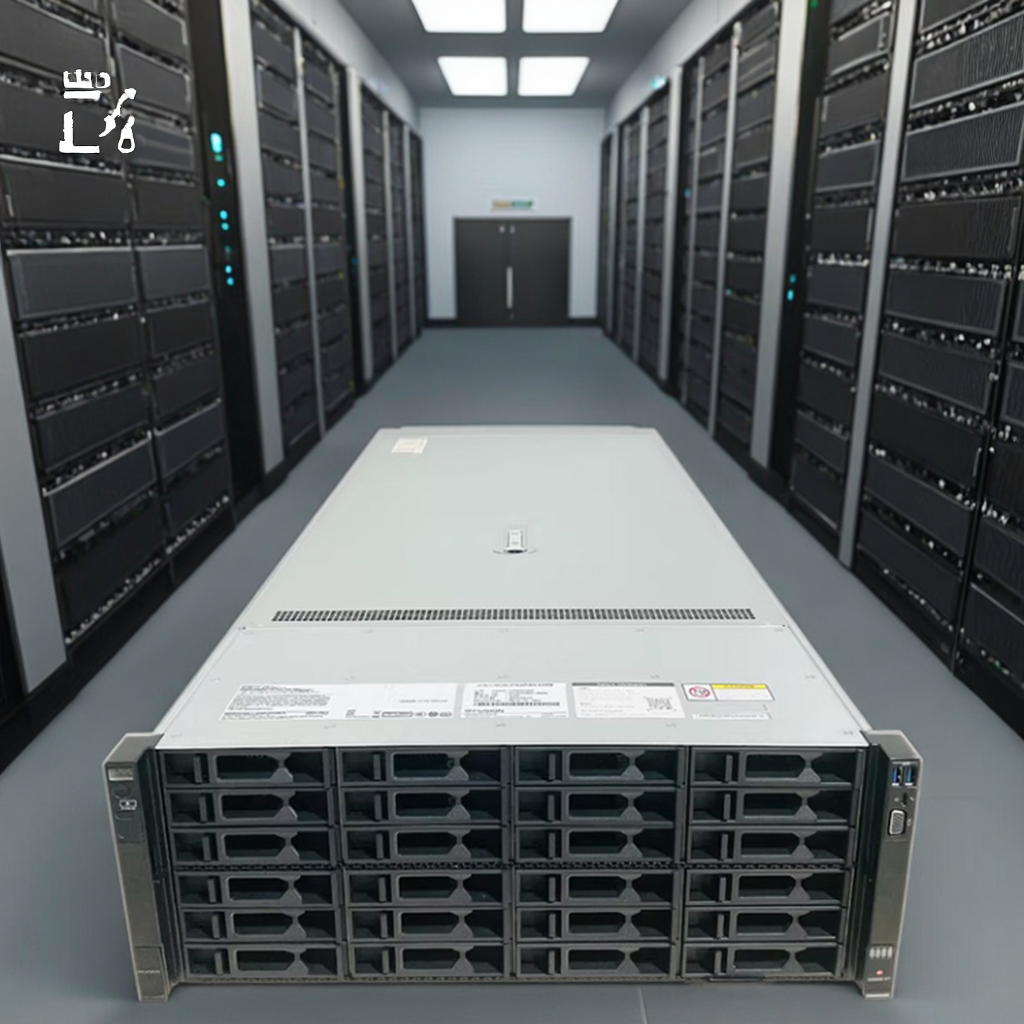

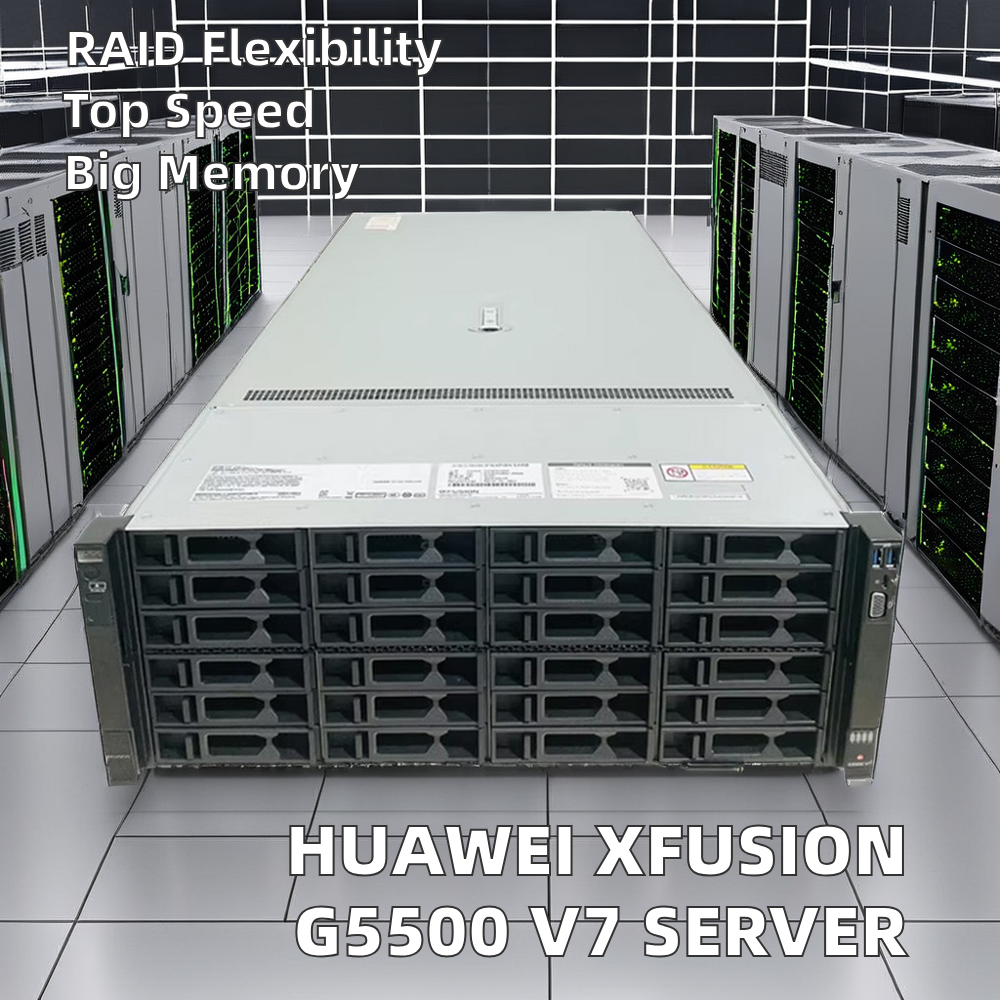

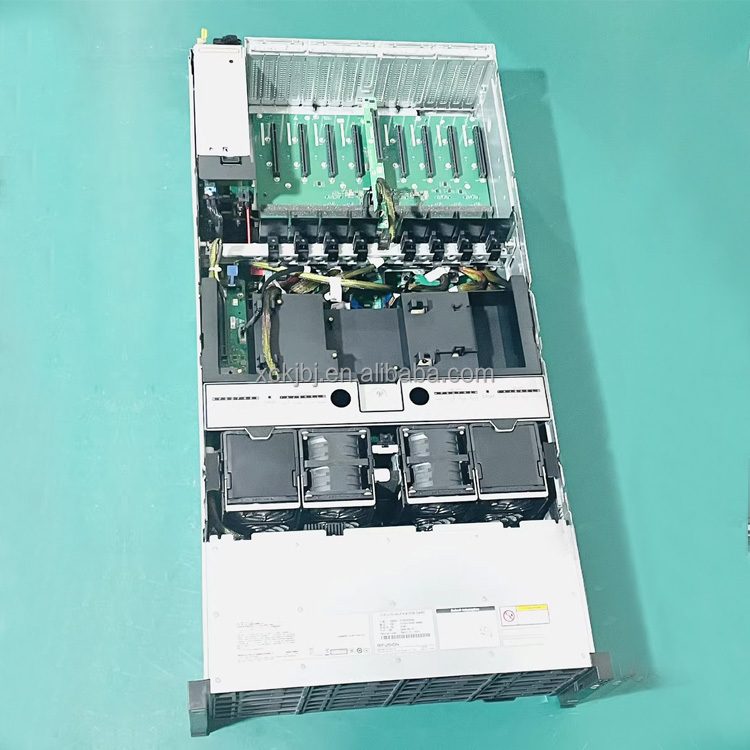

| Model | FusionServer G5500 V7 |
| Form Factor | 4U rack server |
| Processor | 2 Intel ® xeon ® Scalable processor Ice Lake series, up to 270W per CPU |
| Chipset | Emmitsburg PCH |
| Memory | 32 DDR5 memory slots, up to 5600MT/s, Maximum capacity 256GB |
| Local Storage | Supports multiple different hard drive configurations, and the hard drive supports hot swapping: Up to 24 2.5-inch/3.5-inch SAS/SATA hard drives can be configured; Up to 12 NVMe SSD drives and 8 SATA/SAS hard drives can be configured; Support Flash storage: Dual M.2 SSDs |
| RAID support | Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |

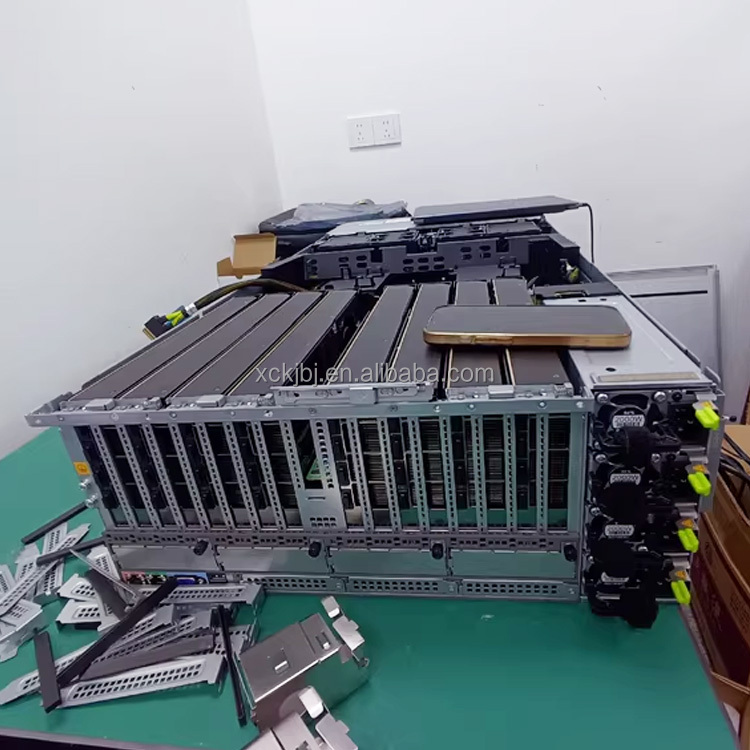

| GPU | Supports 10 dual width GPU acceleration cards |
| Networking | Multiple network expansion capabilities, supporting 3 OCP 3.0 network cards |

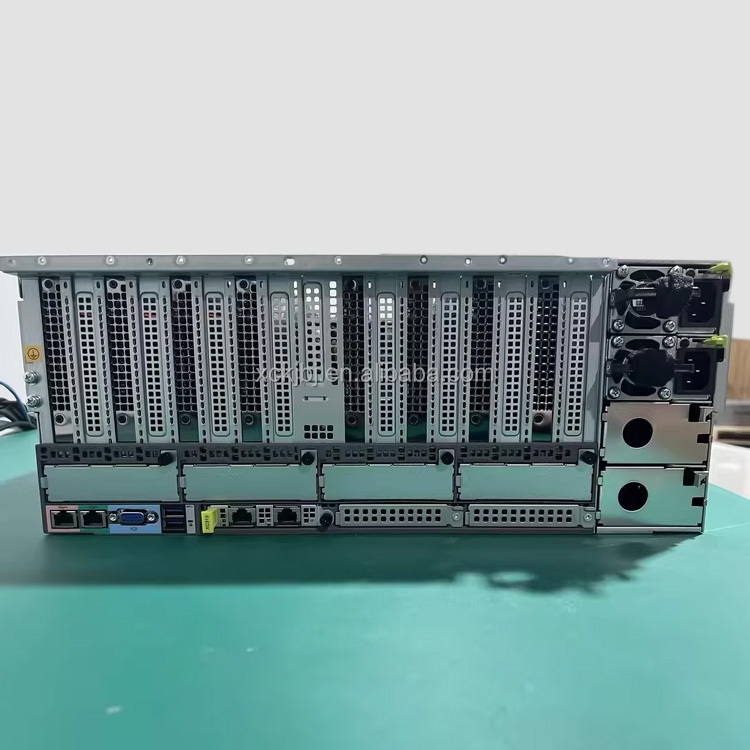

| PCLs | Up to 14 PCIe 5.0 standard slots, including 10 GPU card specific slots |
| Fan | 6/8 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power | 4 hot swappable power modules can be configured, supporting N+N/N+M redundancy, with optional 2000W platinum/titanium power supply, 2600W platinum power supply, and 3000W titanium power supply |
| Manage | The iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. iBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle |
| Operating system | Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Ubuntu, openEuler, etc. |
| Security features | Support power on password, administrator password TPM 2.0, Safety features such as safety panel, safety start, and lid opening detection |
| Operation temperature | 5 º C to 35 º C (41 ºF to 95 ºF) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CE, UL, CCC, FCC, VCCI, RoHS |
| Installation package | Support L-shaped slide, extendable slide, and rail support |
| Size | 175mm×447mm×898mm |
