Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Processor | Supports 2 AMD EPYCs ™ 7002/7003 processors, TDP 280W |
| Raid | Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card |
| Gpu | Supports 8 dual width GPUs, TDP 450W |
| Memory | Supports 32 DDR4 memory, 3200MT/s, RDIMM/LRDIMM |
| Local Storage | Supports 8 3.5 "/2.5" SAS/SATA hard drives (optional support for 2/4 U.2 NVMe SSDs). Supports 1 onboard M.2 SSD. |
| PCLs | Supports up to 11 standard PCIe 4.0 slots. Optional support for 1 OCP3.0 network card. |
| Fan | 8*8056 high-speed fans, N+1 redundancy, supporting hot swapping |
| Power | 4*platinum level CRPS power modules (2000W/2700W), supporting 2+2/3+1 redundancy mode |
| Manage | Integrated BMC management chip AST2500, supporting IPMI2.0, SOL, KVM, virtual media. |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection. |

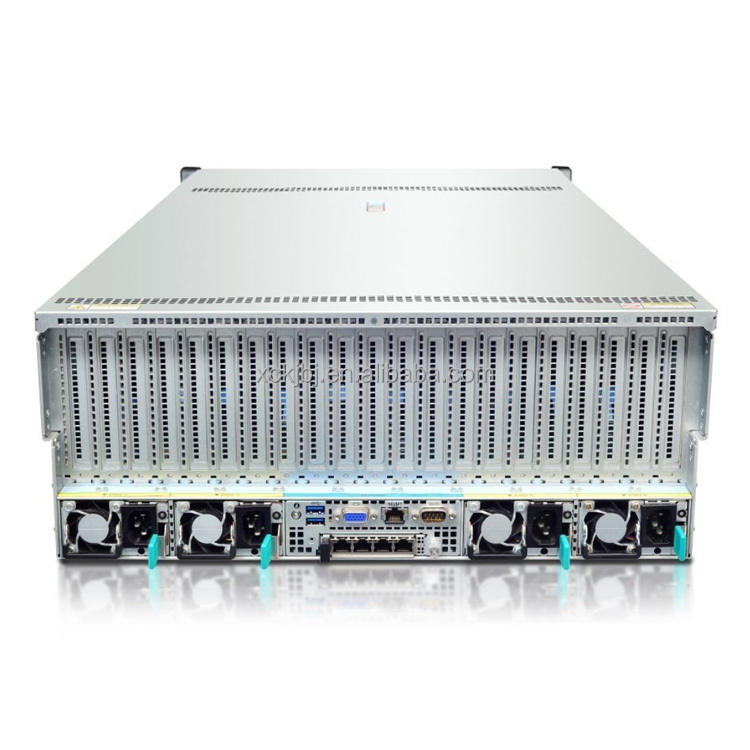

| Port | Front: 2 USB 3.0, 1 VGA. Rear: 1 serial, 2 USB 3.0, 1 VGA, 1 RJ45 management. |
| Size | Width 448mm x Height 175mm x Depth 822mm |
| Temperature | Operating: 5°C - 35°C; Storage: -40°C - 65°C |
| Humidity | Work: 8% to 90%; Storage: 5% to 95% (non condensing) |
| OS Support | Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, etc. |

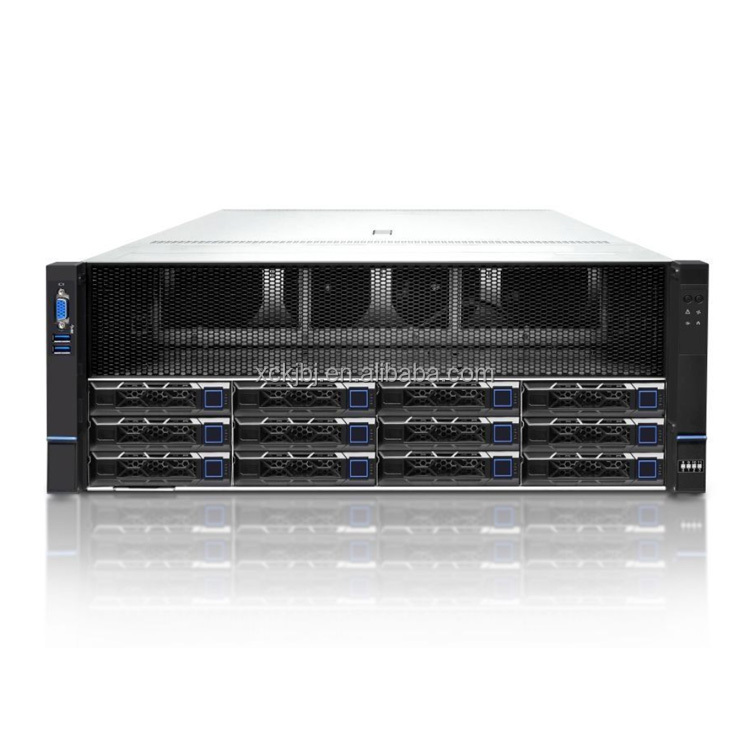

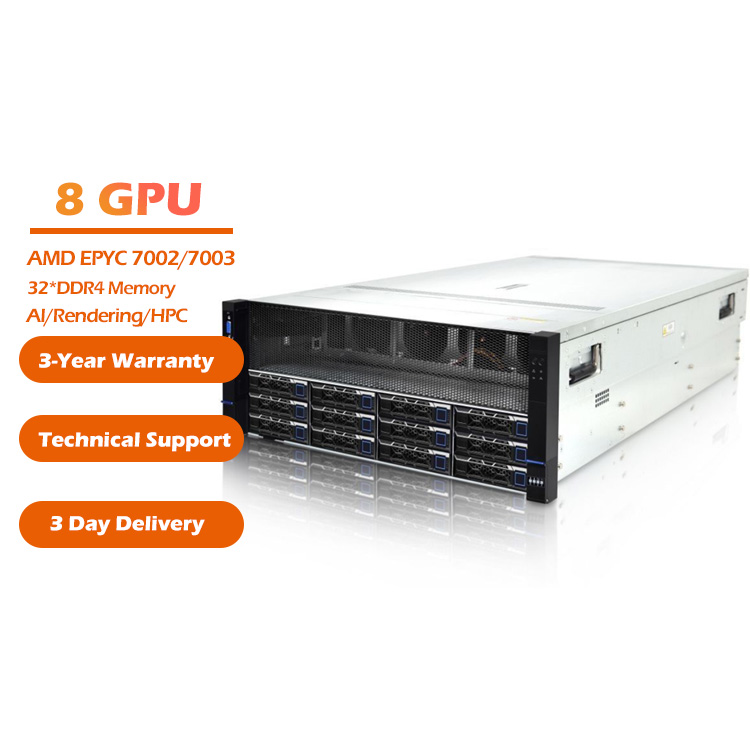

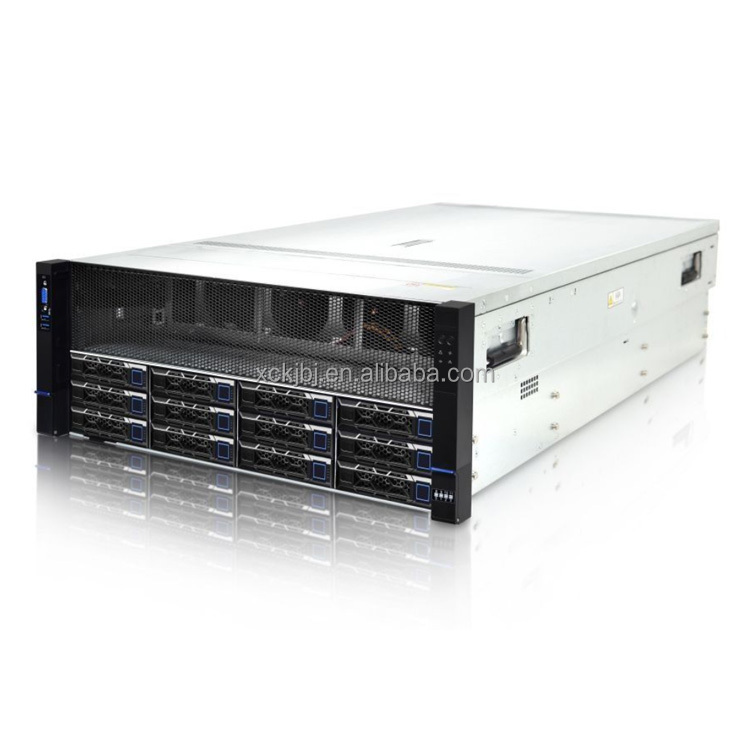

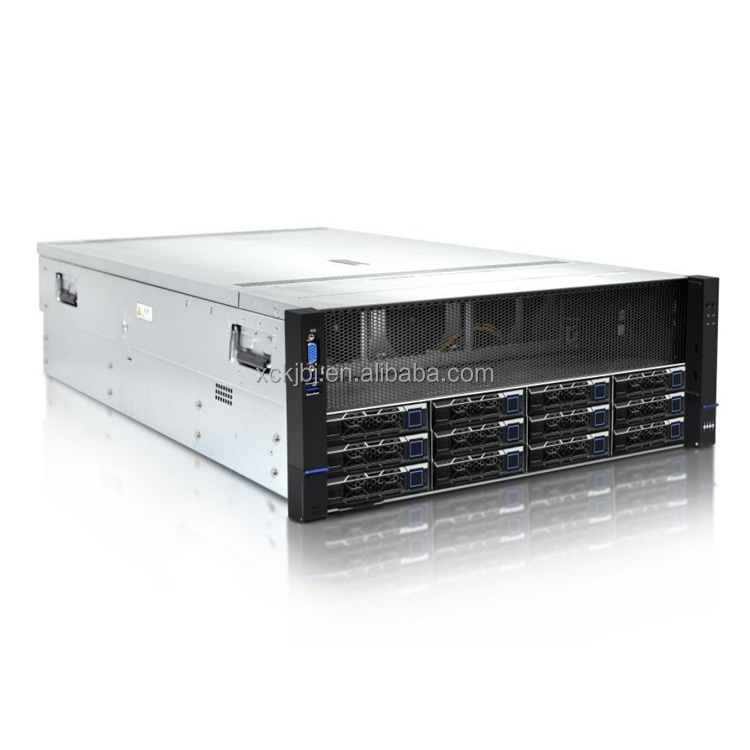

A versatile dual 4U 8-GPU server based on AMD SP3 platform, supporting the full range of Rome and Milan CPUs, and supporting 8 450W dual wide GPUs. It has excellent performance, strong scalability, and high reliability, and is suitable for applications such as artificial intelligence, large model inference, rendering, and cloud gaming.
Supports 2 AMD EPYCs ™ 7002/7003 series processors, up to 128 cores. Supports 8 450W GPU cards, providing ultimate heterogeneous computing power. GPU direct design, no need for PCIe Switch adapter.
Supports up to 11 PCIe 4.0 standard slots. Optional 1 OCP 3.0 network card. Supports 8 3.5 "/2.5" SAS/SATA hard drives, optional support for 2/4 NVMe SSDs, balancing capacity and high performance.
Key components designed with redundancy and hot swapping. Integrated intelligent management chip, supporting IPMI2.0, KVM, and remote system level intelligent management.
