The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | Custom/OEM |
| Form Factor | 7U rack server |
| Processor | Supports 2 AMD EPYC™ 9004/9005 series processors, maximum power 500W |
| Memory | Supports 24 DDR5 memory slots, 1DPC, up to 6400MT/s |
| Local Storage | Supports 8 3.5"/2.5" SAS/SATA hard drives (optional support for 2/4 U.2 NVMe SSDs) 1 M.2 SSD, 2280 & 22110 sizes, supports PCIe 3.0 x4 |
| PCIe Slots | Supports up to 11 standard PCIe 5.0 slots. Optional support for 1 OCP 3.0 network card, PCIe 5.0 x8. Optional 4x1GbE/2x10Gb SFP+/2x25Gb SFP28 or other standard OCP 3.0 network cards |
| Fan | Heat dissipation optimization design, CPU computing module and GPU computing module are isolated for heat dissipation, and the fan supports hot plugging and intelligent speed regulation |
| Power | Optional 4 CRPS power supplies, supporting 2+2/3+1 redundancy; Optional 6 CRPS power supplies, supporting 3+3 redundancy; Optional 2000W/2700W/3200W/3600W power modules; The power module supports hot swapping |
| Management | Integrated BMC management chip AST2600, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions. Provide 1 1Gbps RJ45 dedicated management port |
| Safety | Optional TPM security module, supports chassis open cover intrusion detection, and locks the chassis cover (tool free). Supports BMC dual flash redundancy design |

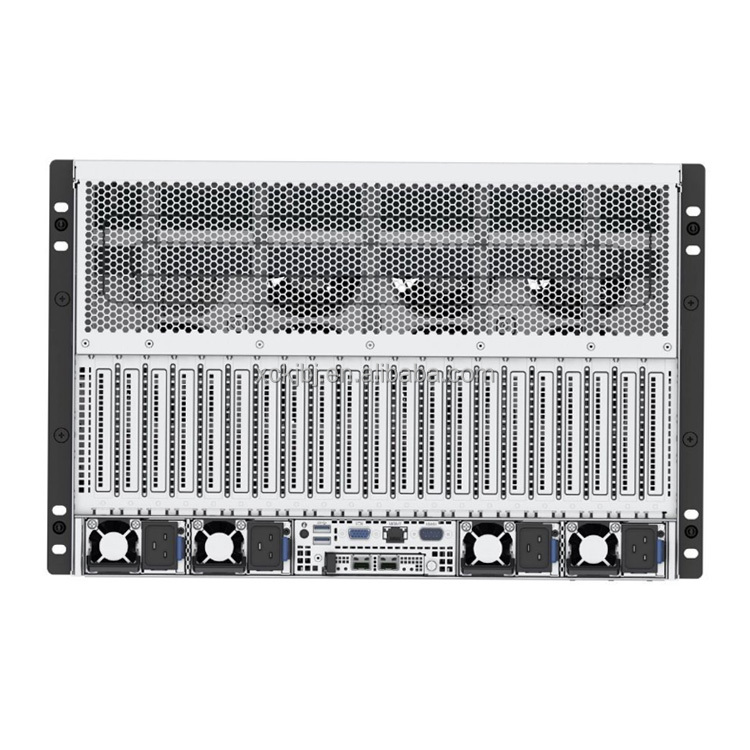

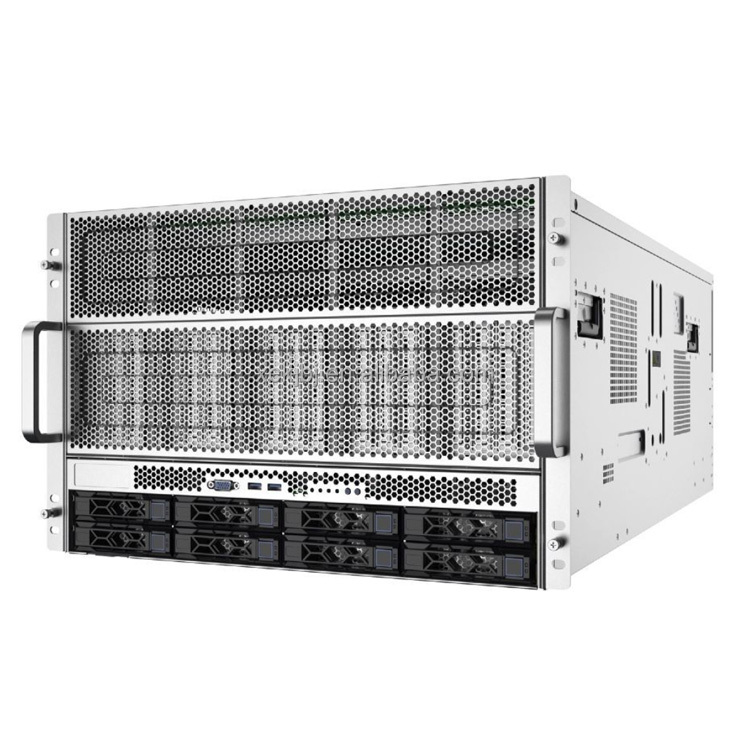

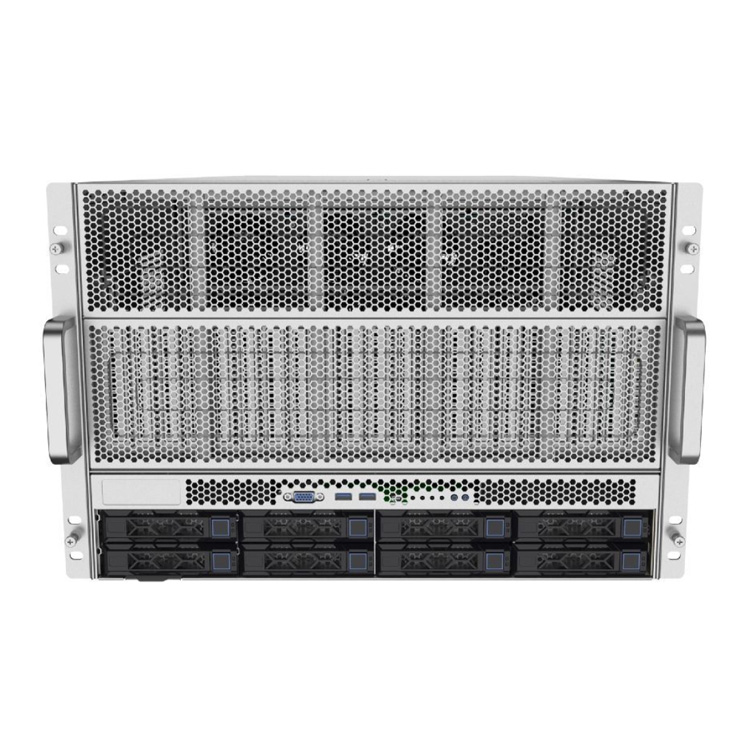

| Ports | Front end: 2 USB 3.0 ports, 1 VGA port. Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 management port |
| Size | Width 448mm x Height 306mm x Depth 896mm |
| Operation Temperature | Operating temperature: 5°C - 35°C; Storage temperature: -40°C - 65°C |
| Humidity | Relative humidity at work: 8% to 90% (without condensation); Storage relative humidity: 5% to 95% (non condensing) |
| Operating System Support | Support mainstream operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, etc |
A versatile 8-card GPU server based on AMD SP5 processor platform, supporting 9004/9005 series CPUs and 8 600W GPUs, with excellent performance, strong scalability, and high reliability, suitable for applications such as artificial intelligence, large model inference, rendering, and cloud gaming.

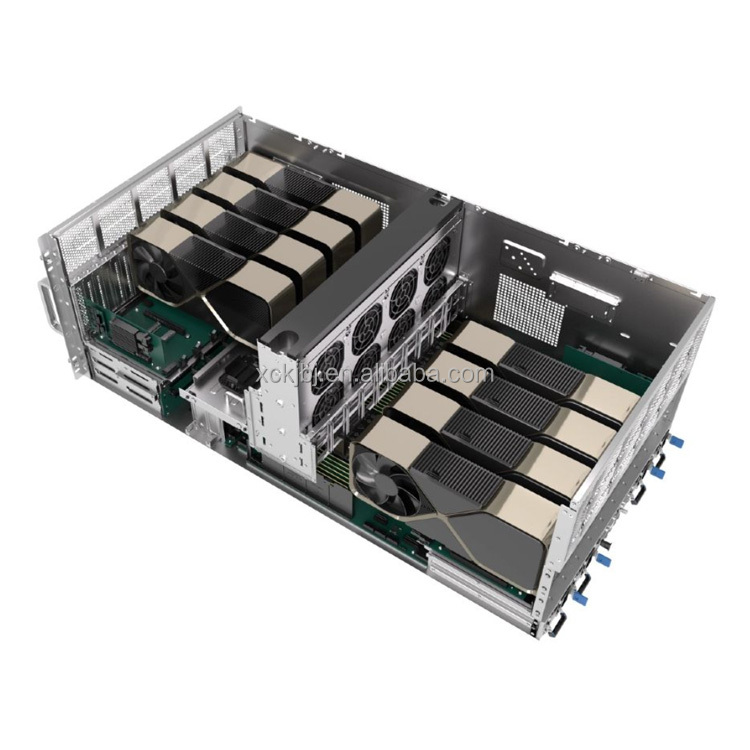

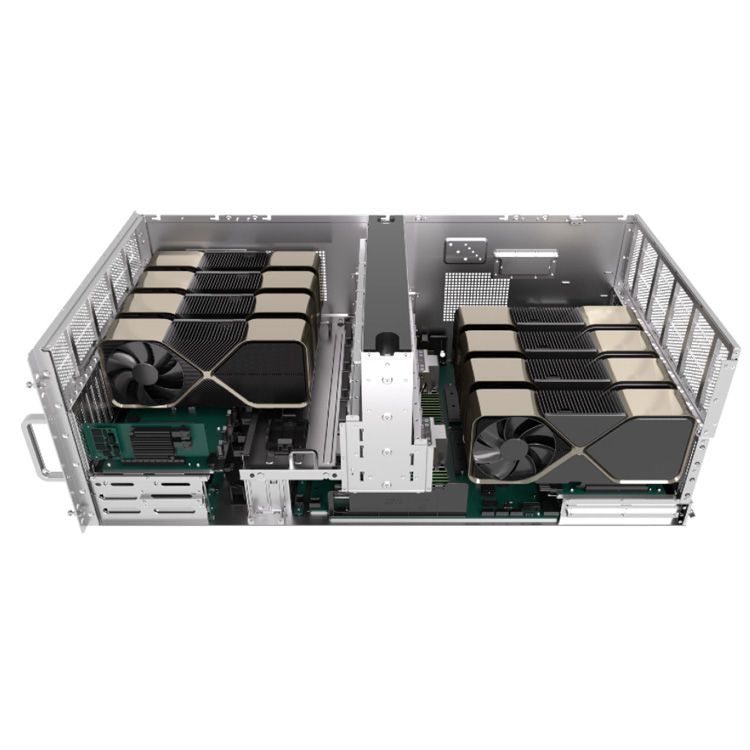

Supports 2 AMD EPYC™ 9004/9005 series processors, maximum TDP 500W. Supports 8 600W GPUs, each card supports PCIe 5.0 x16, providing efficient heterogeneous computing power. CPU-GPU direct design, efficient and low latency, significantly improves data transmission efficiency compared to PCIe Switch architecture.
Super compatibility, optional support for fan card or turbo card. Supports 8 quad width fan cards or 8 dual width turbine cards.
Supports up to 11 PCIe 5.0 standard slots, with multiple PCIe configurations to choose from. Optional 1 OCP 3.0 network card, multiple speed options available. Supports 8 3.5"/2.5" SAS/SATA hard drives, optional support for 2/4 NVMe SSDs, balancing large capacity and high-performance local storage.
The key components of the system are designed with redundancy and hot swapping, and support tool-free disassembly and assembly to improve fault maintenance efficiency and enhance system availability. Integrated intelligent management chip, providing an open management platform, supporting multiple management protocols such as IPMI2.0, Redfish, SNMP, etc. Supports various management functions such as KVM, virtual media, critical component status monitoring, and abnormal alarms.
We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories, Customized According to Your Needs. Welcome to Inquire!
