Vertex AI Server
1 / 5
We have 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Memory | Supports 24 DDR4 memory, up to 2933MHz |
| GPU | Supports up to 10 dual width, full height, and full length GPUs |
| Local Storage | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller, supporting multiple specifications of hard disk configurations, and hot swappable hard disks: 25 2.5 SAS/SATA ports can be configured (4 ports support NVMe/SAS/SATA mixed insertion) |
| PCLs | Up to 12 PCI Express 3.0 expansion slots |
| Fan | 8 8038 system fans, N+1 redundant fans, supporting hot swapping |
| Power | 2/3/4 power modules, supporting 1+1, 2+1, 2+2, 3+1 redundancy, and supporting hot swapping. Optional 220V AC/240V DC/336V DC/-48V DC input. Optional 1300W/1600W/2000W power |
| Manage | Onboard BMC management module, supporting remote management and control, such as IPMI2.0. KVMOverIP, SOL, SNMP, etc; Original factory management software that can deploy multiple hosts simultaneously or perform specific deployments according to planned schedules. It can monitor server CPU, memory, and other resource usage rates, as well as collect bulk logs; The data center management platform enables remote multifunctional advanced management; Optional LCD management module |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis top cover |
| Port | Front end: 1 D-SubVGA. 2 USB 3.0, 1 LCD Mini USB Rear: 1 standard DB9, 2 USB 3.0, 1 RJ45 management network port |
| Size | Rack mounted 4U/4.5U, width 447mm x height 175mm x depth 768mm (excluding hanging ears 748mm) |
| Weight | The net weight of the full configuration is about 21KG, and the full configuration includes guide rails, accessories, and packaging of about 43KG |
| Operation temperature | Standard operating temperature: 5 ℃ to 35 ℃ (without direct sunlight) Extended operating temperature: 5 ℃ to 40 ℃ (limited configuration meets) Transportation and storage temperature: -40 ℃ to 65 ℃ |
| Humidity | Working humidity: 10% to 80% (non condensing) Storage humidity: 5% to 95% (non condensing) |
| Operating system support | Microsoft Windows Server, Microsoft Hyper-V Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Fedora, Solaris, Oracle Linux, FreeBSD, VMware ESXi, Citrix XenServer |
Adopting new server design concepts and technologies, supporting Intel's new Xeon Skylake/Cascade Lake processors, there is a qualitative leap in processor performance, bus bandwidth, memory bandwidth, and other aspects. It provides super strong specifications in PCIE quantity, hard disk quantity, network expansion, and is suitable for high-performance computing (HPC) and large-scale parallel computing environments. It can be widely used in application scenarios such as facial recognition, video analysis, meteorological research and analysis, and big data analysis.
Supports 2 Intel chips Skylake SP/Cascade Lake CPU, 2UPI bus, maximum speed up to 10.4GT/s. Supports 24 DDR4 memory sticks, with a maximum memory capacity of 9.0TB. Scalable on demand to meet various applications.
Supports up to 25 2.5-inch hard drives and 4 U.2NVMe/SAS/SATA mixed ports; Support automatic recognition of 2 M.2 SSD PCIE/SATA; Offers SAS card and RAID card data protection support (optional).
Supports up to 12 PCIe 3.0 expansion slots; Provide highly available I/O expansion space, offer dedicated NIC MEZZ card expansion slots, adopt modular design, can expand network daughter cards as needed.
Embedded server intelligent management chip, supporting IPMI2.0 and Redfish management modes. Implement complete remote system monitoring, remote KVM, virtual media, and other management functions.

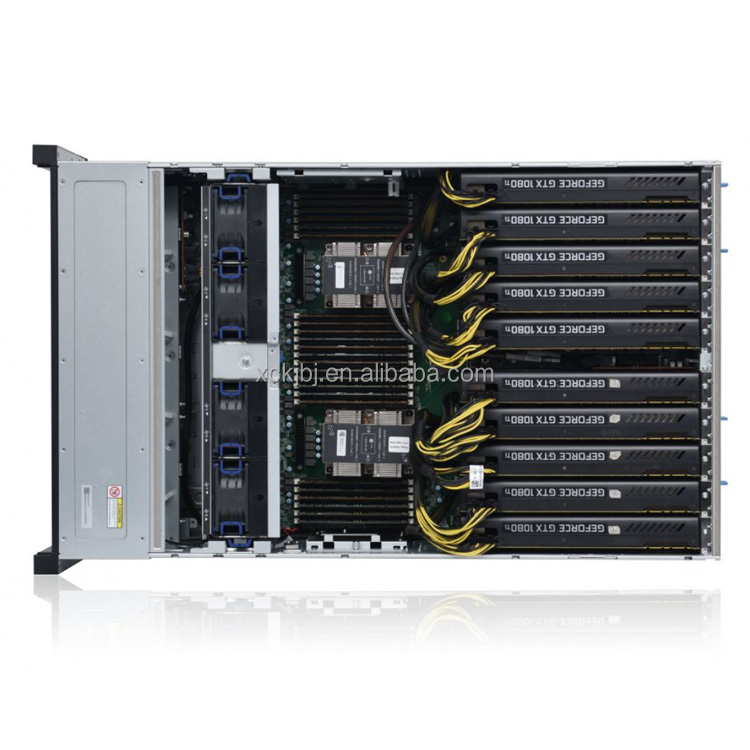

Supports up to 10 dual width, full height, and full length GPU acceleration cards; Multiple different backboards with modular design, allowing for the selection of different models as needed; Flexible switching between common mode, cascading mode, and balanced mode can be achieved through software.
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
We have a warehouse, and you are always welcome to visit and inspect the goods. Delivery usually takes 1-3 working days after your payment.
Our different products have different warranties. If necessary, we can extend the warranty up to five years.
We accept orders from 1 set, please feel free to inquire.
We accept T/T, Western Union, and payments directly on Ali are also supported.
Yes, we can send your order to your domestic freight forwarder for free.
