Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 7U rack server |
| Processor | 2 AMD EPYC™ 9004/9005 series processors, maximum power 500W |
| Gpu | 8 GPU/600W |
| Memory | 24 DDR5 memory slots, each CPU supports 12 memory channels, supporting up to 6400MT/s. Supports RDIMM/3DS RDIMM |
| Local Storage | Supports 8/12 3.5-inch hard drives; Supports 8/16/24 2.5-inch hard drives; Supports optional 2/4 U.2 NVMe SSDs, 1 M.2 SSD (2280 & 22110 sizes, supports PCIe 3.0 x4); Supports optional 4/8 U.2 NVMe SSDs. |
| PCLs | Supports up to 11 standard PCIe 5.0 slots; Optional support for 1 OCP 3.0 network card, PCIe 5.0 x8; Optional 4x1GbE / 2x10Gb SFP+ / 2x25Gb SFP28 or other standard OCP 3.0 network cards |
| Fan | 4 hot swappable fan modules, supporting N+1 redundancy, intelligent speed regulation, and abnormal alarm |
| Power | Optional 4 CRPS power supplies, supporting 2+2/3+1 redundancy; Optional 6 CRPS power supplies, supporting 3+3 redundancy; Optional 2000W/2700W/3200W/3600W power modules; The power module supports hot swapping |
| Manage | Integrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis top cover |

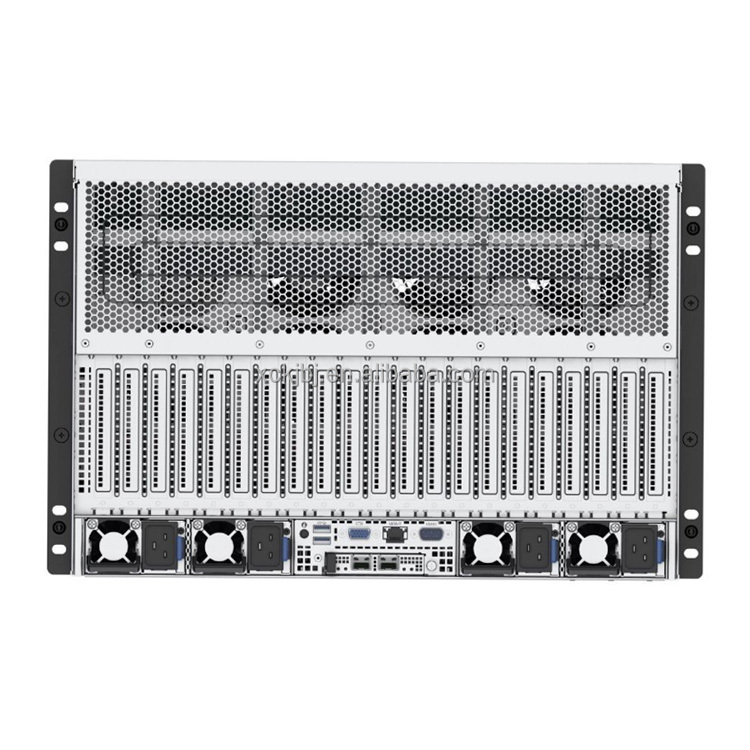

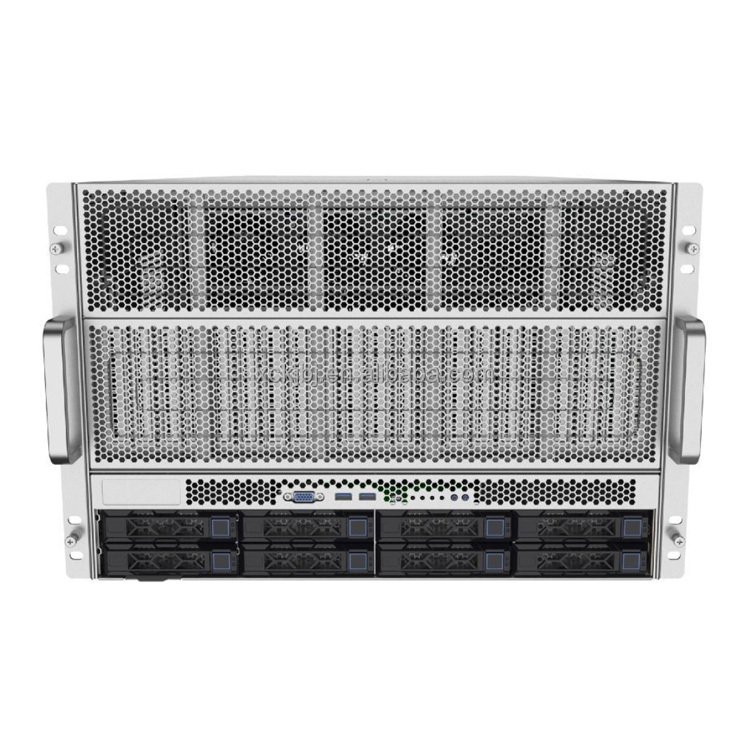

| Port | Front end: 1 VGA, 2 USB 3.0; Rear: 1 VGA, 2 USB 3.0, 1 RJ45 management network port, 1 COM |
| Size | Width 448mm x Height 306mm x Depth 896mm |
| Operation temperature | Operating temperature: 5 ºC - 35 ºC; Storage temperature: -40 ºC - 65 ºC |
| Humidity | Relative humidity at work: 8% to 90% (without condensation); Storage relative humidity: 5% to 95% (non-condensing) |
| Operating system support | Support mainstream operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, Ubuntu Linux, CentOS, etc |
A versatile 8-card GPU server based on AMD SP5 processor platform, supporting 9004/9005 series CPUs and 8 600W GPUs, with excellent performance, strong scalability, and high reliability, suitable for applications such as artificial intelligence, large model inference, rendering, cloud gaming, etc.

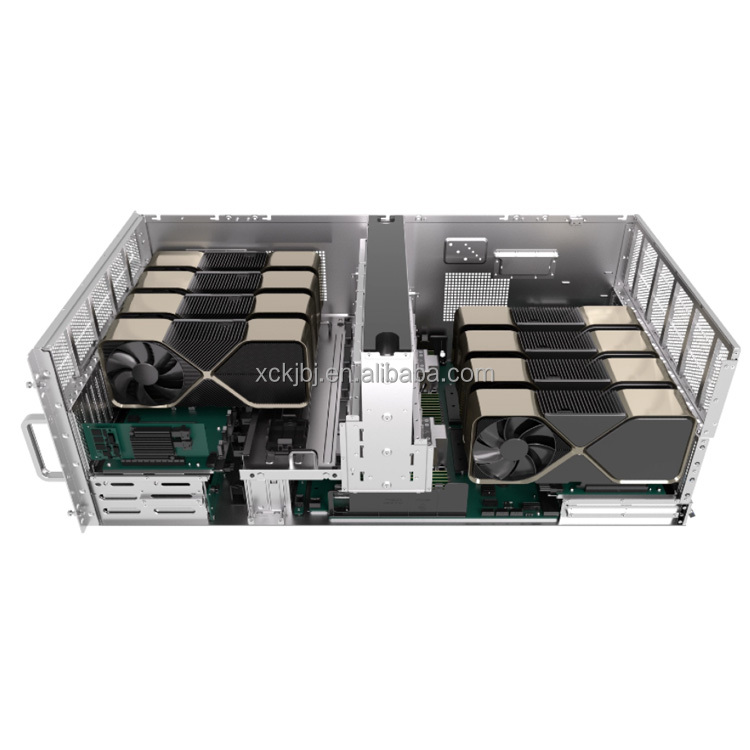

Supports 2 AMD EPYCs™ 9004/9005 series processors, maximum TDP 500W. Supports 8 600W GPUs, each card supports PCIe 5.0 x16, providing efficient heterogeneous computing power. CPU-GPU direct design, efficient and low latency, significantly improves data transmission efficiency compared to PCIe Switch architecture.

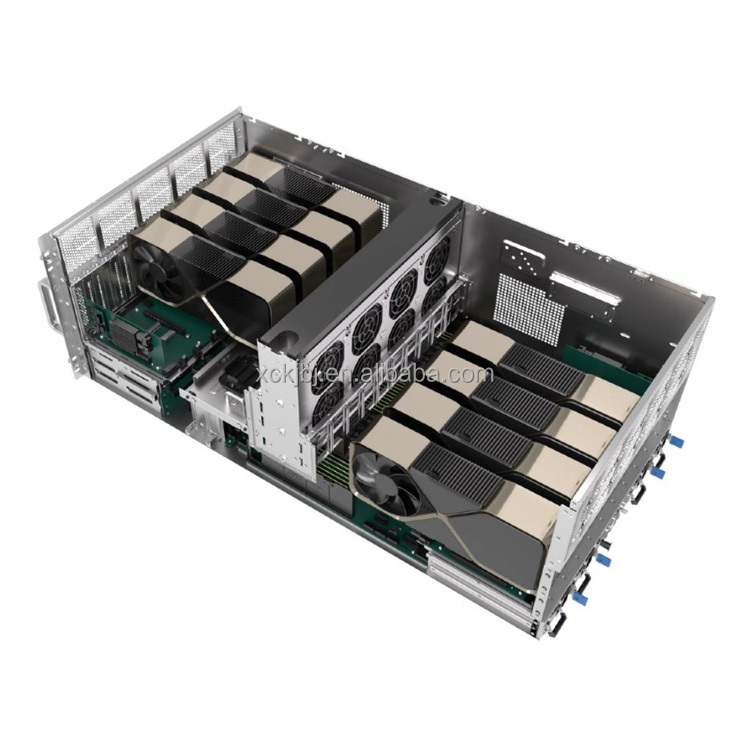

Super compatibility, optional support for fan card or turbo card. Supports 8 quad width fan cards or 8 dual width turbine cards.
Supports up to 11 PCIe 5.0 standard slots, with multiple PCIe configurations to choose from. Optional 1 OCP 3.0 network card, multiple speed options available. Supports 8 3.5"/2.5" SAS/SATA hard drives, optional support for 2/4 NVMe SSDs, balancing large capacity and high-performance local storage.
The key components of the system are designed with redundancy and hot swapping, and support tool-free disassembly and assembly to improve fault maintenance efficiency. Integrated intelligent management chip supporting IPMI2.0, Redfish, SNMP, etc.
We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories, Customized According to Your Needs. Welcome to Inquire!
