Vertex AI Server
1 / 5
We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. We are the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Processor | Supports 2 AMD EPYCs™ 7002/7003 processors, TDP 280W |
| Raid | Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card |
| Gpu | Supports 8 dual width GPUs, TDP 450W |
| Memory | Supports 32 DDR4 memory, 3200MT/s, RDIMM/LRDIMM |
| Local Storage | Supports 8 3.5 "/2.5" SAS/SATA hard drives (optional support for 2/4 U.2 NVMe SSDs) Supports 1 onboard M.2 SSD, 2280&22110 sizes, PCIe 2.0 x1 |
| PCLs | Supports up to 11 standard PCIe 4.0 slots. Optional support for 1 OCP3.0 network card, PCIe 4.0 x8, Optional 4 × 1GbE/2 × 10Gb SFP+/2 × 25Gb SFP28 |
| Fan | 8*8056 high-speed fans, N+1 redundancy, supporting hot swapping |
| Power | 4*platinum level CRPS power modules (2000W/2700W), supporting hot swapping and 2+2/3+1 redundancy mode |
| Manage | Integrated BMC management chip AST2500, supporting IPMI2.0, SOL, KVM, virtual media and other functions Provide 1 1Gbps RJ45 dedicated management port |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis cover (tool free) |

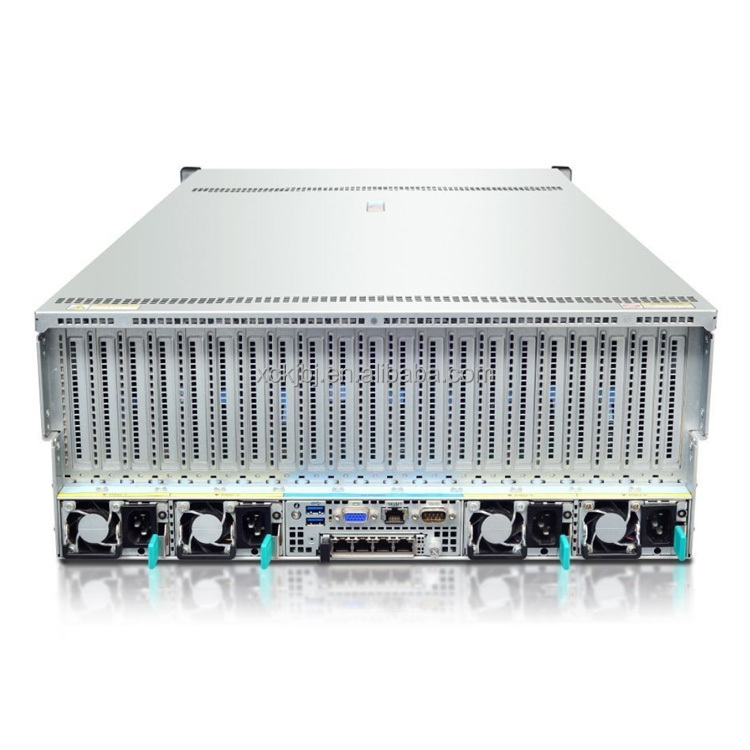

| Port | Front end: 2 USB 3.0 ports, 1 VGA port Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 management port |
| Size | Width 448mm x Height 175mm x Depth 822mm (including hanging ears 842mm) |
| Operation temperature | Operating temperature: 5 ºC -35 ºC Storage temperature: -40 ºC -65 ºC |
| Humidity | Relative humidity at work: 8% to 90% (without condensation) Storage relative humidity: 5% to 95% (non condensing) |
| Operating system support | Support mainstream operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, etc |

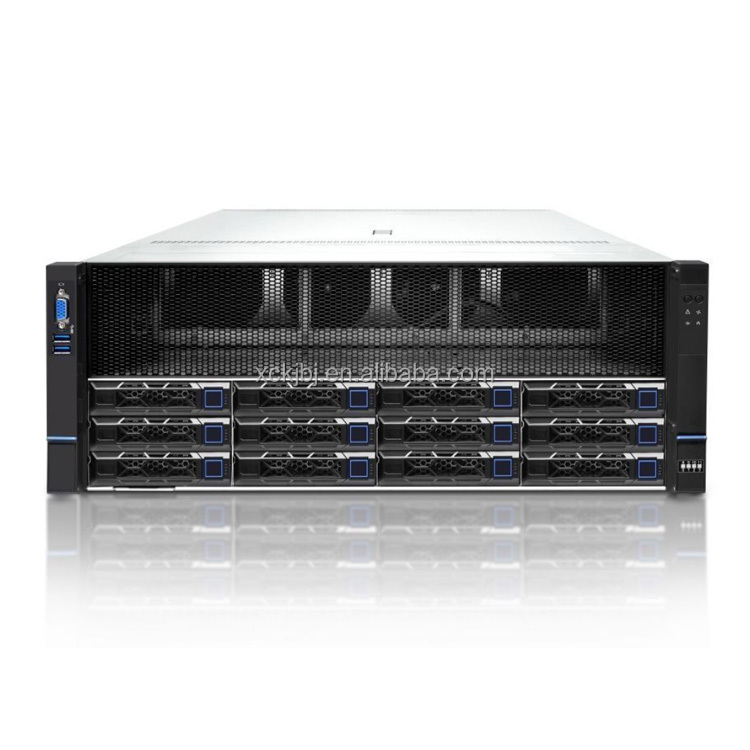

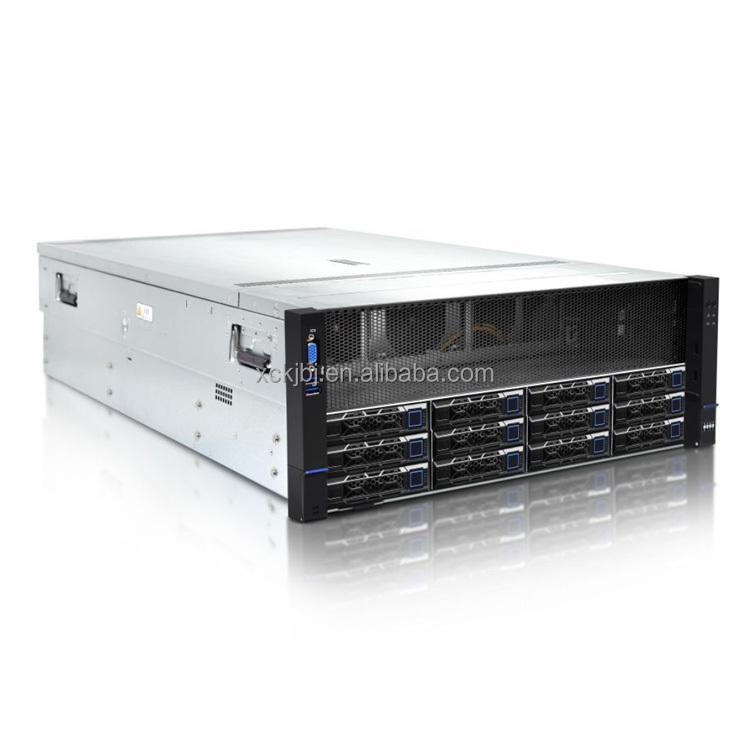

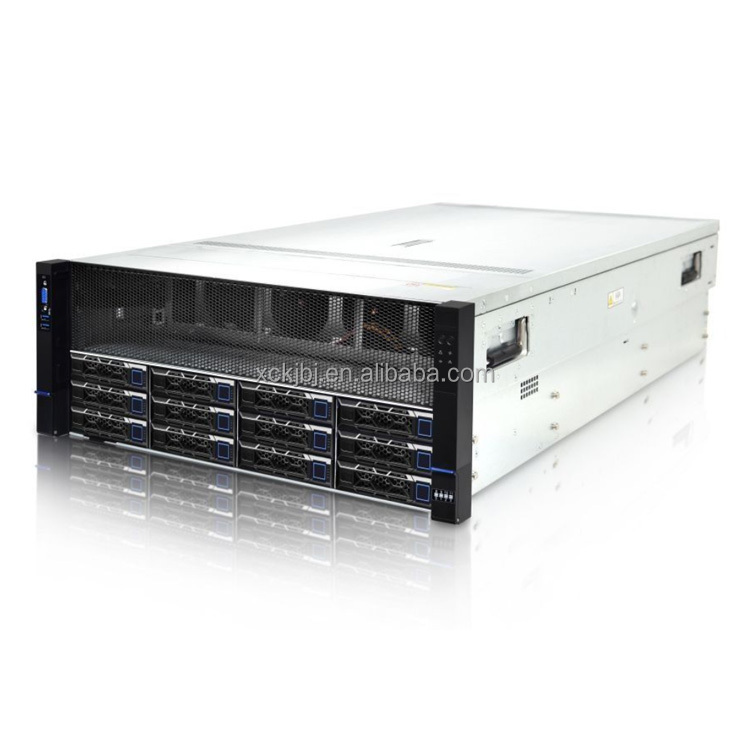

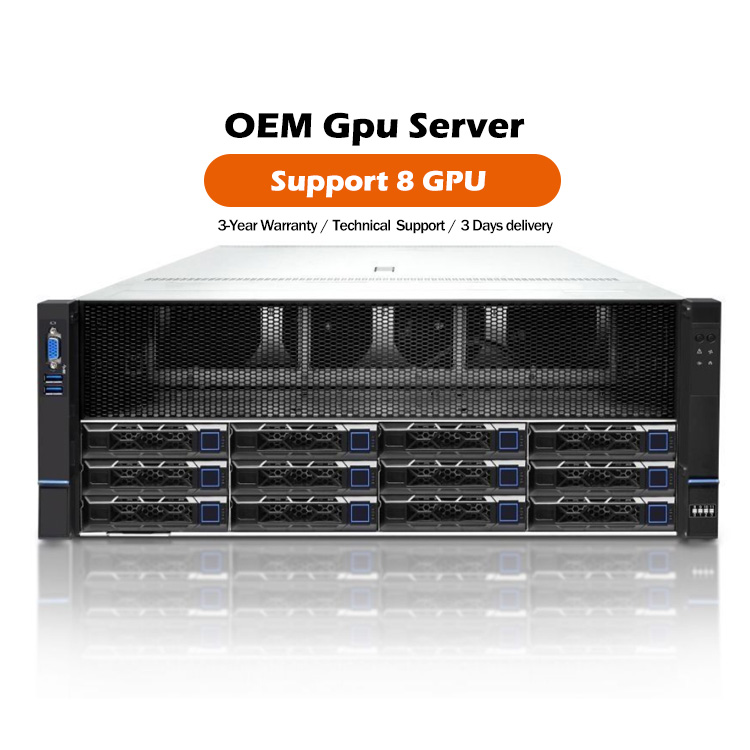

A versatile dual 4U 8 GPU server based on AMD SP3 platform, supporting the full range of Rome and Milan CPUs, and supporting 8 450W dual wide GPUs. It has excellent performance, strong scalability, and high reliability, and is suitable for applications such as artificial intelligence, large model inference, rendering, and cloud gaming.
Supports 2 AMD EPYCs™ 7002/7003 series processors, up to 128 cores. Supports 8 450W GPU cards, providing ultimate heterogeneous computing power. GPU direct design, no need for PCIe Switch adapter, ultra-high cost-effectiveness.
Supports up to 11 PCIe 4.0 standard slots, with multiple PCIe configurations to choose from. Optional 1 OCP 3.0 network card, multiple speed options available. Supports 8 3.5 "/2.5" SAS/SATA hard drives, optional support for 2/4 NVMe SSDs, balancing large capacity and high-performance local storage.
The key components of the system are designed with redundancy and hot swapping, and support tool free disassembly and assembly to improve fault maintenance efficiency and enhance system availability. Integrated intelligent management chip, supporting IPMI2.0 management protocol. Supports KVM, virtual media, critical component status monitoring, and abnormal alarms.
We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories, Customized According to Your Needs. Welcome to Inquire!
