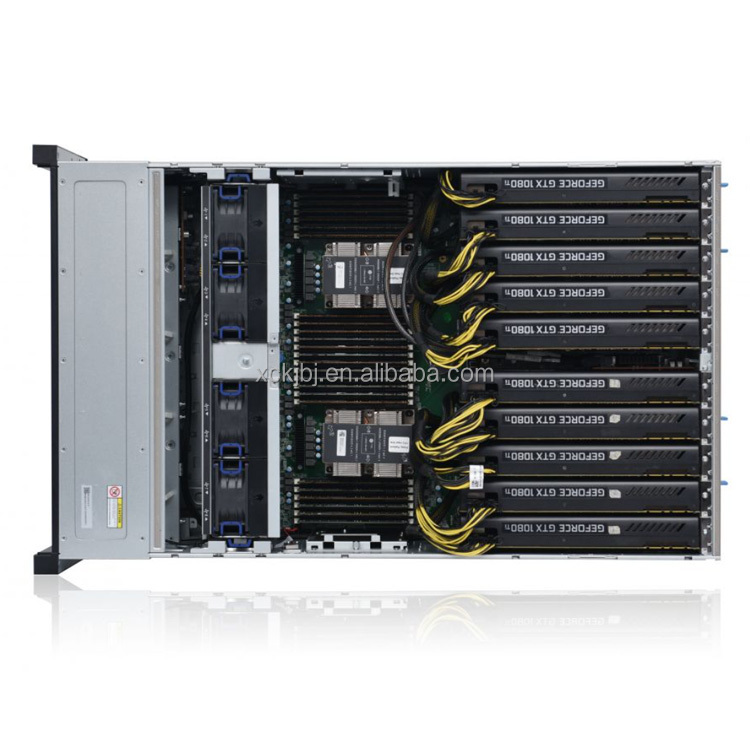

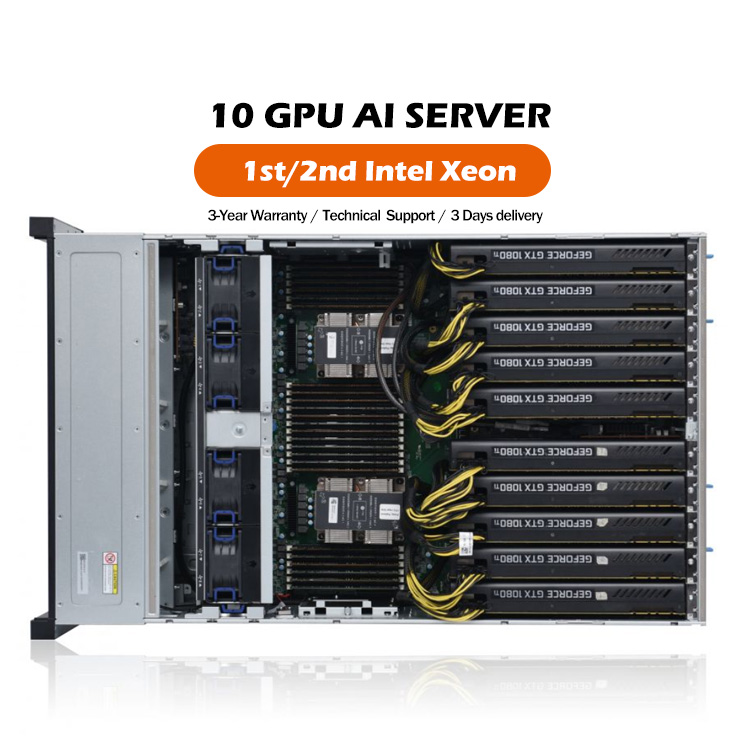

Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Memory | Supports 24 DDR4 memory, up to 2933MHz |
| GPU | Supports up to 10 dual width, full height, and full length GPUs |
| Local Storage | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller, supporting multiple specifications of hard disk configurations, and hot swappable hard disks: 25 2.5 SAS/SATA ports can be configured (4 ports support NVMe/SAS/SATA mixed insertion) |
| PCIe Slots | Up to 12 PCI Express 3.0 expansion slots |
| Fan | 8 8038 system fans, N+1 redundant fans, supporting hot swapping |
| Power | 2/3/4 power modules, supporting 1+1, 2+1, 2+2, 3+1 redundancy, and supporting hot swapping. Optional 220V AC/240V DC/336V DC/-48V DC input. Optional 1300W/1600W/2000W power |
| Management | Onboard BMC management module, supporting remote management and control, such as IPMI2.0, KVMOverIP, SOL, SNMP, etc; Original factory management software that can deploy multiple hosts simultaneously or perform specific deployments according to planned schedules. It can monitor server CPU, memory, and other resource usage rates, as well as collect bulk logs; The data center management platform enables remote multifunctional advanced management; Optional LCD management module |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis top cover |
| Ports | Front end: 1 D-SubVGA, 2 USB 3.0, 1 LCD Mini USB | Rear: 1 standard DB9, 2 USB 3.0, 1 RJ45 management network port |
| Size | Rack mounted 4U/4.5U, width 447mm x height 175mm x depth 768mm (excluding hanging ears 748mm) |
| Weight | The net weight of the full configuration is about 21KG, and the full configuration includes guide rails, accessories, and packaging of about 43KG |
| Operating Temperature | Standard operating temperature: 5 °C to 35 °C (without direct sunlight) | Extended operating temperature: 5 °C to 40 °C (limited configuration meets) | Transportation and storage temperature: -40 °C to 65 °C |
| Humidity | Working humidity: 10% to 80% (non condensing) | Storage humidity: 5% to 95% (non condensing) |
| Operating System Support | Microsoft Windows Server, Microsoft Hyper-V Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Fedora, Solaris, Oracle Linux, FreeBSD, VMware ESXi, Citrix XenServer |
Supporting Intel's new Xeon Skylake/Cascade Lake processors, there has been a qualitative leap in processor performance, bus bandwidth, memory bandwidth, and other aspects. It provides super strong specifications in PCIe quantity, hard disk quantity, network expansion, and is suitable for high-performance computing (HPC) and large-scale parallel computing environments. It can be widely used in applications such as facial recognition, video analysis, meteorological research and analysis, and big data analysis.
Supports 2 Intel Skylake SP/Cascade Lake CPUs, 2 UPI buses, with a maximum speed of 10.4GT/s; Supports 24 DDR4 memory sticks, with a maximum memory capacity of 9.0TB. It can be expanded as needed to meet various different applications.
Supports up to 25 2.5-inch hard drives and 4 U.2 NVMe/SAS/SATA mixed ports; Support automatic recognition of 2 M.2 SSD PCIe/SATA; While providing users with massive data storage capabilities, it also offers SAS card and RAID card data protection support (optional); Meet the high bandwidth transmission requirements of big data, and meet applications such as high-capacity storage and high-performance storage.
Supports up to 12 PCIe 3.0 expansion slots; Provide highly available I/O expansion space, offer dedicated NIC MEZZ card expansion slots, adopt modular design, and can expand 2x 1GbE / 4x 1GbE / 2x 10GbE / 4x 10GbE / 2x 25GbE / 2x 40GbE network daughter cards as needed, with powerful performance to easily meet the needs of business expansion.
Embedded server intelligent management chip, supporting IPMI2.0 and Redfish management modes. Implement complete remote system monitoring, remote KVM, virtual media and other management functions. Support the "Data Center Management Platform", which is a software platform solution for centralized data monitoring, intelligent analysis, and control management of the new generation of servers in the data center.
Supports up to 10 dual width, full height, and full length GPU acceleration cards; Multiple different backboards with modular design, allowing for the selection of different models as needed; Flexible switching between common mode, cascading mode, and balanced mode can be achieved through software.
We are a specialized enterprise focused on computer hardware sales, network platform construction, and maintenance services. Our main product offerings include servers and components from top brands such as Dell, HP, IBM, Lenovo, Huawei, and others. We possess a sound sales network system, stable supply channels, and an excellent technical support team. We have established solid customer relationships and are committed to offering competitive prices, active open cooperation, and strong supplier partnerships. In a competitive market environment, we align with the "Customer first, honest and pragmatic, service first" philosophy to win trust through product quality and thoughtful service. We look forward to building long-term cooperation with your enterprise.
Yes, all our products are brand new from the original factory, unless you specifically request second-hand products.
Yes, we maintain consistent warehouse stock. You are always welcome to contact us to arrange inspections.
As a senior partner of major brands, our pricing structure is very advantageous. We offer maximum discounts for bulk requirements.
Typically, orders ship within 1-3 working days following payment confirmation.
Different products carry different factory warranties. Upon request, extended warranty options up to 5 years can be provided.
We accept orders starting from 1 unit. Please feel free to place an inquiry.
