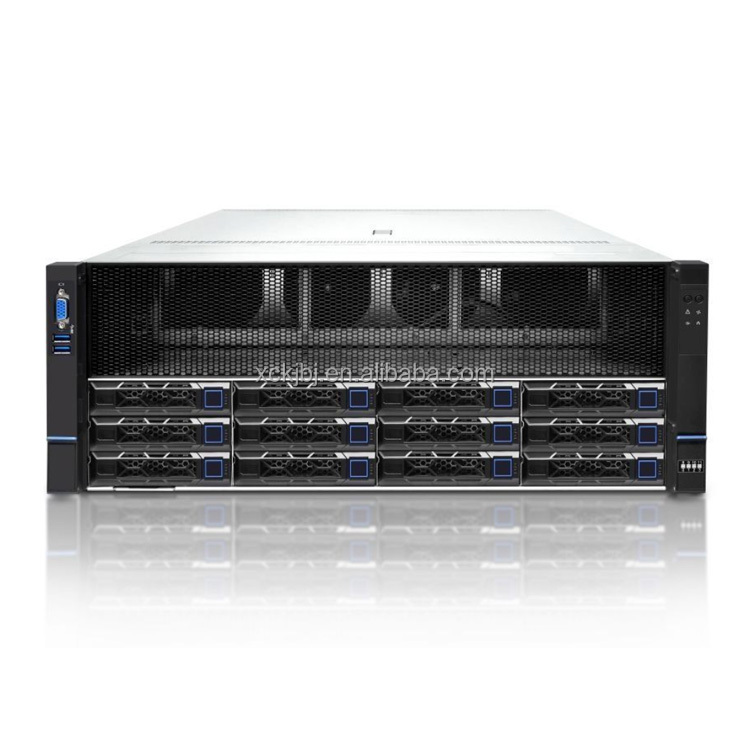

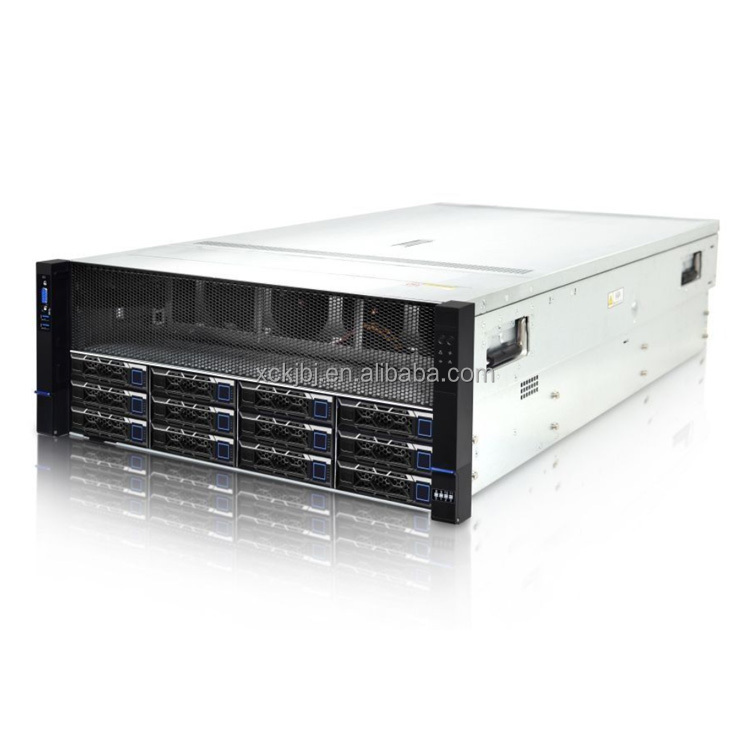

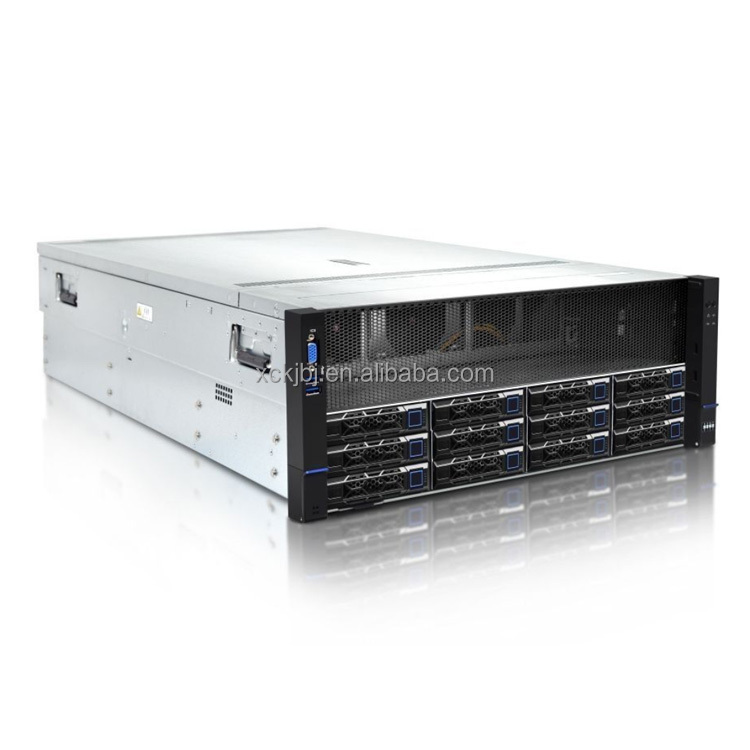

Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| CPU | Supports 2 AMD EPYCs ™ 7002/7003 processors, TDP 280W |
| Memory | Supports 32 DDR4 memory, 3200MT/s, RDIMM/LRDIMM |
| GPU | Supports 8 dual width GPUs, TDP 450W |
| Local Storage | Supports 8 3.5 "/2.5" SAS/SATA hard drives (optional support for 2/4 U.2 NVMe SSDs) Supports 1 onboard M.2 SSD, 2280&22110 sizes, PCIe 2.0 x1 |

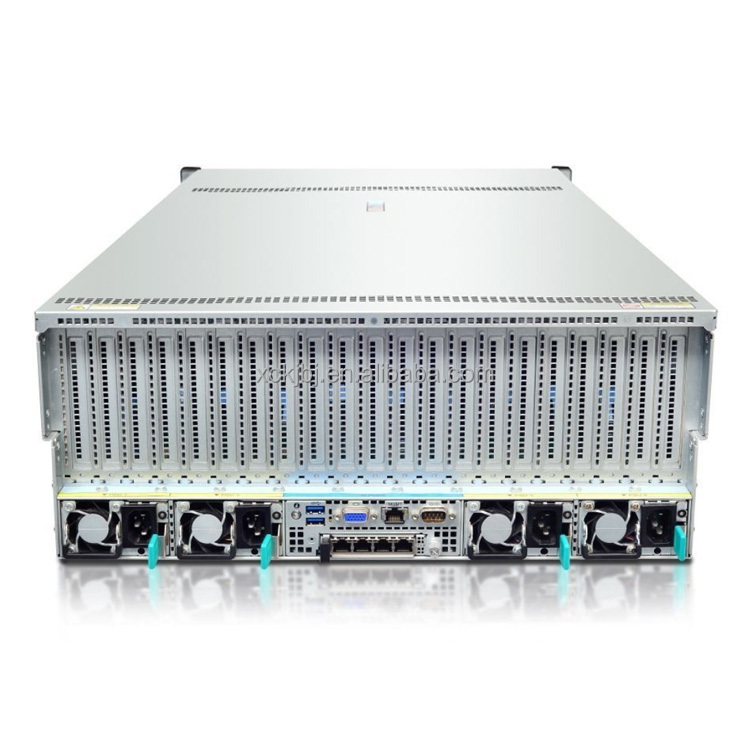

| I/O ports | Front end: 2 USB 3.0 ports, 1 VGA port Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 management port |
| PCLs | Supports up to 11 standard PCIe 4.0 slots. Optional support for 1 OCP3.0 network card, PCIe 4.0 x8. Optional 4 × 1GbE/2 × 10Gb SFP+/2 × 25Gb SFP28 |
| RAid | Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card |
| Fan | 8 8056 high-speed fans, N+1 redundancy, supporting hot swapping |
| Power | 4 platinum level CRPS power modules (2000W/2700W), supporting hot swapping and 2+2/3+1 redundancy mode |
| Manage | Integrated BMC management chip AST2500, supporting IPMI2.0, SOL, KVM, virtual media and other functions. Provide 1 1Gbps RJ45 dedicated management port |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis cover (tool free) |
| Port | Front end: 2 USB 3.0 ports, 1 VGA port Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 management port |
| Size | Width 448mm x Height 175mm x Depth 822mm (including hanging ears 842mm) |
| Operation temp | Operating temperature: 5 ºC -35 ºC Storage temperature: -40 ºC -65 ºC |
| Humidity | Relative humidity at work: 8% to 90% (without condensation) Storage relative humidity: 5% to 95% (non condensing) |
| OS support | Support mainstream operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, etc |
Supports 2 AMD EPYCs ™ 7002/7003 series processors, up to 128 cores. Supports 8 450W GPU cards, providing ultimate heterogeneous computing power. GPU direct design, no need for PCIe Switch adapter, ultra-high cost-effectiveness.
Supports up to 11 PCIe 4.0 standard slots, with multiple PCIe configurations to choose from. Optional 1 OCP 3.0 network card, multiple speed options available. Supports 8 3.5 "/2.5" SAS/SATA hard drives, optional support for 2/4 NVMe SSDs, balancing large capacity and high-performance local storage.
The key components of the system are designed with redundancy and hot swapping, and support tool-free disassembly and assembly to improve fault maintenance efficiency and enhance system availability. Integrated intelligent management chip, providing an open management platform, supporting IPMI2.0 management protocol. Supports various management functions such as KVM, virtual media, critical component status monitoring, and abnormal alarms, achieving comprehensive remote system level intelligent management.
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
As the senior agent of this brand, our discount is very advantageous. As long as you have a large amount, we can give you the best discount.
1-3 working days after your payment.
Our different products have different warranty, if necessary, we can extend the warranty to five years.
We accept orders from 1 set, please feel free to inquire.
T/T, Western Union, and Alibaba online payment options.
