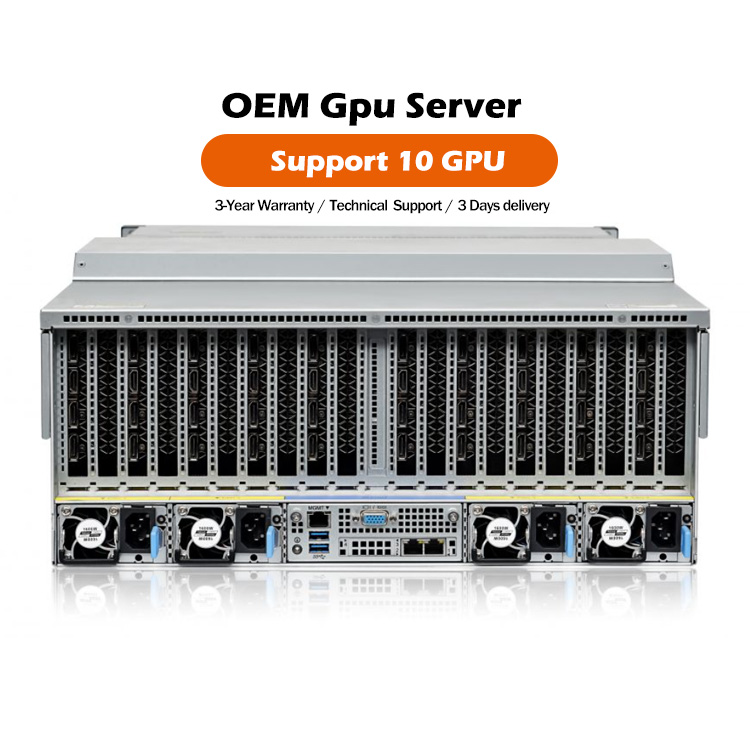

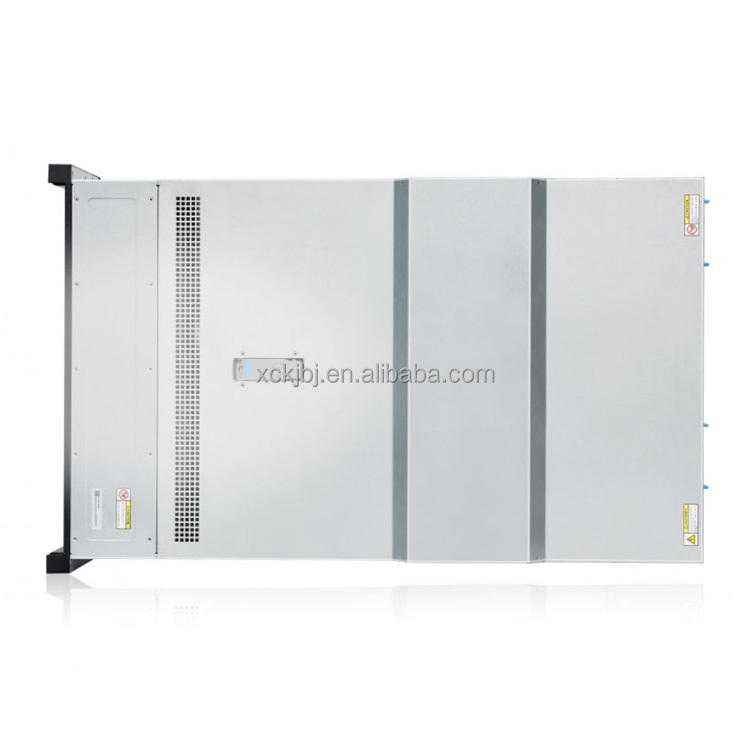

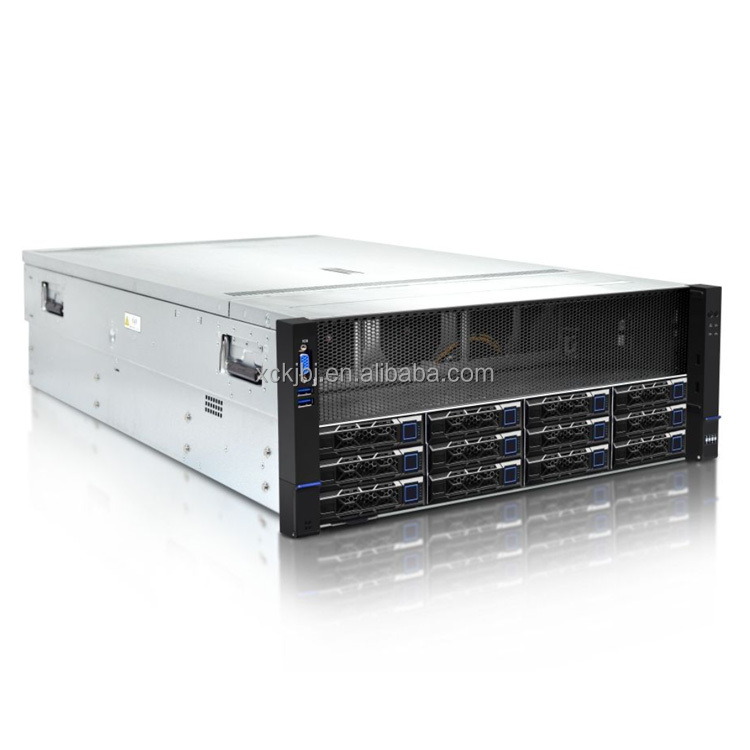

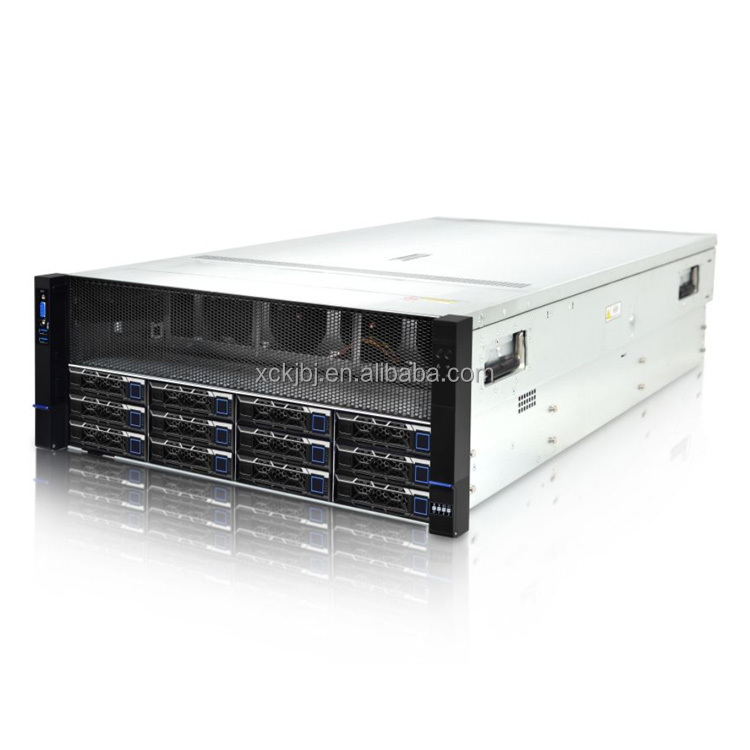

Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Memory | Supports 24 DDR4 memory, up to 2933MHz |
| GPU | Supports up to 10 dual width, full height, and full length GPUs |
| Local Storage | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller, supporting multiple specifications of hard disk configurations, and hot swappable hard disks: 25 2.5 SAS/SATA ports can be configured (4 ports support NVMe/SAS/SATA mixed insertion) |
| PCLs | Up to 12 PCI Express 3.0 expansion slots |
| Fan | 8 8038 system fans, N+1 redundant fans, supporting hot swapping |
| Power | 2/3/4 power modules, supporting 1+1, 2+1, 2+2, 3+1 redundancy, and supporting hot swapping; Optional 220V AC/240V DC/336V DC/-48V DC input; Optional 1300W/1600W/2000W power |
| Manage | Onboard BMC management module, supporting remote management and control (IPMI2.0, KVMOverIP, SOL, SNMP); Original factory management software for bulk deployment and resource monitoring; Data center management platform for remote multifunctional advanced management; Optional LCD management module |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis top cover |
| Port | Front: 1 VGA, 2 USB 3.0, 1 LCD Mini USB; Rear: 1 standard DB9, 2 USB 3.0, 1 RJ45 management port |
| Size | 4U/4.5U, 447mm(W) x 175mm(H) x 768mm(D) |
| Weight | Net weight: ~21KG, Full configuration with packaging: ~43KG |
| Operating Temp | Standard: 5℃ to 35℃; Extended: 5℃ to 40℃; Storage: -40℃ to 65℃ |
| Humidity | Working: 10% to 80%; Storage: 5% to 95% (non-condensing) |
| OS Support | Windows Server, Hyper-V, Red Hat, SUSE, CentOS, Ubuntu, Fedora, Solaris, Oracle Linux, FreeBSD, VMware ESXi, Citrix XenServer |
Supporting Intel's Xeon Skylake/Cascade Lake processors, this server offers a qualitative leap in performance, bus bandwidth, and memory capacity. It provides superior specifications in PCIe quantity and network expansion, making it ideal for HPC, large-scale parallel computing, facial recognition, video analysis, and big data research.
Supports 2 Intel Skylake SP/Cascade Lake CPUs, 2UPI bus (max 10.4GT/s), and 24 DDR4 memory sticks (max 9.0TB). Scalable to meet various application demands.

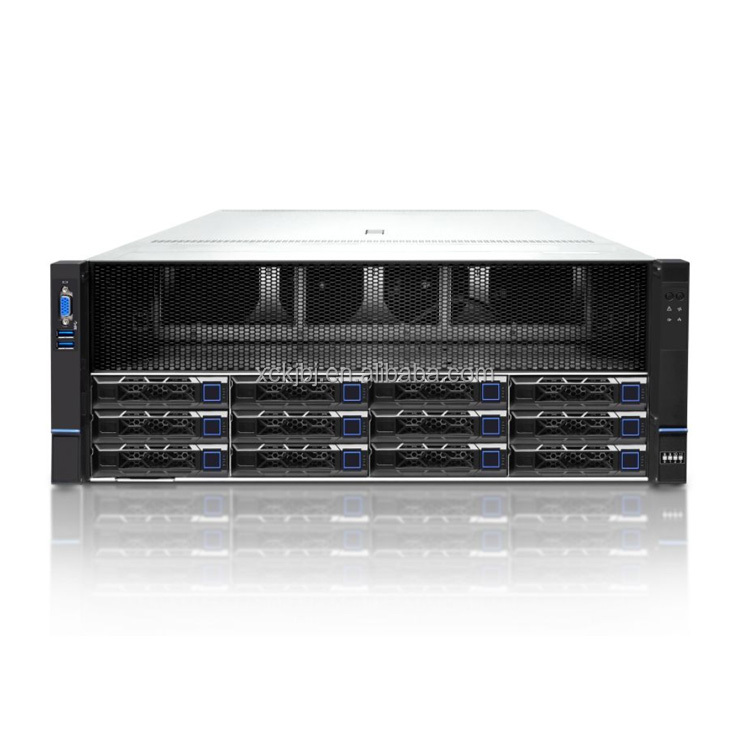

Supports up to 25 2.5-inch hard drives and 4 U.2 NVMe/SAS/SATA mixed ports. Automatic recognition of 2 M.2 SSDs. Optional RAID data protection ensures high bandwidth for big data applications.

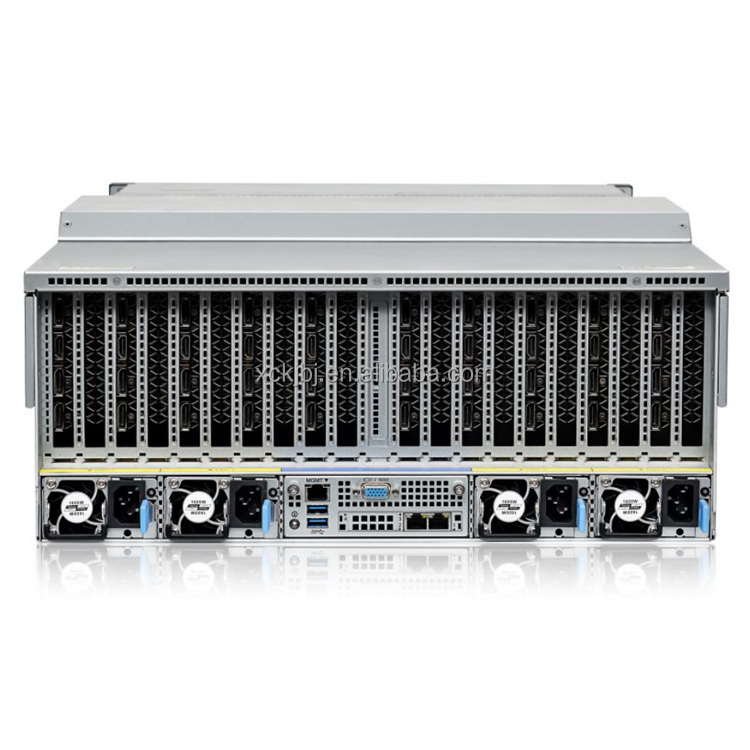

Up to 12 PCIe 3.0 slots and dedicated NIC MEZZ card slots. Modular design allows for flexible network options (1GbE to 40GbE) to support business expansion.
Embedded intelligent management chip supporting IPMI2.0 and Redfish. Features remote KVM and virtual media for centralized monitoring and cost-effective maintenance.

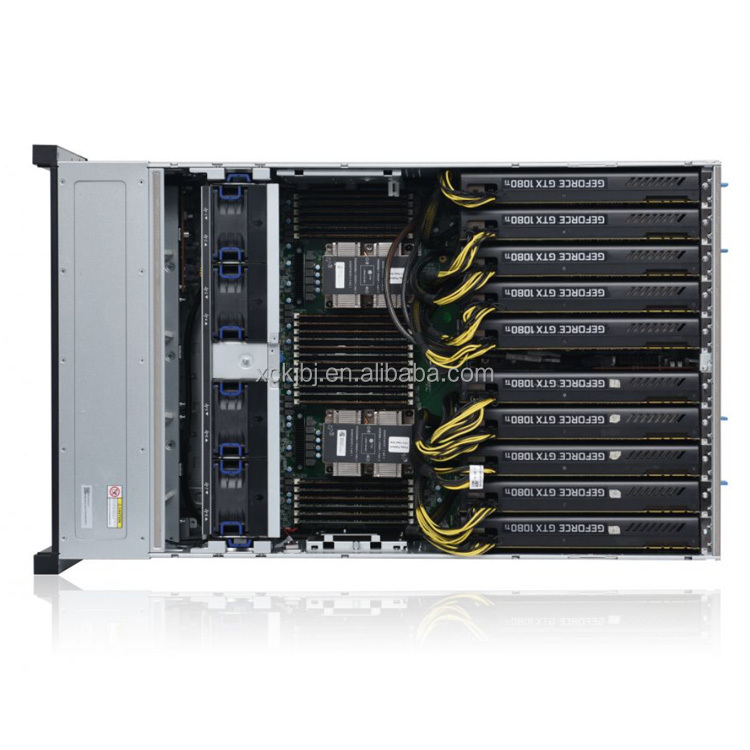

Accommodates up to 10 dual-width GPUs with modular backboards. Software-based switching between common, cascading, and balanced modes for optimized performance.
