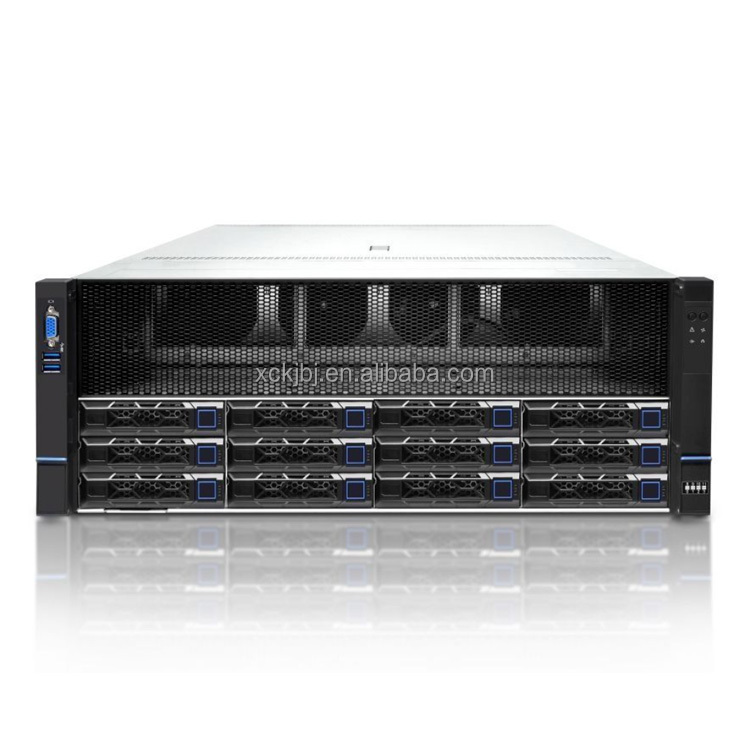

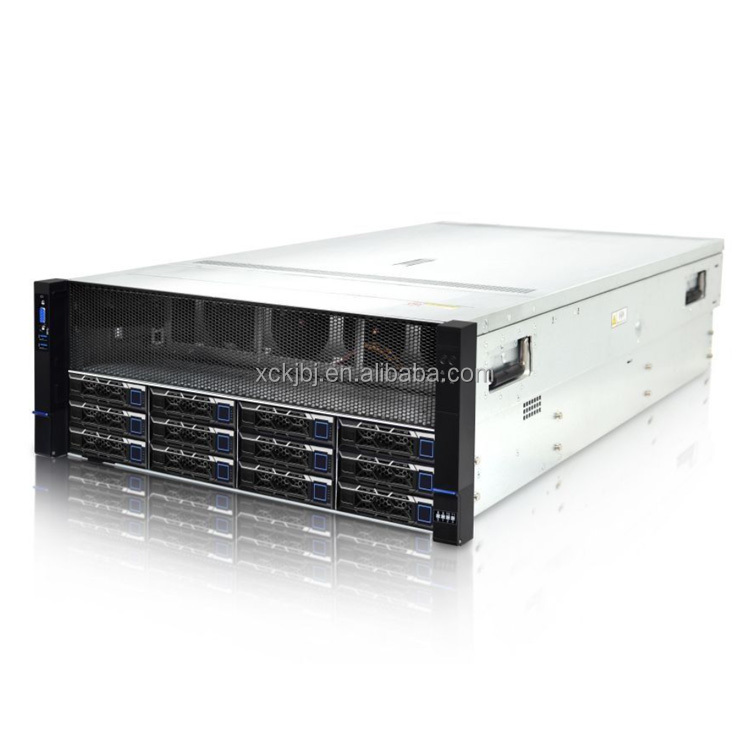

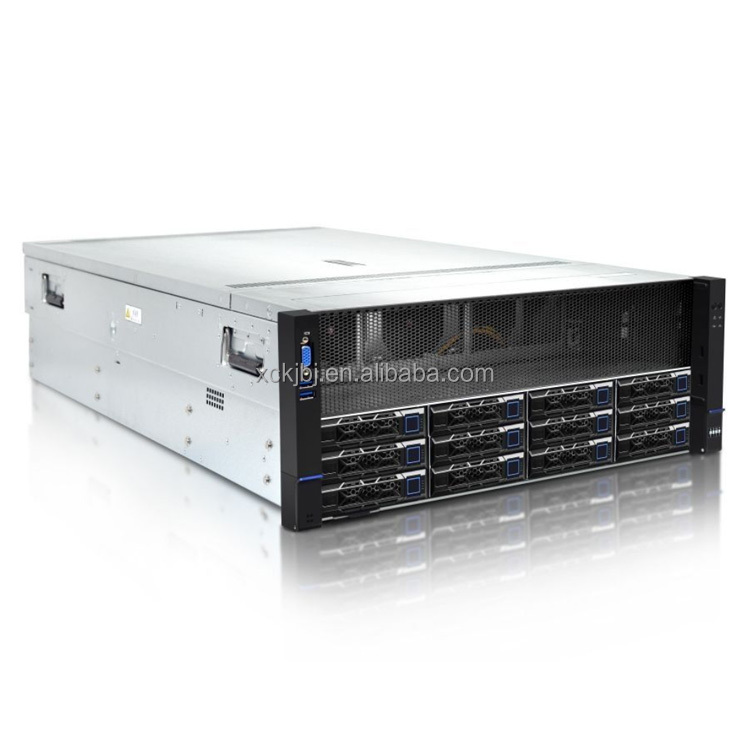

Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Processor | Two Intel Xeon Scalable processors |
| GPU | Supports 8/10 Full Height Full Length Dual Width (DW-FHFL) or Full Height Full Length Single Width (SW-FHFL) GPU cards |
| Memory | Each CPU supports 8 memory channels, each channel supports 1 DIMM, for a total of 16 DDR5 DIMM slots DDR5 ECC RDIMM/URDIMM server memory, with memory frequency support of 4000MHz. The single capacity is 16GB, 32GB, 64GB, and supports a maximum of 1.0TB |
| Local Storage | Onboard SATA controller, 6Gb/s Expand SAS solution, support 12Gb/s SAS HBA, support RAID 0/1/10 Expanded RAID solution, supports 12Gb/s RAID, RAID0/1/5/6/50/60, supports Cache supercapacitor protection, provides RAID state migration, RAID configuration memory and other functions |
| Networking | Integrate 1 1GbE RJ45 BMC IPMI management network port; Optional 4x1GbE/2x10GbE/2x25GbE OCP3.0 network card or PCIe standard network card; Optional 100/200G NIC/IB PCIe standard card |

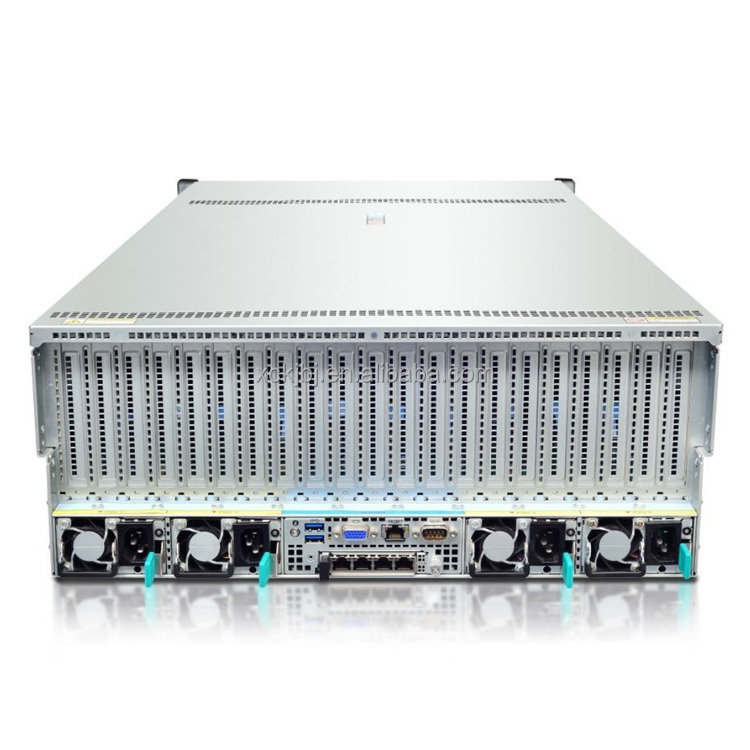

| I/O ports | Front end: 2 USB 3.0 ports, 1 VGA port Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 1GbE management network port |
| Fan | Standard configuration includes 8 8056 high-speed fans, hot swappable, N+1 redundancy. Support optional rear fan module |
| Power | Supports 2-4 CRPS power modules, supports 1+1/3+1/2+2 redundancy, and supports hot swapping; Optional 220VAC/240VDC input power module, customized optional 336VDC/-48VDC input power module; Optional 1600W/2000W/2400W/2700W power |
| Management | Support management features such as IPMI, SOL, KVM Over IP, virtual media, etc. BMC hardware module (daughter card) Aspeed2600 |
| Size | Rack mounted 4U 3.5" hard drive chassis size: width 448mm x height 175mm x depth 822mm (including hanging ears 842mm). 2.5" hard drive chassis size: width 448mm x height 175mm x depth 772mm (including hanging ears 792mm) |
| Weight | The net weight of the full configuration is about 55KG, and the full configuration includes accessories and packaging of about 80KG |
| Operating System | KylinOS, OpenEuler OS, UOS, etc. |
This model can be applied to various needs such as artificial intelligence AI large model training, cluster training, inference, HPC high-performance computing, graphics rendering, etc.
Adopting domestically produced processors and related components, fully independent and controllable. Supports nationwide production of GPU cards and firmware, compatible with major architectures.

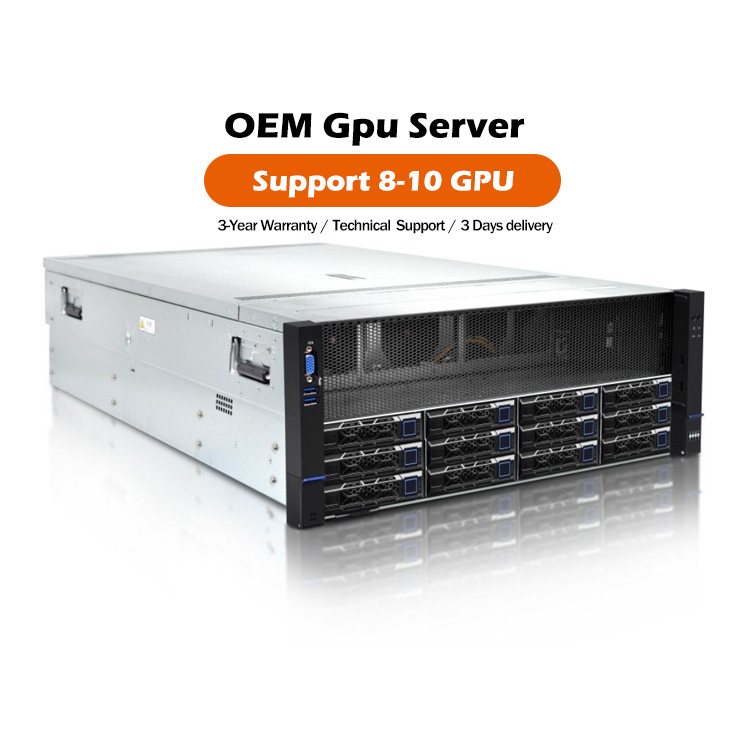

Supports 8-10 full height and full length GPU cards, providing ultimate AI computing power. Supports 16 DDR5 memories for high-speed processing.
Decoupling design of hardware modules enables flexible configuration of computing, storage, and networking. Supports up to 24 U.2 NVMe and 15 standard PCIe Gen5 slots.
Key components designed with redundancy and hot swapping. Integrated intelligent management chip supporting IPMI2.0, Redfish, and SNMP for remote monitoring.
