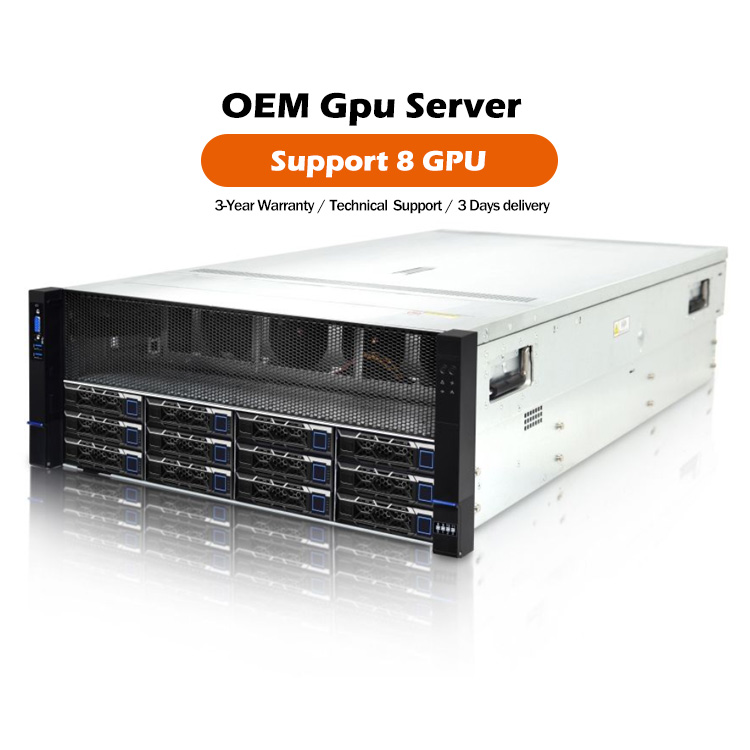

Vertex AI Server
1 / 5
Specializing in system integration, IT consulting, and providing professional IT services. As a core agent and business partner of leading brands (Huawei, Lenovo, Dell, IBM), we look forward to cooperating with you. We can customize freely according to your needs!
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Processor | 2 AMD EPYC™ 9004/9005 series processors, maximum power 500W |
| Gpu | 8/10 GPU |
| Memory | 24 DDR5 memory slots, each CPU supports 12 memory channels, supporting up to 6400MT/s Supports RDIMM/3DS RDIMM |
| Local Storage | Supports 8/12 3.5-inch hard drives Supports 8/16/24 2.5-inch hard drives Supports optional 2/4 U.2 NVMe SSDs, 1 M.2 SSD, 2280&22110 sizes, supports PCIe 3.0 x4 Supports 8/12 3.5-inch hard drives Supports 8/16/24 2.5-inch hard drives, Supports optional 4/8 U.2 NVMe SSDs, 1 M.2 SSD, 2280&22110 sizes, supports PCIe 3.0 x4 |
| PCIe | Option 1: Supports 8 full height, full length, dual width PCIe 5.0 GPU cards Supports up to 1 PCIe 5.0 x16+2 PCIe 5.0 x8 except for 8GPU Solution 2: Supports 8 full height, full length, dual width PCIe 4.0 GPU cards Supports up to 1 PCIe 4.0 x16+2 PCIe 4.0 x8 except for 8GPU (compatible with 10 card configurations) Supports 5 PCIe 5.0 x16 (4 from switch, 1 from CPU) in addition to 8GPU |
| Fan | 4 hot swappable fan modules, supporting N+1 redundancy, intelligent speed regulation, and abnormal alarm |
| Power | Four power modules can be configured, supporting N+1 redundancy and hot plugging. Optional 220V AC/240V DC/336V DC/-48V DC input. Optional 1600W/2000W/2400W/2700W/3000W high-efficiency platinum power supply |
| Manage | Integrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis top cover |
| Port | Front end: 1 VGA, 2 USB 3.0 Rear: 1 VGA, 2 USB 3.0, 1 RJ45 management network port, 1 COM |
| Size | 2.5" hard drive chassis size, width 448x height 175x depth 772mm (including hanging ears 792mm) 3.5" hard drive chassis size, width 448x height 175x depth 822mm (including hanging ears 842mm) |
| Operation temperature | 0 ºC - 35 ºC (without direct lighting) |
| Humidity | 10% - 85% |
| Operating system support | Support mainstream operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, Ubuntu Linux, CentOS, etc |
Based on AMD EPYC™ 9004/9005 series processors are built with comprehensive upgrades in CPU, GPU, and I/O specifications, featuring high computing power, strong scalability, rich configuration, and high reliability. They are suitable for applications such as artificial intelligence, high-performance computing, and data analysis.
Supports 2 AMD EPYCs™ 9004/9005 series processors adopt the Zen 5 new core architecture, 5nm new process, support up to 500W models, and have strong computing performance. Supports 24 DDR5 memories with a maximum frequency of 6400MT/s, providing excellent memory bandwidth and capacity.
Decoupling design of hardware modules enables flexible configuration of computing, storage, and networking to meet different business needs. Supports flexible selection of 3.5" or 2.5" hard drive modules, supporting up to 8 U.2 NVMe. Supports 10 full height, full length, and dual width GPU cards, supporting training and inference GPUs. Support OCP NIC 3.0 network expansion, optional expansion of 4 × 1GbE / 2 × 10Gb SFP+ / 4 × 10Gb SFP+ / 2 × 25Gb SFP28 network configuration.
The key components of the system are designed with redundancy and hot swapping, and support tool free disassembly and assembly to improve fault maintenance efficiency and enhance system availability. Integrated intelligent management chip, providing an open management platform, supporting multiple management protocols such as IPMI2.0, Redfish, SNMP, etc. Supports various management functions such as remote KVM, virtual media, critical component status monitoring, and abnormal alarms, achieving comprehensive remote system level intelligent management.
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
1-3 working days after your payment.
Our different products have different warranty, if necessary, we can extend the warranty to five years.
We accept orders from 1 set, please feel free to inquire.
T/T, Western Union, and online transactions on Ali.
