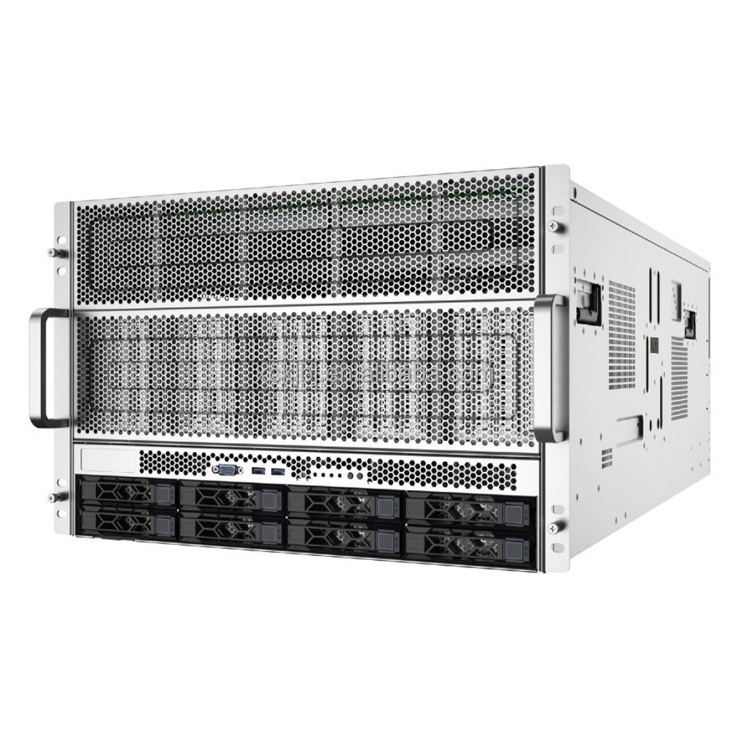

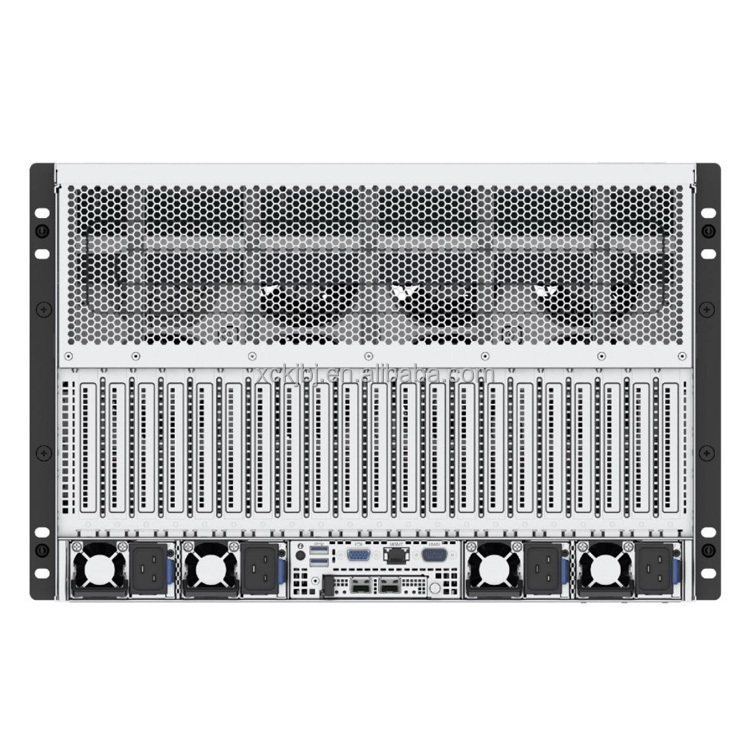

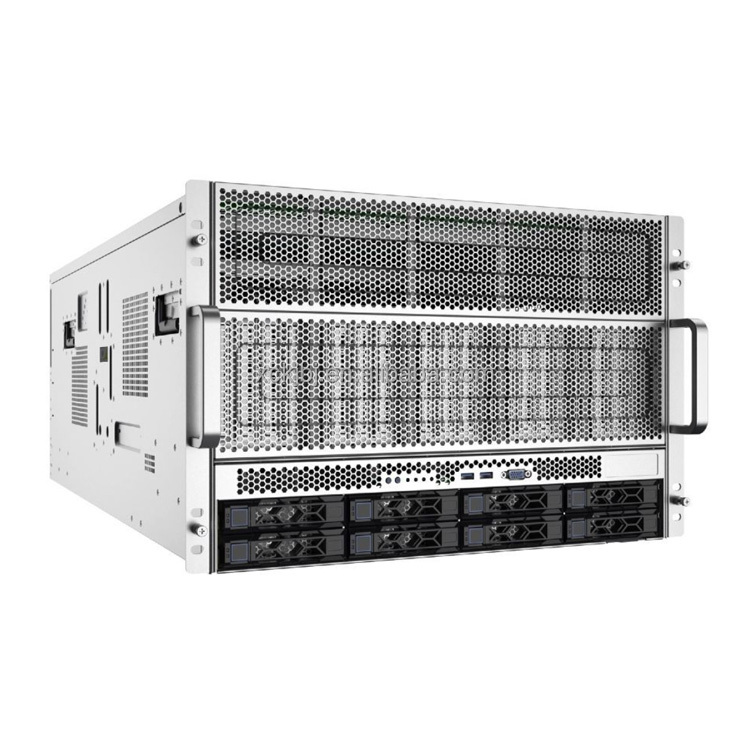

Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 7U rack server |
| Processor | Supports 2 AMD EPYCs™ 7002/7003 processors, TDP 280W |
| Memory | Supports 32 DDR4 memory, 3200MHz, RDIMM/LRDIMM |
| RAID | Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card |
| GPU | Supports 8 GPU cards (three fan version, TDP 450W) |
| Local Storage | Supports 8 3.5 "/2.5" SAS/SATA hard drives (optional support for 2/4 U.2 NVMe SSDs). Supports 1 onboard M.2 SSD, 2280 & 22110 sizes, PCIe 2.0 x1 |
| PCLs | Supports up to 11 standard PCIe 4.0 slots. Optional support for 1 OCP 3.0 network card, PCIe 4.0 x8. Optional 4 × 1GbE / 2 × 10Gb SFP+ / 2 × 25Gb SFP28 |
| Fan | Heat dissipation optimization design, hot swappable redundant fans |
| Power | 4 platinum level CRPS power modules (2000W/2700W), supporting hot swapping and 2+2/3+1 redundancy mode |
| Manage | Integrated BMC management chip AST2600, supporting IPMI2.0, SOL, KVM, virtual media and other functions. Provides 1 1Gbps RJ45 dedicated management port |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis cover (tool free) |
| Port | Front end: 2 USB 3.0 ports, 1 VGA port. Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 management port |
| Size | Width 448mm x Height 306mm x Depth 886mm (including hanging ear 924mm) |
| Operation temperature | Operating temperature: 5º C - 35º C. Storage temperature: -40º C - 65º C |
| Humidity | Relative humidity at work: 8% to 90% (without condensation). Storage relative humidity: 5% to 95% (non condensing) |
| Operating system support | Support mainstream operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, etc. |

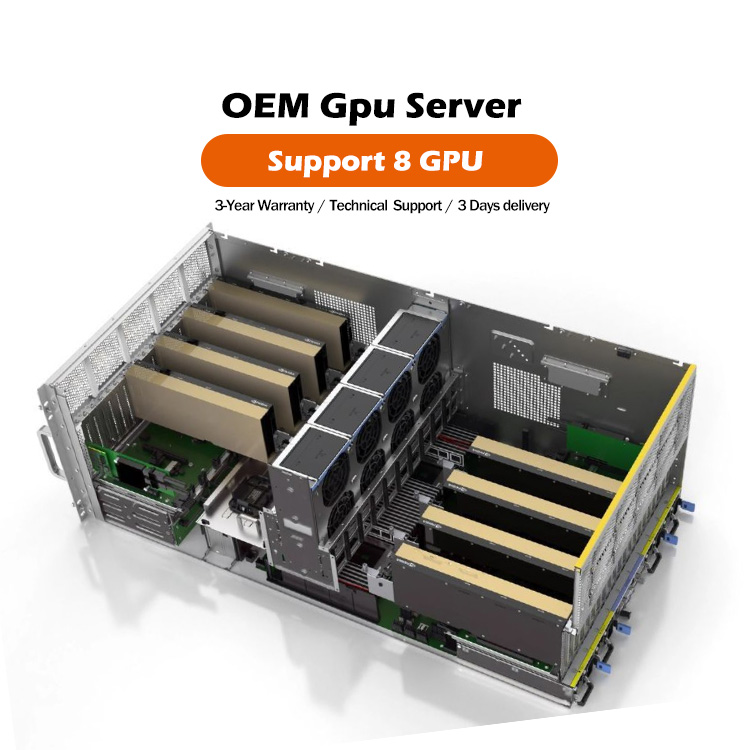

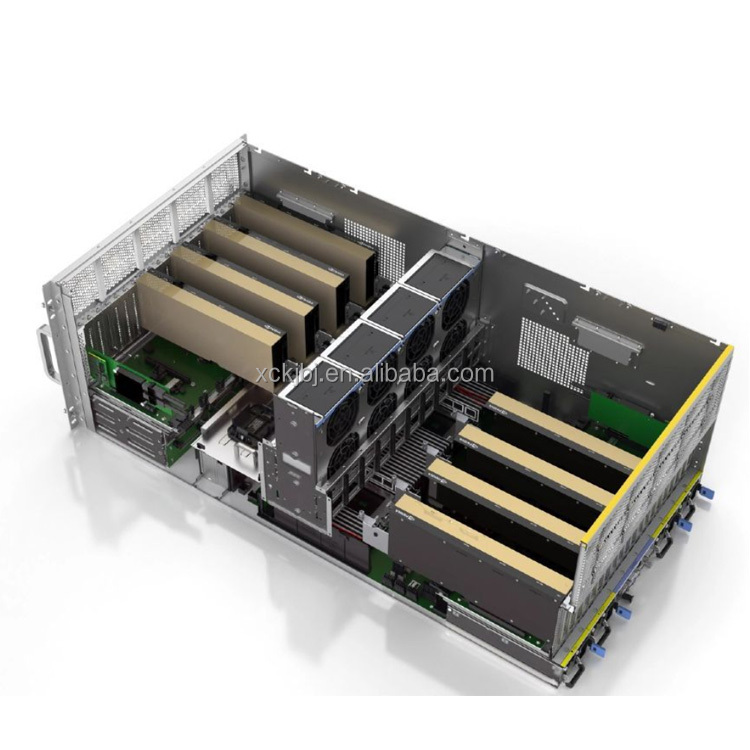

A versatile 8-card GPU server based on AMD SP3 platform, supporting the full range of Rome and Milan CPUs, and supporting 8 three-fan graphics cards. It has excellent performance, strong scalability, and high reliability, and is suitable for applications such as artificial intelligence, large model inference, rendering, and cloud gaming.
Supports 2 AMD EPYC™ 7002/7003 series processors, with a maximum of 128 cores. Supports 8 three-fan graphics cards, each card supporting PCIe 4.0 x16, providing efficient heterogeneous computing power. CPU-GPU direct design ensures efficient and low latency, significantly improving data transmission efficiency compared to PCIe Switch architecture.
Supports native three-fan GPU cards, with factory quality assurance to avoid quality risks caused by turbo card modifications, while also providing higher cost-effectiveness.
Supports up to 11 PCIe 4.0 standard slots, with multiple PCIe configurations to choose from. Optional 1 OCP 3.0 network card with multiple speed options. Supports 8 3.5 "/2.5" SAS/SATA hard drives, with the option to support 2/4 NVMe SSDs, balancing large capacity and high-performance local storage.
The key components of the system are designed with redundancy and hot swapping, and support tool-free disassembly and assembly to improve fault maintenance efficiency and enhance system availability. Integrated intelligent management chip, providing an open management platform, supporting IPMI2.0 management protocol. Supports various management functions such as KVM, virtual media, critical component status monitoring, and abnormal alarm.
