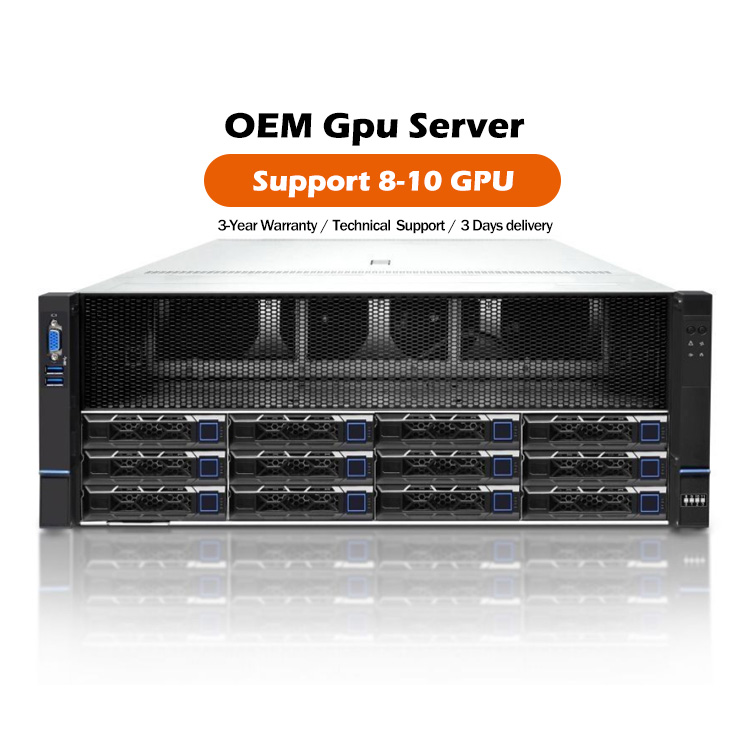

Vertex AI Server
1 / 5
| Model | Custom / OEM |
| Form Factor | 4U rack server |
| Processor | Feiteng S5000C-64C |
| GPU | Supports 8/10 Full Height Full Length Dual Width (DW-FHFL) or Full Height Full Length Single Width (SW-FHFL) GPU cards |
| Memory | Each CPU supports 8 memory channels, each channel supports 1 DIMM, for a total of 16 DDR5 DIMM slots DDR5 ECC RDIMM/URDIMM server memory, with memory frequency support of 4000MHz. The single capacity is 16GB, 32GB, 64GB, and supports a maximum of 1.0TB. |
| Local Storage | Onboard SATA controller, 6Gb/s Expand SAS solution, support 12Gb/s SAS HBA, support RAID 0/1/10 Expanded RAID solution, supports 12Gb/s RAID, RAID0/1/5/6/50/60, supports Cache supercapacitor protection, provides RAID state migration, RAID configuration memory and other functions |
| Networking |
Integrate 1 1GbE RJ45 BMC IPMI management network port Optional 4x1GbE/2x10GbE/2x25GbE OCP3.0 network card or PCIe standard network card Optional 100/200G NIC/IB PCIe standard card |
| I/O ports | Front end: 2 USB 3.0 ports, 1 VGA port. Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 1GbE management network port |
| Fan | Standard configuration includes 8 8056 high-speed fans, hot swappable, N+1 redundancy. Support optional rear fan module |
| Power | Supports 2-4 CRPS power modules, supports 1+1/3+1/2+2 redundancy, and supports hot swapping. Optional 220VAC/240VDC input power module, customized optional 336VDC/-48VDC input power module. Optional 1600W/2000W/2400W/2700W power |
| Manage | Support management features such as IPMI, SOL, KVM Over IP, virtual media, etc. BMC hardware module (daughter card) Aspeed2600 |
| Safety | Lock the upper cover of the chassis (standard). Chassis Open Cover Intrusion Detection (optional). Front panel with key lock (customized). TCM (optional) |
| Size | Rack mounted 4U 3.5" hard drive chassis size: width 448mm x height 175mm x depth 822mm (including hanging ears 842mm). 2.5" hard drive chassis size: width 448mm x height 175mm x depth 772mm (including hanging ears 792mm) |
| Weight | The net weight of the full configuration is about 55KG, and the full configuration includes accessories and packaging of about 80KG |
| Operation temperature | Standard operating temperature: 5ºC to 35ºC (in the absence of direct sunlight). Extended operating temperature: 5ºC to 40ºC (limited configuration meets). Transportation and storage temperature: -40ºC to 65ºC |
| Humidity | Working humidity: 30% to 80% (non condensing). Storage humidity: 5% to 93% (non condensing) |
| Operating system support | KylinOS, OpenEuler OS, UOS, etc |
