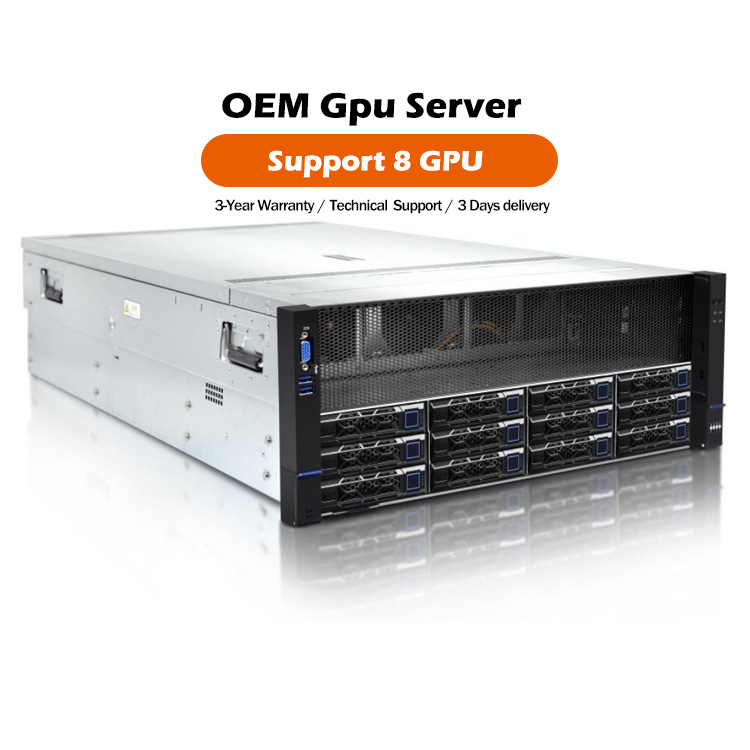

Vertex AI Server
1 / 5
| Specification | Details |
|---|---|
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Processor | Feiteng S5000C-64C |
| Memory | Each CPU supports 8 memory channels, each channel supports 1 DIMM, for a total of 16 DDR5 DIMM slots DDR5 ECC RDIMM/URDIMM server memory, with memory frequency support of 4000MHz. The single capacity is 16GB, 32GB, 64GB, and supports a maximum of 1.0TB. |
| GPU | Supports 8/10 Full Height Full Length Dual Width (DW-FHFL) or Full Height Full Length Single Width (SW-FHFL) GPU cards |
| Local Storage | Onboard SATA controller, 6Gb/s Expand SAS solution, support 12Gb/s SAS HBA, support RAID 0/1/10, Expanded RAID solution, supports 12Gb/s RAID, RAID0/1/5/6/50/60, supports Cache supercapacitor protection, provides RAID state migration, RAID configuration memory and other functions |
| Networking | Integrate 1 1GbE RJ45 BMC IPMI management network port. Optional 4x1GbE/2x10GbE/2x25GbE OCP3.0 network card or PCIe standard network card. Optional 100/200G NIC/IB PCI standard card. |
| PCLs | Standard support for 12 PCIe full height and full length standard slots (PCIe Gen5 X16 @ Switch) Standard configuration supports 1 PCIe full height full-length standard slot (PCIe Gen4 X16 @ CPU) Supports one standard OCP 3.0 X8 slot (based on self-developed network card supporting NCSI) Optional support for 2 built-in PCIe half height and half length standard slots (PCIe Gen5 X8 @ CPU) |
| Fan | Standard configuration includes 8 8056 high-speed fans, hot swappable, N+1 redundancy. Support optional rear fan module. |
| Power | Supports 2-4 CRPS power modules, supports 1+1/3+1/2+2 redundancy, and supports hot swapping. Optional 220VAC/240VDC input power module, customized optional 336VDC/-48VDC input power module. Optional 1600W/2000W/2400W/2700W power. |
| Manage | Support IPMI, SOL, KVM Over IP, virtual media and other management features, power control, leakage monitoring BMC hardware module (daughter card) Aspeed2600 |
| Safety | Liquid cooling leakage monitoring component (standard) Lock the upper cover of the chassis (standard) Chassis Open Cover Intrusion Detection (optional) Front panel with key lock (customized). TCM (optional) |
| Port | Front end: 2 USB 3.0 ports, 1 VGA port. Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 1GbE management network port |
| Size | Rack mounted 4U 3.5" hard drive chassis size: width 448mm x height 175mm x depth 822mm (including hanging ears 842mm). 2.5" hard drive chassis size: width 448mm x height 175mm x depth 772mm (including hanging ears 792mm) |
| Weight | The net weight of the full configuration is about 55KG, and the full configuration includes accessories and packaging of about 80KG (reference weight, different configurations may vary) |
| Operation temperature | Standard operating temperature: 5°C - 35°C (in the absence of direct sunlight) Extended operating temperature: 5°C - 40°C (limited configuration meets) Transportation and storage temperature: -40°C - 65°C |
| Humidity | Working humidity: 30% - 80% (non condensing) Storage humidity: 5% - 93% (non condensing) |
| Operating system support | KylinOS, OpenEuler OS, UOS, etc. Other open-source operating systems |
A development based on AMD processing chip suitable for large model training, inference, HPC, rendering and other applications. The flagship AI liquid cooling server for rendering and other applications supports 8-10 full height and full length GPU cards, which can meet all kinds of large-scale AI business needs such as computing centers, industry markets, and the Internet.
Adopting cold plate liquid cooling effectively improves system computing performance and increases overall energy efficiency by 20%+. Intelligent adjustment of fan speed based on the temperature of thermal critical components, significantly reducing noise while saving energy. Support 40°C liquid supply, low flow rate and low flow resistance design, achieve efficient cooling, effectively reduce energy consumption and carbon emissions of data centers.
Supports 8-10 full height and full length GPU cards. Supports 16 DDR5 memories with a maximum frequency of 4000MHz to meet the training and inference needs of AI large models.
Decoupling design of hardware modules enables flexible configuration of computing, storage, and networking. Supports flexible selection of 3.5" or 2.5" hard drive modules, supporting up to 24 U.2 NVMe. Supports up to 15 standard PCIe Gen5 expansion slots (including 2 built-in slots). Support OCP NIC 3.0 network expansion.
System components designed with redundancy and hot swapping, supporting tool-free disassembly and assembly. Integrated intelligent management chip, supporting open management platforms like IPMI2.0, Redfish, SNMP, etc. Supports remote KVM, virtual media, critical component monitoring, and abnormal alarms.
