Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Processor | Feiteng S5000C-64C |
| Memory | Each CPU supports 8 memory channels, each channel supports 1 DIMM, for a total of 16 DDR5 DIMM slots DDR5 ECC RDIMM/URDIMM server memory, with memory frequency support of 4000MHz. Single capacity: 16GB, 32GB, 64GB, up to 1.0TB. |
| GPU | Supports 8/10 Full Height Full Length Dual Width (DW-FHFL) or Full Height Full Length Single Width (SW-FHFL) GPU cards |
| Local Storage | Onboard SATA controller, 6Gb/s Expand SAS solution, support 12Gb/s SAS HBA, RAID 0/1/10. Expanded RAID solution supports 12Gb/s RAID 0/1/5/6/50/60, Cache supercapacitor protection. |
| Networking | Integrate 1 1GbE RJ45 BMC IPMI management network port. Optional 4x1GbE/2x10GbE/2x25GbE OCP3.0 network card or PCIe standard network card. Optional 100/200G NIC/IB PCI standard card. |
| PCIe Slots | 12 PCIe full height and full length standard slots (PCIe Gen5 X16). 1 PCIe Gen4 X16. 1 OCP 3.0 X8 slot. Optional 2 built-in PCIe Gen5 X8 slots. |
| Fan | 8 8056 high-speed fans, hot swappable, N+1 redundancy. Support optional rear fan module. |
| Power | Supports 2-4 CRPS power modules, 1+1/3+1/2+2 redundancy, hot swapping. Optional 1600W/2000W/2400W/2700W power. |
| Management | IPMI, SOL, KVM Over IP, virtual media, power control, leakage monitoring. BMC hardware module Aspeed2600. |
| Safety | Liquid cooling leakage monitoring component (standard). Chassis lock and Open Cover Intrusion Detection (optional). TCM support. |
| Ports | Front: 2 USB 3.0, 1 VGA. Rear: 1 serial, 2 USB 3.0, 1 VGA, 1 RJ45 management port. |
| Size & Weight | 4U Rack mounted. Width 448mm x Height 175mm x Depth 822mm. Net weight about 55KG (Full configuration). |
| Environment | Operating: 5°C - 35°C. Humidity: 30% - 80% (non-condensing). |
| Operating System | KylinOS, OpenEuler OS, UOS, and other open-source operating systems. |
A development based on AMD processing chip suitable for large model training, inference, and HPC. This flagship AI liquid cooling server supports 8-10 full height and full length GPU cards, meeting large-scale AI business needs for computing centers and internet infrastructure.

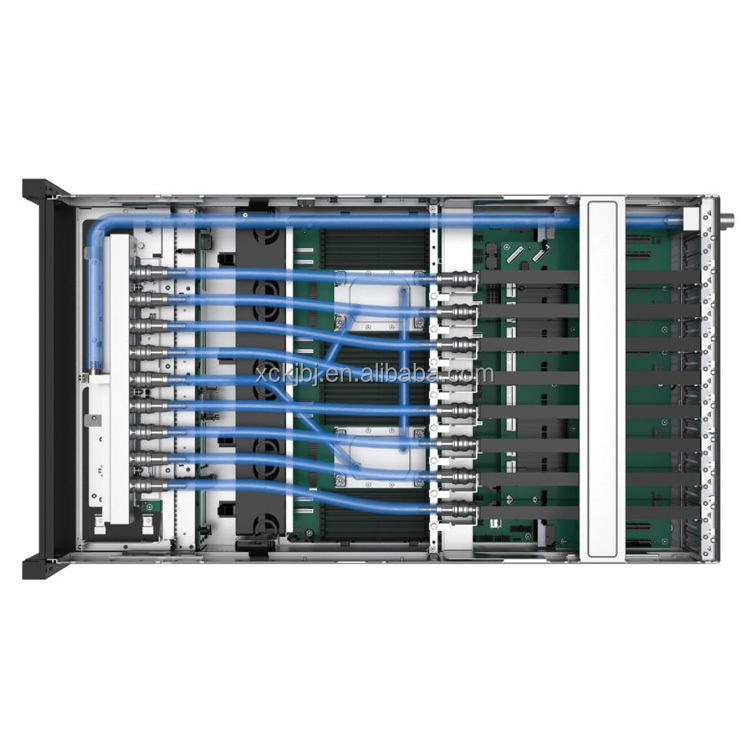

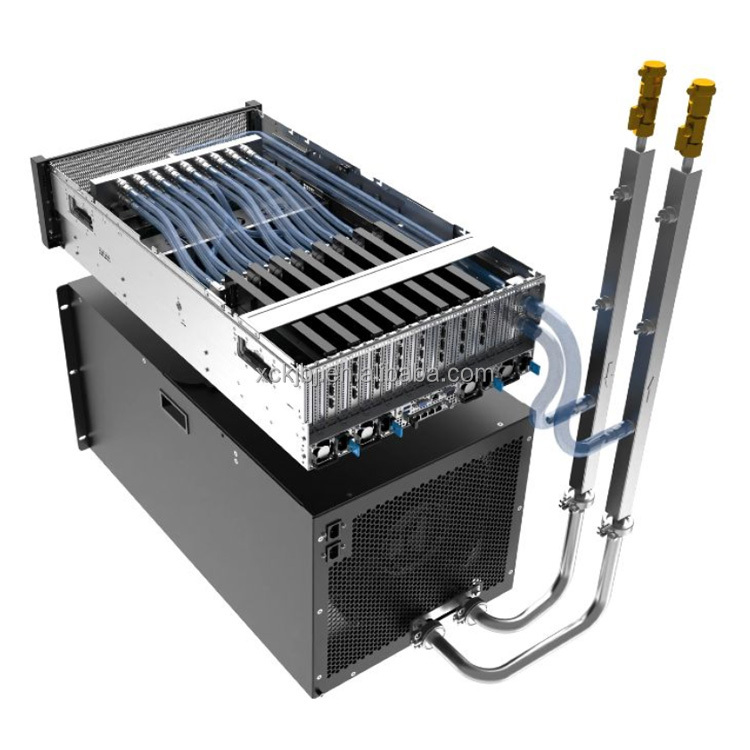

Adopting cold plate liquid cooling effectively improves system computing performance and increases overall energy efficiency by 20%+. Intelligent fan speed adjustment based on temperature reduces noise and saves energy.
Supports 8-10 full height and full length GPU cards and 16 DDR5 memories with a maximum frequency of 4000MHz to meet training and inference needs of AI large models.
Decoupling design of hardware modules enables flexible configuration of computing, storage, and networking. Supports 3.5" or 2.5" hard drive modules and up to 15 standard PCIe Gen5 expansion slots.
Key components designed with redundancy and hot swapping. Integrated intelligent management chip supports IPMI2.0, Redfish, and SNMP protocols for comprehensive remote monitoring.
