Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 4U Artificial Intelligence Server |
| Processor | Supports 2 Huawei Kunpeng 920 Max/920 Smart modules, TDP 185W |
| Memory | Supports DDR4 The 920 Max/920 Smart memory granule board is attached to the Kunpeng module, and the memory capacity module is fixed |
| Local Storage | Supports 8/12 3.5 storage disk slots (compatible with 2.5), Supports 8 U.2 NVMe, Supports 2 M.2 slots (2280/22110, optional SATA/NVMe) |
| Networking | Support native extension of Kunpeng module with 4 100G, 8 1G, or 16 10/25G networks; Support other domestic PCIe/OCP network standard cards |
| PCLs | 15 standard PCIe slots (2 built-in) 1 OCP3.0 slot |
| GPU | Supports 8/10 dual width full-size GPU cards, Supports 12 single width full-size GPU cards |
| I/O interface | Front end: VGA * 1, USB 3.0 * 2; Rear: VGA * 1, COM * 1, USB 3.0 * 2 |
| Manage | Onboard Huawei Hi1711BMC module, supporting IPMI, KVM, virtual media and other functions; Rear I/O supports one RJ45 1Gbps dedicated management network port |
| Safety | Optional support for TCM |
| Operation temperature | Operating temperature: 5 ºC -35 ºC; Storage temperature: -40 ºC -65 ºC |
| Humidity | Working humidity: 8% to 90% (without condensation); Storage humidity: 5% to 95% (non condensing) |
| Operating system support | Euler, Kirin, Other |

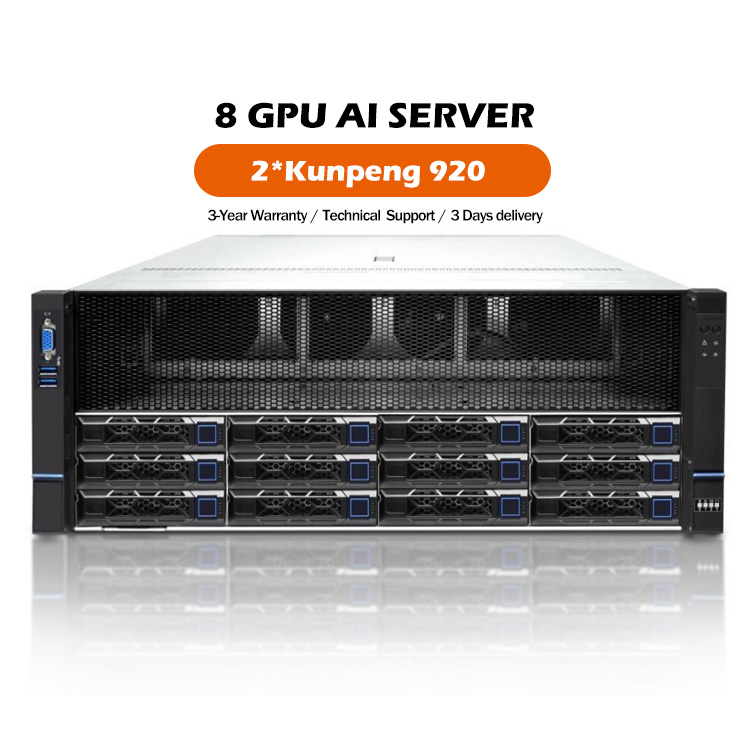

This customized rack mounted 4U-8GPU artificial intelligence AI server supports two Kunpeng 920 Max/920 Smart modules, 8/10 dual width full-size GPU cards, or 12 single width full-size GPU cards, providing over 1TB of video memory capacity. It supports various GPU cards based on the Ascend 910/310 chip, as well as other domestic GPU cards. This product is suitable for training large language models, fine-tuning models, high concurrency inference, and building large knowledge bases HPC, Application scenarios such as simulation rendering.
Supports 2 Kunpeng 920 Max (64/48 cores) or 920 Smart (32/24 cores) modules. Module integrated DDR4-2933 memory (64~256GB). Supports 8/10 dual width full-size GPU cards or 12 single width full-size GPU cards.
Support the expansion of 4 100G or 16 10/25G networks, as well as other domestic PCIe/OCP network standard cards. Supports up to 15 standard PCIe slots and one OCP3.0 slot. Supports 8/12 3.5-inch (compatible with 2.5) SAS/SATA disks, 8 U.2 NVMe disks, and 2 M.2 disks.
Through rigorous signal and thermodynamic simulation and measurement, fearless of any environmental test. Select ultra-low loss boards and highly reliable components for long-term stability. Integrated BMC module developed based on the latest code framework with rich functions and convenient management.
