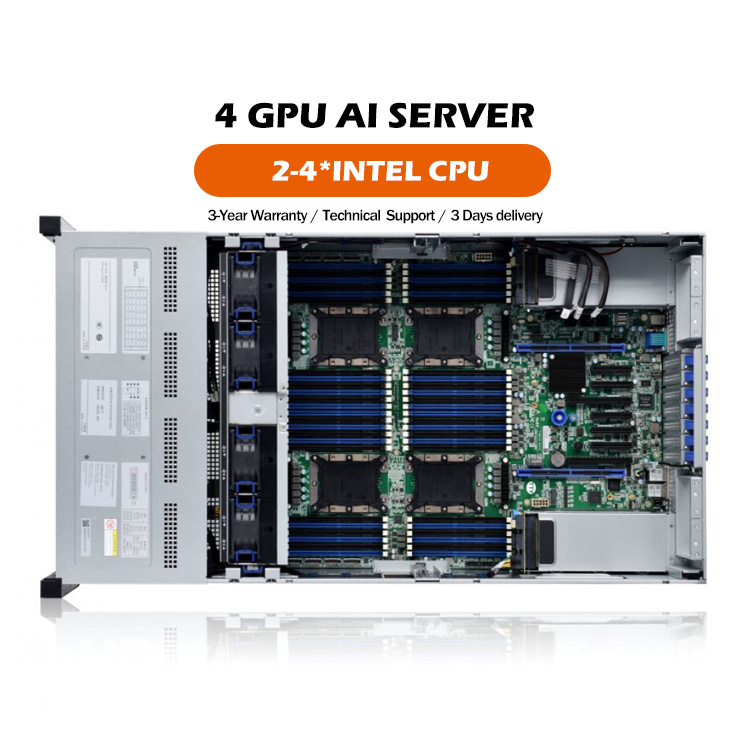

Vertex AI Server
1 / 5
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Processor |
2/4 first generation Intel® Xeon® Scalable processor, 5100/6100/8100 series 2/4 second-generation Intel® Xeon® Scalable processor, 5200/6200/8200 series TDP 85-205W, adopting Cross bar full interconnection |
| Chipset | Intel® C621 |
| Memory |
48 DDR4 DIMM slots, totaling 24 memory channels Supports 48 DDR4 RDIMMs/LRDIMs/NVDIMs, with a maximum speed of 2933MT/S Supports 24 Intel DCPMMs with a maximum speed of 2666MT/S Single capacity 8GB, 16GB, 32GB, 64GB, 128GB, 256GB, 512GB Maximum support for 18.0TB system memory (requires specific CPU model and Intel DCPMM) |
| Local Storage | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller, supporting multiple specifications of hard disk configurations, with hot swappable hard disks: 24 3.5-inch hard drives can be configured, 50 2.5-inch hard drives can be configured, 16 2.5-inch NVMe hard drives can be configured (14 hot swappable and 2 non hot swappable). Supports built-in 2 PCIe M.2 (80/110mm), 2 SATA DOM, and 1 Micro SD card |
| Networking | Integrate 2 1GbEs, optional 2x1GbE/4x1GbE/2x10GbE/4x10GbE/2x25GbE/2x40GbE network daughter cards and various standard PCIe network cards |
| PCLs |
Up to 15 PCI Express 3.0 expansion slots Can be configured with 4*300W GPU cards (full height, full length, dual width slots) Can be configured with 6*75W GPU cards (4 full height and 2 half height and half length) |
| Fan | 8*8038 system fans, N+1 redundant fans, supporting hot swapping |
| Power |
2, 3, or 4 power modules, supporting 1+1, 2+1, 2+2, 3+1 redundancy, supporting hot broadcasting Optional 220V AC/240V DC/336V DC/-48V DC input Optional 800W/1300W/1600W power |
| Manage | Onboard BMC management module, supporting remote management and control, such as IPMI2.0, KVM Over IP, SOL, SNMP, etc; Original factory management software that can deploy multiple hosts simultaneously or perform specific deployments according to planned schedules. It can monitor server CPU, memory, and other resource usage rates, as well as collect bulk logs; The data center management platform enables remote multifunctional advanced management; Optional LCD management module; |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection, locked chassis top cover |
| Port | Front end: 1 D-SubVGA, 2 USB 3.0, 1 LCD MiniUSB Rear: 1 D-SubVGA, 4 USB 3.0, 1 RJ45 management network port, 2 RJ45 Ethernet ports |
| Size | Rack mounted 4U, width 448mm x height 175mm x depth 840mm (excluding hanging ears 820mm) |
| Weight | The net weight of the full configuration is about 45KG, and the full configuration includes guide rails, accessories, and packaging of about 70KG |
| Operation temperature | Standard operating temperature: 5 ºC to 35 ºC (in the absence of direct sunlight) Extended operating temperature: 5 ºC to 40 ºC (limited configuration meets) Transportation and storage temperature: -40 ºC to 65 ºC |
| Humidity | Working humidity: 10% to 80% (non condensing) Storage humidity: 5% to 95% (non condensing) |
| Operating system support | Microsoft Windows Server, Microsoft Hyper-V Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Fedora, Solaris, Oracle Linux, FreeBSD, VMware ESXi, Citrix Xen Server |
The all-new Intel Xeon Scalable Processor (Skylake & Cascade Lake) has made a qualitative leap in processor performance, bus bandwidth, memory bandwidth, and other aspects. It also provides super specifications in terms of supported PCIE quantity, hard disk quantity, network expansion, and other aspects, making it suitable for high-end enterprise critical applications such as databases, ERP, High performance parallel computing, virtualization and other application environments.
