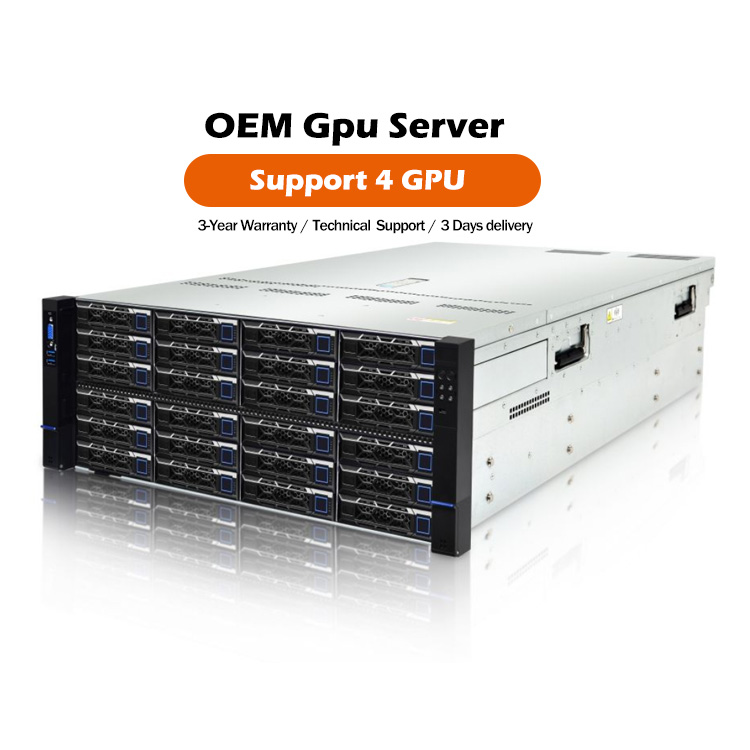

Vertex AI Server
1 / 5
The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | Custom/OEM |
| Form Factor | 4U rack server |
| Processor |
- 2/4 first generation Intel® Xeon® Scalable processor, 5100/6100/8100 series - 2/4 second-generation Intel® Xeon® Scalable processor, 5200/6200/8200 series TDP 85-205W, adopting Cross bar full interconnection |
| Chipset | Intel® C621 |
| Memory |
48 DDR4 DIMM slots, totaling 24 memory channels Supports 48 DDR4 RDIMMs/LRDIMs/NVDIMs, with a maximum speed of 2933MT/S Supports 24 Intel DCPMMs with a maximum speed of 2666MT/S Single capacity 8GB up to 512GB; Maximum support for 18.0TB system memory |
| Local Storage |
Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA/RAID controller 24 x 3.5-inch hard drives or 50 x 2.5-inch hard drives or 16 x 2.5-inch NVMe hard drives Supports built-in 2 PCIe M.2 (80/110mm), 2 SATA DOM, and 1 Micro SD card |
| Networking | Integrate 2 1GbEs, optional network daughter cards (1GbE/10GbE/25GbE/40GbE) and standard PCIe cards |
| PCIe Slots | Up to 15 PCI Express 3.0 expansion slots; Supports up to 4x300W GPU cards or 6x75W GPU cards |
| Fan | 8*8038 system fans, N+1 redundancy, supporting hot swapping |
| Power | 2, 3, or 4 power modules; 1+1, 2+1, 2+2, 3+1 redundancy; Optional 800W/1300W/1600W |
| Manage | Onboard BMC module, IPMI2.0, KVM Over IP, SOL, SNMP; Remote multifunctional advanced management |
| Safety | Optional TPM/TCM security module, chassis open cover intrusion detection |

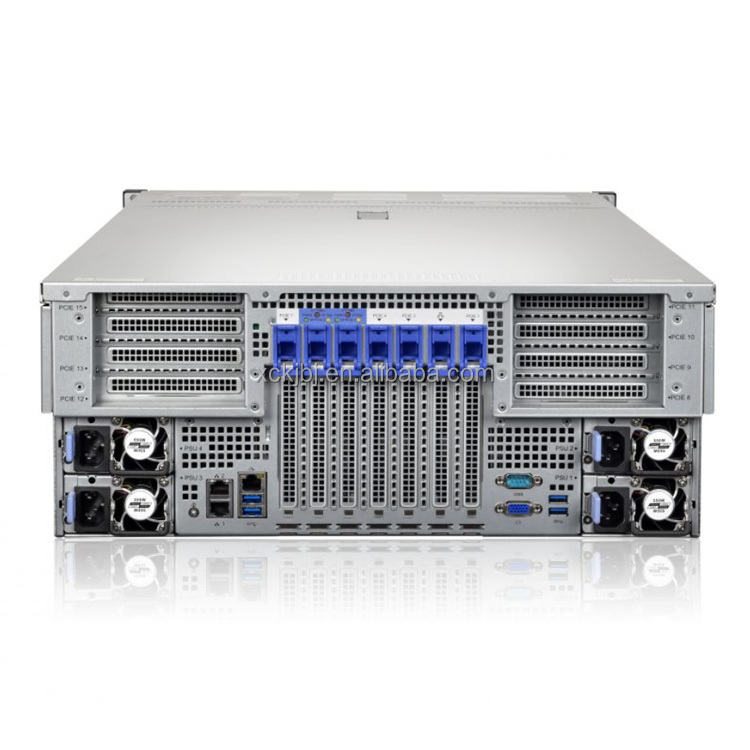

| Port | Front: 1 VGA, 2 USB 3.0, 1 LCD MiniUSB; Rear: 1 VGA, 4 USB 3.0, 1 Management RJ45, 2 Ethernet RJ45 |
| Size | Width 448mm x Height 175mm x Depth 840mm |
| Weight | Net weight full configuration about 45KG; Gross weight with packaging about 70KG |
| Operation temp | Standard: 5°C to 35°C; Storage: -40°C to 65°C |
The Intel Xeon Scalable Processor (Skylake & Cascade Lake) series has made a qualitative leap in performance, bus bandwidth, and memory bandwidth. It is suitable for high-end enterprise critical applications such as databases, ERP, high performance parallel computing, and virtualization.
The company is specialized in computer hardware sales, network platform construction, and IT maintenance. We provide products from industry leaders such as Dell, HP, IBM, Lenovo, and Huawei. With a sound sales network system and stable supply channels, we provide excellent technical support to customers worldwide.
We operate on the philosophy of "Customer first, honest and pragmatic, service first," aiming to strengthen product quality and thoughtful service to win long-term trust. We are a reliable system integrator and solution provider for enterprises and institutions.
